AIE Test Harness¶
AIE (AI Engine) Test Harness is designed to assist AIE application designers in verifying and benchmarking their designs on the Versal platforms such as the VCK190 and VEK280, with the ease of a software simulator. Most importantly, AIE Test Harness allows the developers to conduct testing across diverse host systems, including x86 and ARM, from various development environments like Matlab and Python.
This test harness is designed to provide a very simple and intuitive transition from the AIE simulation environment to testing user AIE graph on hardware. With the test harness, AIE graphs running in simulation can be taken to hardware in just a few minutes and with only a few minor modifications required.
AIE Test Harness Virtualization¶

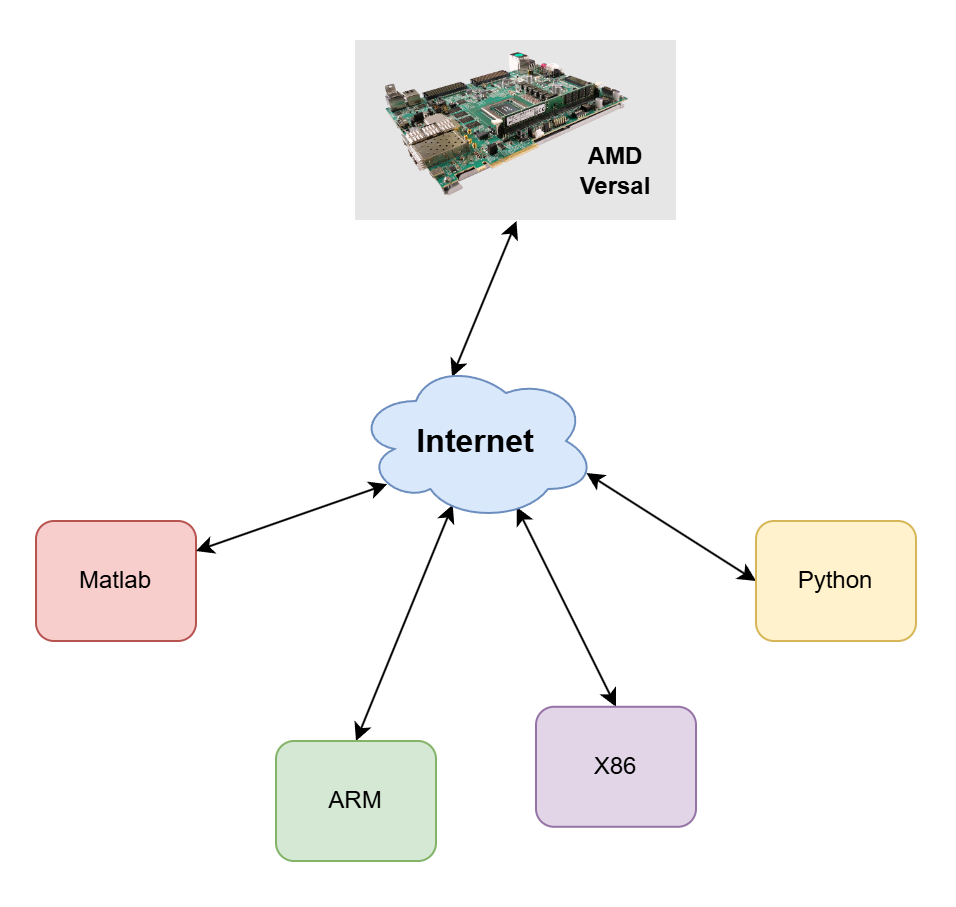

The virtualization feature of the test harness offers AIE designers a seamless and efficient testing experience by abstracting away the complexities of network communications and hardware specifics, such as device controls. This feature allows designers to focus entirely on their AIE designs without needing to interact directly with the underlying hardware. By leveraging the client APIs available in C++, Python, and MATLAB, designers can create testbenches that operate entirely on local hosts. This setup ensures that all interactions with the test harness server are handled virtually, eliminating the need for manual data exchanges or server modifications during testing. As a result, the virtualization feature streamlines the testing process, making it more accessible and less time-consuming for developers.
Test Harness Server¶
The server application, included with the repository, runs continuously on the Versal board and accepts connections from multiple clients on a first-come, first-served basis. Once a connection is established, the server processes client requests to perform a series of actions for testing. These actions include initializing the device with AIE designs provided by the clients, running the AIE graphs and DMA with client-supplied data, and waiting for transactions to complete before sending the results back to the clients. If required, the server can also dump AIE event traces and transmit them to the clients. After completing these tasks, the server cleans all user data and resets the board, ensuring a fresh start for subsequent testing sessions.
Test Harness Client APIs¶
With the test harness, AIE designers can focus solely on their designs without worrying about network communications or hardware details, such as device controls. The testbench is created using the test harness client APIs, which are available in C++, Python, or MATLAB. These APIs empower designers to efficiently manage the testing process by allowing them to connect to the server, load the AIE design, and run tests in transactions. Designers can also wait for transactions to complete or set a timeout, measure performance, verify functionalities, and request AIE event traces. Additionally, the APIs provide the capability to disconnect from and reset the board, ensuring a streamlined and user-friendly testing experience.
Testing Mode¶
There are two useful testing modes named functional testing mode and performance testing mode.
Functional Testing Mode¶
In the functional testing mode, it aims to verify functional correctness of the implementation on hardware with a large datasets provided by the users. In this mode, all user-provided data are transferred between the DDR and the AIE with a proper buffering. In the this mode, stalls may be introduced due to the bandwidth limitation when accessing DDR. Hence, the measured performance is not representative of the maximum potential throughput of the graph.
Performance Testing Mode¶
In the performance testing mode, the DMA engine for performance testing is designed to allow a maximum throughput on the PLIO interfaces, ensuring that the data transfer between AIE and PL isn’t artificially stalled by the DMA channels and thereby allowing accurate performance testing on the hardware.
Test Harness Pre-built XSA¶
For each supported platform e.g., VCK190 and VEK280, pre-built xsa is provided along with the release of this repository, and is used as a platform (with necessary hardware information) on which the designers compile the AIE graph. This allows skipping the v++ link step after compiling the libadf.a and directly go to the v++ package step to generate the hardware boot image. This saves the most time-consuming part of the build process for on-board tests and allows to fast and predictable iterations. The major component of the XSA is the DMA designed on the PL, which feeds data to AIE application or fetch data from AIE application via AXI-streams. It allows the users to skip the time-consuming v++ link stage and directly go to v++ package stage to generate the final .xclbin file for on-board tests.
On VCK190, the precompiled .xsa implements a PL DMA engine with 72 independent AXI stream channels. 36 channels send data from DDR to AIE and 36 channels receive data from AIE to DDR. On VEK280, it has 32 independent AXI stream channels that 16 channels can send data from DDR to AIE and 16 channels can receive data from AIE to DDR. For both of the DMA engines, they are designed to allow a maximum throughput on the PLIO interfaces (128-bit @ 312.5MHz), ensuring that the AIE graph isn’t artificially stalled by the DMA channels and thereby allowing accurate performance testing on the hardware.
