vvas_xfilter¶

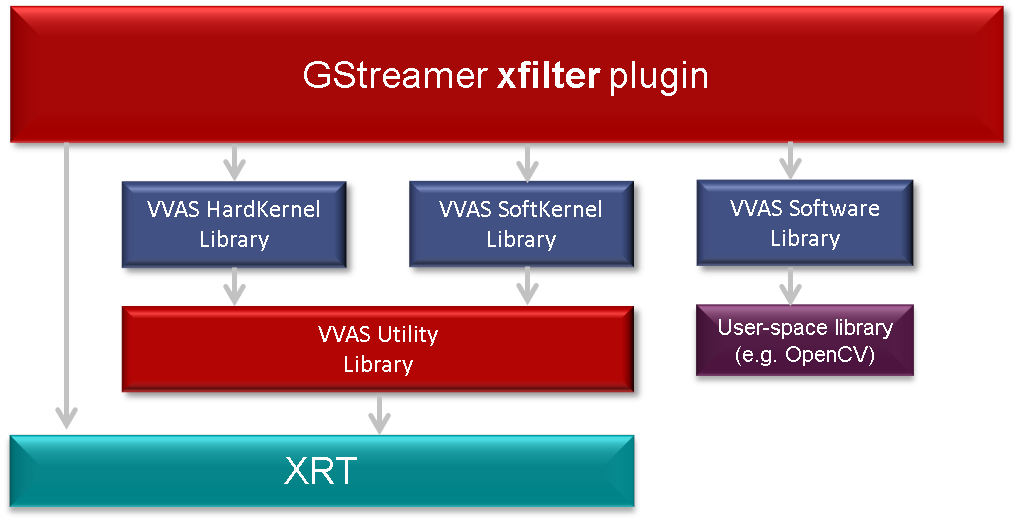

The GStreamer vvas_xfilter is an infrastructure plug-in that is derived from GstBaseTransform. It supports one input pad and one output pad. The vvas_xfilter efficiently works with hard-kernel/soft-kernel/software (user-space) acceleration software library types as shown in the following figure.

../../../_images/xfilter_plugin_arch.png

This plug-in can operate in the following three modes.

Passthrough: Useful when the acceleration software library does not need to alter the input buffer.
In-place: Useful when the acceleration software library needs to alter the input buffer.
Transform: In this mode, for each input buffer, a new output buffer is produced.

You must set the mode using the JSON file. Refer to JSON File Schema for information related to the kernels-config property.

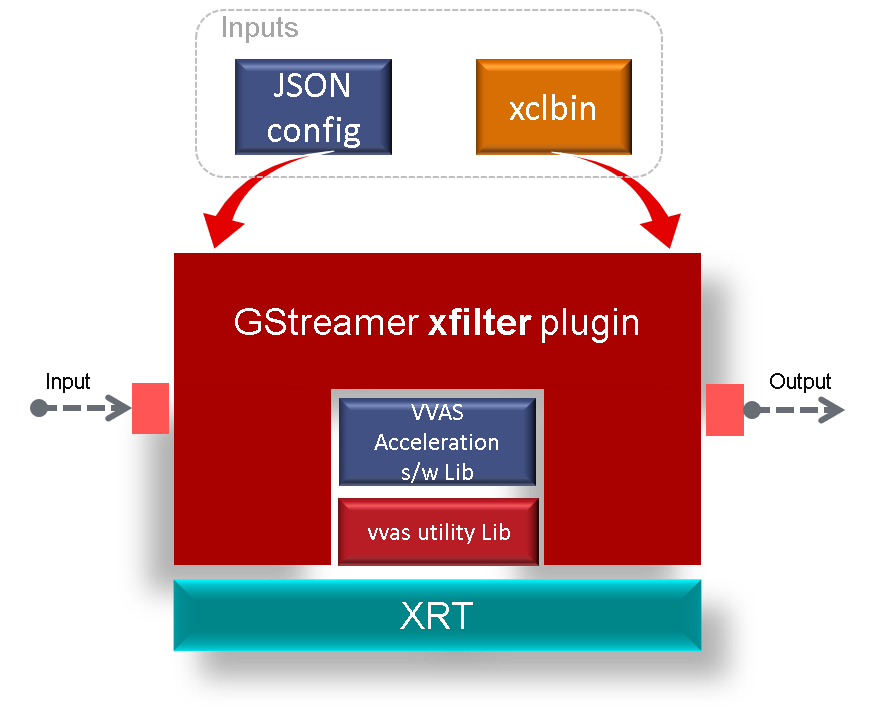

The vvas_xfilter plug-in takes configuration file as one of the input properties, kernels- config. This configuration file is in JSON format and contains information required by the kernel. During initialization, the vvas_xfilter parses the JSON file and performs the following tasks:

Finds the VVAS acceleration software library in the path and loads the shared library.
Understands the acceleration software library type and prepares the acceleration software library handle (VVASKernel) to be passed to the core APIs.

Input and Output¶

The vvas_xfilter accepts the buffers with the following color formats on input GstPad and output GstPad.

GRAY8
NV12
BGR
RGB
YUY2
r210
v308
GRAY10_LE32
ABGR
ARGB

The formats listed are the Xilinx IP supported color formats. To add other color formats, update the vvas_kernel.h and vvas_xfilter plug-ins.

Control Parameters and Plug-in Properties¶

The following table lists the GObject properties exposed by the vvas_xfilter. Most of them are only available in PCIe based platforms.

Table 18: GObject Properties

Property Name	Platforms Supported	Type	Range	Default	Description
dynamic-config	PCIe and Embedded	String	N/A	Null	JSON formatted string contains kernel specific configuration for run time changes
dev-idx	PCIe only	Integer	0 to 31	0	Device used for kernel processing, xclbin download.
kernels-config	PCIe and Embedded	String	N/A	NULL	JSON configuration file path based on VVAS acceleration software library requirements. Refer to the JSON File Schema
sk-cur-idx	PCIe only	Integer	0 to 31	0	Softkernel current index to be used for executing job on device.

JSON Format for vvas_xfilter Plug-in¶

The following table provides the JSON keys accepted by the GStreamer vvas_xfilter plug-in.

Table 19: Root JSON Object Members

JSON Key	Item	Item Description
xclbin-location	Description	The location of the xclbin that is used to program the FPGA device.
	Value type	String
	Mandatory or optional	Conditionally mandatory: If the VVAS acceleration software library is developed for hard-kernel IP and soft-kernel, then the xclbin-location is mandatory. If the VVAS acceleration software library is developed for a software library (e.g., OpenCV), then the xclbin-location is not required
	Default value	NULL
vvas-library-repo	Description	This is the VVAS libraries repository path to look for acceleration software libraries by the VVAS GStreamer plug-in.
	Value type	String
	Mandatory or optional	Optional
	Default value	/usr/lib
element-mode	Description	GStreamer element mode to operate. Based on your requirement, choose one of the following modes: Passthrough: In this mode, element does not want to alter the input buffer. Inplace: In this mode, element wants to alter the input buffer itself instead of producing new output buffers. Transform: In this mode, element produces a output buffer for each input buffer.
	Value type	String
	Mandatory or optional	Mandatory
kernel	Description	A Kernel JSON object provides information about an VVAS acceleration software library configuration.
	Value type	Kernel JSON Object
	Mandatory or optional	Mandatory
	Default value	None
	Minimum value	1
	Maximum value	10
	Object members	Refer to Kernel JSON Object

The information in the following table is specific to the kernel chosen.

Table 20: Kernel JSON Object Members

JSON Key	Item	Item Description
library-name	Description	The name of the VVAS acceleration software library to be loaded by the VVAS GStreamer plug-ins. The absolute path of the kernel library is formed by the pre-pending vvas-library-repo path.
	Value type	String
	Mandatory or optional	Mandatory
	Default value	None
kernel-name	Description	The name of the IP/kernel in the form of <kernel name>:<instance name>
	Value type	String
	Mandatory or optional	Optional
	Default value	None
kernel-access-mode	Description	Mode in which IP/Kernel is to be accessed. “shared” or “exclusive”
	Value type	String
	Mandatory or optional	Optional
	Default value	“shared”
config	Description	Holds the configuration specific to the VVAS acceleration software library. VVAS GStreamer plug-ins do not parse this JSON object, instead it is sent to the acceleration software library.
	Value type	Object
	Mandatory or optional	Optional
	Default value	None
softkernel	Description	Contains the information specific to the soft-kernel. This JSON object is valid only for the PCIe based platforms.
	Value type	Object
	Mandatory or optional	Mandatory if kernel library is written for soft-kernel.
	Default value	None
	Members	Not required for embedded platforms.

For vvas_xfilter implementation details, refer to vvas_xfilter source code

Example JSON Configuration Files¶

JSON File for a Hard Kernel¶

The following JSON file uses vvas_xfilter to control multi-scaler IP (hard-kernel). The acceleration software library accessing the register map is libvvas_xcrop.so.

{
 "xclbin-location": "/run/media/mmcblk0p1/dpu.xclbin",
 "vvas-library-repo": "/usr/lib/",
 "element-mode": "passthrough",
 "kernel": {
   "kernel-name": "v_multi_scaler:{v_multi_scaler_1}",
   "library-name": "libvvas_xcrop.so",
   "config": {}
 }
}
