Work with Networks in Vitis AI Docker

This module introduces how to use networks and scripts from Vitis AI model zoo to do following tasks in Vitis AI docker:

  • prepare dataset

  • evaluate pretrained float model and quantized model, including test images and test accuracy

  • retrain the model

  • use Vitis AI toolchain to generate files for deployment

We will use Caffe RefineDet network as example in this tutorial. More examples with other framework will be added in the future.

Prerequisite

  • Internet connection is avaliable

  • Vitis AI docker succesfully starts

  • Conda environment ‘vitis-ai-caffe’ is enabled by conda activate vitis-ai-caffe

  • ZCU104 board is up and running with Vitis AI release image

Download Network Package from Vitis AI Model Zoo

Vitis AI model zoo provides a varity of networks pre-trained in Caffe/TensorFlow/DarkNet, covering different applications including but not limited to image classification, ADAS/AD, video surveillance and etc. Several mainstream networks are further optimized using Xilinx Optmizer to achieve much higher performance.

In each network packages, float models and quantized models are provided together with training and evaluation scripts. We use Caffe RefineDet (Model No. 10-13 in the Model Zoo) to build people detection application.

RefineDet is an one-stage objection detection network that could achieve better accuracy than two-stage networks before publication but still maintains comparable speed performance of one-stage networks.

RefineDet can be seen as an improved version of SSD with addition of anchor refinement module (ARM), object detection module (OBM) and transfer connection block (TCB) to improve accuracy.

The detailed introduction about network itself is beyond the scope of this module, please refer to the original paper.

Get RefineDet Model Package

After the git clone the whole repository, go to the module 5 folder (Vitis-In-Depth-Tutorial/tree/v1.3/Machine_Learning/Introduction/03-Basic/Module_5) and run sh get_network.sh to download RefineDet network package, which is trained with people subset selected from COCO2014 and optimized to reduce 96% of the computation complexity (GOP).

If no error occurs, the model folder will be like below

cf_refinedet_coco_360_480_0.96_5.08G_1.3/
|-- code
|   |-- gen_data
|   |   |-- convert_coco2voc_like.py
|   |   |-- create_data.py
|   |   |-- gen_quantize_data_list.py
|   |   `-- get_dataset.sh
|   |-- test
|   |   |-- demo.py
|   |   |-- evaluation.py
|   |   |-- evaluation_py2.py
|   |   |-- quantized_test.sh
|   |   |-- quantize.sh
|   |   |-- test.py
|   |   `-- test.sh
|   `-- train
|       |-- solver.prototxt
|       `-- train.sh
|-- data
|   |-- demo_list.txt
|   |-- labelmap.prototxt
|   `-- test_name_size.txt
|-- float
|   |-- quantize.prototxt
|   |-- test.prototxt
|   |-- trainval.caffemodel
|   `-- trainval.prototxt
|-- quantized
|   |-- deploy.caffemodel
|   |-- deploy.prototxt
|   |-- DNNC
|   |   `-- deploy.prototxt
|   |-- quantized_test.prototxt
|   |-- quantized_train_test.caffemodel
|   `-- quantized_train_test.prototxt
`-- readme.md

Go into the folder cf_refinedet_coco_360_480_0.96_5.08G_1.3/ and follow the steps described below to start the real works.

Prepare Customized COCO Dataset

COCO is a large-scale object detection, segmentation, and captioning dataset including 330K images (>200K labeled) in 91 object types, which are used widely in ML/AI researches. For detailed information about the dataset, please refer to COCO official website.

If you would like to retrain the network, evaluate mAP before directly deploying the network on board, the COCO dataset used by this network needs to be prepared with necessary process.

Related scripts are provided in folder code/gen_data:

gen_data/
|-- convert_coco2voc_like.py
|-- create_data.py
|-- gen_quantize_data_list.py
`-- get_dataset.sh

Use sh get_dataset.sh to download and generate the dataset which only contains one class person seleted from COCO2014. If you already have COCO2014 in the hard drive, please comment the download code in get_dataset.sh and put COCO2014 files into folder cf_refinedet_coco_480_360_0.96_5.08G/data for simplicity, in which the expected file structure is shown as below:

coco2014/
      |->train2014/
      |->val2014/
      |->instances_train2014.json
      |->instances_val2014.json

If the script finishes without error, the generated LMBD files and images will have following structure:

data/
├── coco2014
│   ├── Annotations
│   ├── Images
│   ├── instances_train2014.json
│   ├── instances_val2014.json
│   ├── train2014.txt
│   ├── train_image2anno.txt
│   ├── val2014.txt
│   └── val_image2anno.txt
├── coco2014_lmdb
│   ├── train2014_lmdb
│   └── val2014_lmdb
├── demo_list.txt
├── labelmap.prototxt
├── link_480_360
│   ├── train2014_lmdb -> ../../data/coco2014_lmdb/train2014_lmdb
│   └── val2014_lmdb -> ../../data/coco2014_lmdb/val2014_lmdb
└── test_name_size.txt

If the script finishes with out error, the md5sum values of train and val mdb files are as below:

| File Name | Md5sum Value | | :—————————————-: | :——————————: | | data/coco2014_lmdb/train2014_lmdb/data.mdb | 39891c36467f22498a98cbd431e43657 | | data/coco2014_lmdb/val2014_lmdb/data.mdb | e99d3ad2ce3d5ffc864fa8d41b01d4b0 |

From Official RefineDet to Model Zoo Version

The model zoo package provides Xilinx version RefineDet with modifications on model struture to make it compatible with Vitis AI, and also network pruning optimization by Vitis AI optimizer.

The Journey from Original RefineDet documents the steps in detail of how to start from original model and arrive at the baseline version (not optimized, 125GOPs) of that in the model zoo package (optimized, 5GOPs model used in this example, 25GOPs and 10GOPs models also proivded in the model zoo). The pretrained baseline model is provided here and could be used in following parts.

In advanced section, there will be a seperate module to documents the workflow of AI optimizer and the steps to prune the model from baseline to optimized version.

Work with Vitis AI Toolchain

Vitis AI toolchain is used to quantize float 32bit network model into INT8 model with optimization and then compile it into instructions which run efficiently on the DPU in FPGA. The toolchain could support Caffe, DarkNet and TensorFlow framework.

Comprehensive introduction of Vitis AI toolchain can be found in Vitis AI User Documentation .Here we only use RefineDet as example to demostrate Caffe workflow. The following steps are based on network package from model zoo (cf_refinedet_coco_480_360_0.96_5.08G), but it could be easily used with baseline model with some changes on file paths in scripts, prototxt and commands.

Evaluate Model

In the network package, both float model and quantized model are provided together with evaluation script to run single images or test mAP over whole validation dataset. These scripts work with baseline model as well.

Run single image

Go to folder cf_refinedet_coco_360_480_0.96_5.08G_1.3/code/test.

Modify the image path in line 19 of the demo.py according to the need and run the inference on single image with command python demo.py. The output image will be stored in output/res_output.jpg.

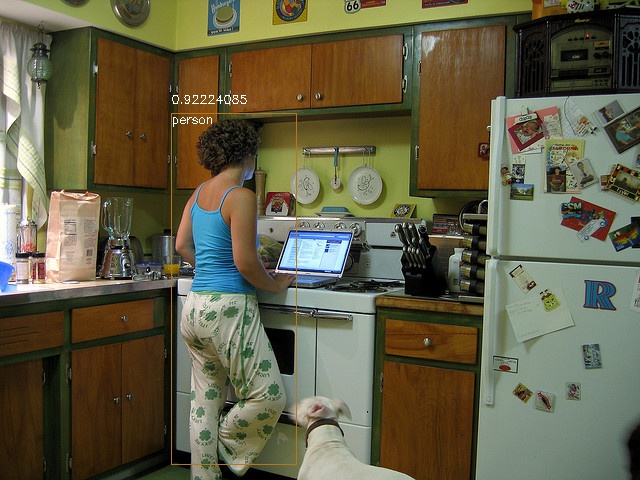

Inference result

Test mAP

The network package provides scripts to varify the mAP of the pretrained network (both float model and quantized model). To use the scripts, please make sure the evaluation dataset are correctly prepared and file paths in function ‘parse_args’ (line 54 to 85 in test.py) are modified according to your environment.

By default, the script will evaluate float model (trainval.caffemodel and test.prototxt) stored under folder cf_refinedet_coco_360_480_0.96_5.08G_1.3/float.

Use command python test.py to run the evaluation which will takes around 30~60 minutes depending on your CPU/GPU capability. If no error occurs, it will display the mAP result as below:

evaluate 21634 images
person AP: 0.6120358325758232
mAP: 0.6120358325758232

It’s also easy to evaluate quantized model in the same way, just change the prototxt file and caffemodel file in the script into quantize_test.prototxt and quantize_train_test.caffemodel. After evaluation is finished the result will be displayed.

evaluate 21634 images
person AP: 0.6112254774886302
mAP: 0.611225477489

The float baseline model could also be evaluated using the same script, just change the prototxt file and caffemodel file into refinedet_baseline.prototxt and refinedet_baseline.caffemodel in folder cf_refinedet_coco_baseline_125G.

Deploy Model

Quantize Float Model

The ready-to-use quantized models are already provided in the package. If you would like to try the quantization steps by yourself, detailed explaination could be found in Vitis AI User Documentation .

For Caffe example, the vai_q_caffe will be used to execute quantization with following commands:

vai_q_caffe quantize -model trainval.prototxt \
                     -weights trainval.caffemodel \
                     -calib_iter 20 \
                     -auto_test  \
                     -test_iter 100 \
                     -output_dir quantization \
                     -gpu 0 \
                     -ignore_layers arm_priorbox \
                     -keep_fixed_neuron

Plesse note that the ‘arm_priorbox’ (which concats all previous priorbox layer together) needs to be ignored because it will not run on DPU and quantization will affect bounding box results. Generated quantized model will be stored in the folder spcified by -output_dir, which in this case is quantization.

Please note that from Vitis AI 1.3 the xmodel is also used on DPUCZDX8G, thus ‘keep_fixed_neuron’ flag is needed when quantizing caffe network.

I0112 02:46:12.526528  3810 net_test.cpp:308] Test Results:
I0112 02:46:12.526546  3810 net_test.cpp:309]     Test net output #0: detection_eval = 0.611557
I0112 02:46:12.527979  3810 net_test.cpp:450] Test Done!
I0112 02:46:13.067780  3810 vai_q.cpp:360] Start Deploy
I0112 02:46:13.100937  3810 vai_q.cpp:368] Deploy Done!
--------------------------------------------------
Output Quantized Train&Test Model:   "quantization/quantize_train_test.prototxt"
Output Quantized Train&Test Weights: "quantization/quantize_train_test.caffemodel"
Output Deploy Weights: "quantization/deploy.caffemodel"
Output Deploy Model:   "quantization/deploy.prototxt"

Using the same step and command, we could also generate quantized model for baseline model and use in next step compilation. Please make sure right models are used as you wish and output files are saved properly.

Compile Quantized Model

To deploy quantized model on board, we use vai_c_caffe to generate xmodel file by compiling deploy.prototxt and deploy.caffemodel. Here we could use files in both folder cf_refinedet_coco_480_360_0.96_5.08G/quantized (provided in the network package) or quantization (generated by ourselves, please check where you put it).

Before compilation, in the any deploy.prototxt, please make sure all the layers after the layer block odm_conf are deleted as they are not needed for deployment and compilation .

Run below command in the quantized model folder to compile the model in to elf file which targeting DPU on ZCU104 released board image

vai_c_caffe --prototxt    deploy.prototxt \
            --caffemodel  deploy.caffemodel \
            --arch        /opt/vitis_ai/compiler/arch/DPUCZDX8G/ZCU104/arch.json \
            --output_dir  board_file_zcu104_5G \
            --net_name    refinedet_5G \

Please note that you could also specify the path for prototxt, caffemodel and output_dir as you wish.

During compilation, the compiler will give following output which will show useful informations including kernel name, input tensor names, input tensor shapes, output tensor names and output tensor shapes. With save_kernel option used, these informations are saved in refinedet_kernel.info in board_file_zcu104_5G.

**************************************************
* VITIS_AI Compilation - Xilinx Inc.
**************************************************
[INFO] Namespace(inputs_shape=None, layout='NCHW', model_files=['deploy.caffemodel'], model_type='caffe', out_filename='board_file_zcu104_5G/refinedet_5G_org.xmodel', proto='deploy.prototxt')
[INFO] caffe model: deploy.caffemodel
[INFO] caffe model: deploy.prototxt
[INFO] parse raw model     :100%|███████████████████████████████████████████████████████████████████████████████████████████████| 167/167 [00:00<00:00, 2777.05it/s]
[INFO] infer shape (NCHW)  :100%|███████████████████████████████████████████████████████████████████████████████████████████████| 168/168 [00:00<00:00, 23427.19it/s]
[INFO] infer shape (NHWC)  :100%|███████████████████████████████████████████████████████████████████████████████████████████████| 168/168 [00:00<00:00, 20118.86it/s]
[INFO] generate xmodel     :100%|███████████████████████████████████████████████████████████████████████████████████████████████| 168/168 [00:00<00:00, 12205.84it/s]
[INFO] generate xmodel: /workspace/Vitis-In-Depth-Tutorial/Machine_Learning/Introduction/03-Basic/Module_5/cf_refinedet_coco_360_480_0.96_5.08G_1.3/float/quantization/board_file_zcu104_5G/refinedet_5G_org.xmodel
[UNILOG][INFO] The compiler log will be dumped at "/tmp/vitis-ai-user/log/xcompiler-20210112-034036-4505"
[UNILOG][INFO] Target architecture: DPUCZDX8G_ISA0_B4096_MAX_BG2
[UNILOG][INFO] Compile mode: dpu
[UNILOG][INFO] Debug mode: function
[UNILOG][INFO] Target architecture: DPUCZDX8G_ISA0_B4096_MAX_BG2
[UNILOG][INFO] Graph name: deploy, with op num: 360
[UNILOG][INFO] Begin to compile...
[UNILOG][INFO] Total device subgraph number 7, DPU subgraph number 1
[UNILOG][INFO] Compile done.
[UNILOG][INFO] The meta json is saved to "/workspace/Vitis-In-Depth-Tutorial/Machine_Learning/Introduction/03-Basic/Module_5/cf_refinedet_coco_360_480_0.96_5.08G_1.3/float/quantization/board_file_zcu104_5G/meta.json"
[UNILOG][INFO] The compiled xmodel is saved to "/workspace/Vitis-In-Depth-Tutorial/Machine_Learning/Introduction/03-Basic/Module_5/cf_refinedet_coco_360_480_0.96_5.08G_1.3/float/quantization/board_file_zcu104_5G/refinedet_5G.xmodel"
[UNILOG][INFO] The compiled xmodel's md5sum is cfa5b17ccea8932186ae1153edb0ef7d, and been saved to "/workspace/Vitis-In-Depth-Tutorial/Machine_Learning/Introduction/03-Basic/Module_5/cf_refinedet_coco_360_480_0.96_5.08G_1.3/float/quantization/board_file_zcu104_5G/md5sum.txt"

After compilation finished, elf file, kernel info file and kernel graph files are generated and saved.

board_file_zcu104_5G/
├── md5sum.txt
├── meta.json
├── refinedet_5G_org.xmodel
└── refinedet_5G.xmodel

The ‘refinedet_5G_org.xmodel’ is the float xmodel generated by compiler and ‘refinedet_5G.xmodel’ is the compiled xmodel for DPU execution.

Using the same step and command in the folder containing the deploy model for baseline model, we could also generate elf file for baseline model

board_file_zcu104_125G/
├── md5sum.txt
├── meta.json
├── refinedet_125G_org.xmodel
└── refinedet_125G.xmodel

Test on Board

Before starting this part, please make sure:

  • the zcu104 board is running with Vitis AI 1.3 release board image and Vitis AI Library/VART are installed correctly based on previouse modules

  • host and zcu104 board are in same network. In our example, board IP (TARGET_IP) is 10.176.18.133

Transfer Compiler Output to Board

Tranfer the compiler output board_file_zcu104_5G and board_file_zcu104_125G to board and place it under with scp command

scp -r /PATH_TO/board_file_zcu104_5G root@10.176.18.133:~/

scp -r /PATH_TO/board_file_zcu104_125G root@10.176.18.133:~/

Connect to Board

ssh root@10.176.18.133

enter password root to connect to the board.

Go to refinedet example application folder

cd /home/root/Vitis_AI/examples/Vitis-AI-Library/samples/refinedet

Copy the xmodel files to Vitis AI model folder

The Vitis AI library already provide pre-built models but we will copy our compiled xmodel to the model folders with names required by Vitis AI library.

cp board_file_zcu104_5G/refinedet_5G.xmodel /usr/share/vitis_ai_library/models/refinedet_pruned_0_96/refinedet_pruned_0_96.xmodel

cp board_file_zcu104_125G/refinedet_125G.xmodel /usr/share/vitis_ai_library/models/refinedet_baseline/refinedet_baseline.xmodel

Run the application

  • Performance test

    For example we could test performance in 10s with 4 threads with following command

    ./test_performance_refinedet refinedet_pruned_0_96 test_performance_refinedet.list -t 4 -s 10

    root@xilinx-zcu104-2020_2:~/Vitis_AI/examples/Vitis-AI-Library/samples/refinedet# ./test_performance_refinedet refinedet_pruned_0_96 test_performance_refinedet.list -t 4 -s 10
WARNING: Logging before InitGoogleLogging() is written to STDERR
I0110 18:53:33.324429  8773 benchmark.hpp:176] writing report to <STDOUT>
I0110 18:53:33.451941  8773 benchmark.hpp:203] waiting for 0/10 seconds, 4 threads running
I0110 18:53:43.452201  8773 benchmark.hpp:211] waiting for threads terminated
FPS=216.327
E2E_MEAN=18394.5
DPU_MEAN=15711.6

    ./test_performance_refinedet refinedet_baseline test_performance_refinedet.list -t 4 -s 10

    root@xilinx-zcu104-2020_2:~/Vitis_AI/examples/Vitis-AI-Library/samples/refinedet# ./test_performance_refinedet refinedet_baseline test_performance_refinedet.list -t 4 -s 10
WARNING: Logging before InitGoogleLogging() is written to STDERR
I0110 18:43:53.120203  7733 benchmark.hpp:176] writing report to <STDOUT>
I0110 18:43:53.551745  7733 benchmark.hpp:203] waiting for 0/10 seconds, 4 threads running
I0110 18:44:03.552002  7733 benchmark.hpp:211] waiting for threads terminated
FPS=18.0589
E2E_MEAN=217547
DPU_MEAN=214647

From comparison we can see huge performance improvement between baseline model and pruned model which is brought by AI optimizer. The non-linear FPS improvement ratio vs compression ratio is because of

  • network efficiency on DPU decreases at some extent after network size decreases

  • DPU time percentage significantly decreases in whole application time. Software processing and scheduling overhead increase will affect end-to-end FPS performance

In the other module in advanced section, we will introduce how to use AI optimizer to achieve network optimization to reduce network from 125G to 5G.

Summary

In this module, we use a Caffe detection network (RefineDet) introduce following items:

  • how to use pre-trained model from Vitis AI model zoo, generate dateset and test it with provided scripts

  • how to start from original network, make necessary modification, conduct trainning and get to the version provide in the model zoo

  • how to quantize and compile the model with ready-to-use Vitis AI toolchain inside docker

  • how to deploy the network with Vitis AI library and run on the board

Hope you enjoy it and let’s move to next module .
