Introduction¶

In this section of the tutorial, you will learn how to create a new AI Engine application project from a template and run through the Emulation-AIE process.

Step 1. Create a new AI Engine Application Project¶

Open the Vitis 2021.1 IDE if you have closed it. You can use the same workspace as the previous stage or create a new one.
On the Welcome Page, click on Create Application Project or click File → New → Application Project.
On the platform page, select the base_pfm_vck190 platform you just created in last step. If you do not use the same workspace from last step, click on Add and select the folder base_pfm_vck190/export to add the platform into this workspace.
Set the application name as simple_application and select ai_engine for the processor.
Keep the default setting for the next page and click Next.
In the Template page, select the Simple template. Click Finish to create the application project.

Note: In the description of the template it says that the template works only for AI Engine Emulation and SW (x86) simulation. In the following steps you will learn how to make it work on hardware.

The template imports two folders:

src contains the sources for the kernels and the graph.
data contains the data for the simulation input (input.txt) and the golden reference for the output (golden.txt).

Open the file project.h to see the graph. You can see that the graph (simpleGraph) has one input and one output and implements two kernels with the same function. The output of the first kernel feeds the second one.

first = kernel::create(simple);
second = kernel::create(simple);
connect< window<128> > net0 (in, first.in[0]);
connect< window<128> > net1 (first.out[0], second.in[0]);
connect< window<128> > net2 (second.out[0], out);

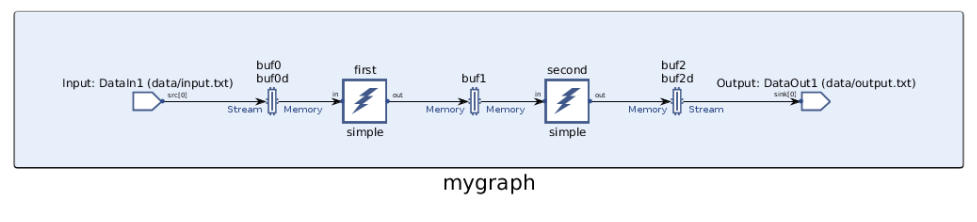

This is the representation of the graph.

missing image

Open the file kernels/kernels.cc to see what function will be implemented in the kernels. You can see that this is a simple operation which is doing the sum of the real and imaginary parts of the input to create the real part of the output and the subtraction the real and imaginary part of the input to create the imaginary part of the output.

void simple(input_window_cint16 * in, output_window_cint16 * out) {
  cint16 c1, c2;
  for (unsigned i=0; i<NUM_SAMPLES; i++) {
    window_readincr(in, c1);
    c2.real = c1.real+c1.imag;
    c2.imag = c1.real-c1.imag;
    window_writeincr(out, c2);
  }
}

Step 2. Build the Project and Run Through Emulation-AIE¶

Click on the arrow next to the hammer icon and make sure that Emulation-AIE is selected.
Click on the hammer icon to build the project.
To run System C simulation (called Emulation-AIE), right-click on the simple_application project and select Run as -> Launch AIE Emulator from the pop-up menu.

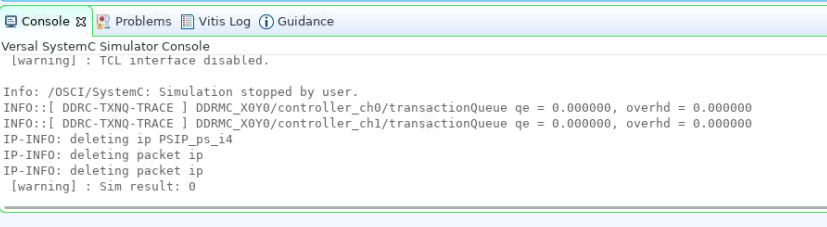

You should see the simulation running successfully in the console. The output data is written to the file Emulation-AIE/aiesimulator_output/data/output.txt. You can compare the file output.txt with the golden.txt file. The output data should match the golden value.

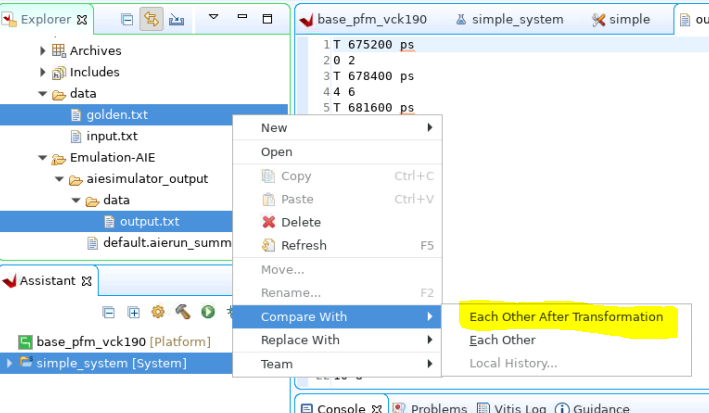

Select the files simple/data/golden.txt and simple/Emulation-AIE/aiesimulator_output/data/output.txt and right-click on one of them and then click Compare With > Each Other After Transformation.

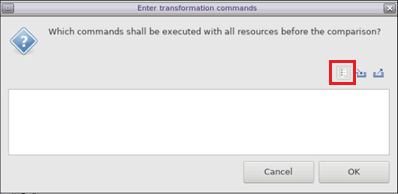

Then click on the left-most icons on the right (Pre-defined Filters).

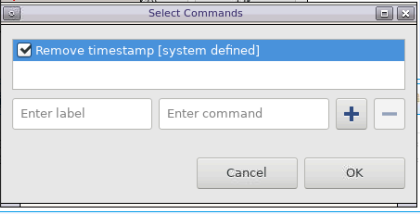

Select Remove timestamp and click OK.
You can see that a grep command will be executed to remove the timestamps from the output file. Click OK.

A pop-up window should appear saying that the two files match which means that the graph is behaving as expected. You can move forward and integrate the graph in the full system.

Return to Step 1 — Go to Step 3
