Integration with TigerGraph

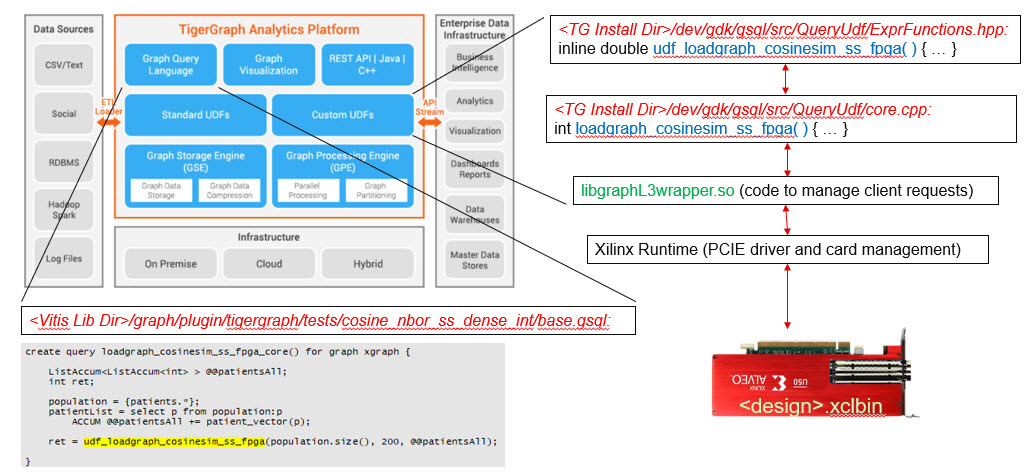

This section explains how L3 Vitis Graph Library function is ported into TigerGraph SW framework, and finally running the application on Alveo by calling GSQL query from TigerGraph SW.

_images/fig_TG_top.jpg

TigerGraph User-Defined Functions (UDF)

You can create your own custom GSQL function as UDF in TigerGraph using C++. You can define a top level function in <tigergraph.root.dir>/dev/gdk/gsql/src/QueryUdf/ExprFunctions.hpp. It is this UDF mechanism that enables porting of Xilinx Graph Library IP into TigerGraph SW. All the files necessary to make this porting is included in the Graph Library, as shown below in plugin/tigergraph directory. Important files/directories are:

  • install.sh: is a script to automate the porting. It updates the ExprFunctions.hpp with the top level functions of Graph Library defined in udf/xilinxRecomEngine.hpp.hpp

  • plugin/tigergraph/examples/synthea: has all supporting files (shell scripts, GSQL scripts, UDF) that you can use to test the newely created UDFs

  • plugin/tigergraph/examples/synthea/1000_patients/csv: has all the patient data set used for Cosine Similarity query testing

Next Step

If you want to create your own accelerator function to run on Alveo, please see the the next section.
