#include "cxxopts.hpp"
#include "test_utils.h"
#include "hrx_amdxdna.h"
#include "hrx_runtime.h"
#include <chrono>
#include <cstdint>
#include <cstdio>
#include <cstdlib>
#include <cstring>
#include <fstream>
#include <iostream>
#include <memory>
#include <stdexcept>
#include <string>
#include <tuple>
#include <type_traits>
#include <utility>
#include <vector>

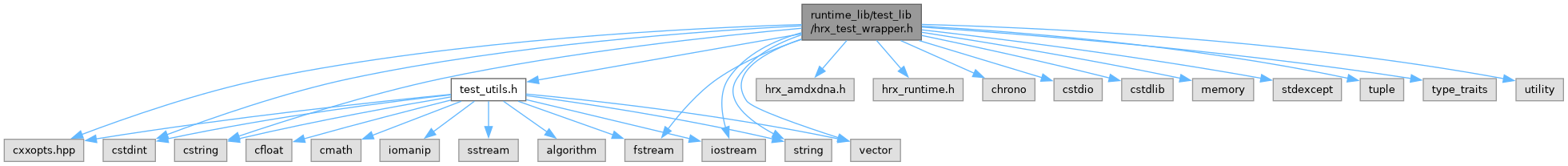

Include dependency graph for hrx_test_wrapper.h:

Classes
class	hrx_test::Context
class	hrx_test::Buffer
struct	hrx_test::LoadedKernel
struct	hrx_test::ChainRun
struct	args
struct	InBuf< T >
struct	OutBuf< T >

Namespaces
namespace	hrx_test

Functions
void	hrx_test::hrx_check (hrx_status_t status, const char *what)
std::vector< uint8_t >	hrx_test::control_code_from_elf (const std::vector< uint8_t > &d)
std::vector< uint8_t >	hrx_test::read_transaction (const std::string &insts_path)
LoadedKernel	hrx_test::load_kernel (const std::string &xclbin_path, const std::string &insts_path, const std::string &kernel_name)
double	hrx_test::dispatch_once (const LoadedKernel &lk, const std::vector< Buffer * > &bindings)
double	hrx_test::dispatch_chain (const std::vector< ChainRun > &runs)
void	hrx_test::reject_unsupported_features (int trace_size, bool enable_ctrl_pkts)
void	hrx_test::report_timing (double total, double mn, double mx, int n_iters)
struct args	parse_args (int argc, const char *argv[])
template<typename T>
InBuf< T >	make_in (int volume, void(init)(T , int))
template<typename T>
OutBuf< T >	make_out (int volume, void(init)(T , int))
template<typename Verify, typename TOut, typename... TIns>
int	setup_and_run_aie (Verify verify_results, std::tuple< InBuf< TIns >... > inputs, OutBuf< TOut > output, struct args myargs, bool enable_ctrl_pkts=false)
template<typename T1, typename T2, typename T3, void()(T1 , int) init_bufIn1, void()(T2 , int) init_bufIn2, void()(T3 , int) init_bufOut, int()(T1 , T2 , T3 , int, int) verify_results>
int	setup_and_run_aie (int IN1_VOLUME, int IN2_VOLUME, int OUT_VOLUME, struct args myargs, bool enable_ctrl_pkts=false)
template<typename T1, typename T3, void()(T1 , int) init_bufIn1, void()(T3 , int) init_bufOut, int()(T1 , T3 *, int, int) verify_results>
int	setup_and_run_aie (int IN1_VOLUME, int OUT_VOLUME, struct args myargs, bool enable_ctrl_pkts=false)

Function Documentation

◆ make_in()

template<typename T>

InBuf< T > make_in	(	int	volume,
		void(*	init )(T *, int) )

Definition at line 446 of file hrx_test_wrapper.h.

◆ make_out()

template<typename T>

OutBuf< T > make_out	(	int	volume,
		void(*	init )(T *, int) )

Definition at line 459 of file hrx_test_wrapper.h.

◆ parse_args()

struct args parse_args	(	int	argc,
		const char *	argv[] )

inline

Definition at line 406 of file hrx_test_wrapper.h.

References test_utils::add_default_options(), args::do_verify, args::instr, args::kernel, args::n_iterations, args::n_warmup_iterations, parse_args(), test_utils::parse_options(), args::trace_file, args::trace_size, args::verbosity, and args::xclbin.

Referenced by parse_args().

◆ setup_and_run_aie() [1/3]

template<typename T1, typename T2, typename T3, void(*)(T1 *, int) init_bufIn1, void(*)(T2 *, int) init_bufIn2, void(*)(T3 *, int) init_bufOut, int(*)(T1 *, T2 *, T3 *, int, int) verify_results>

int setup_and_run_aie	(	int	IN1_VOLUME,
		int	IN2_VOLUME,
		int	OUT_VOLUME,
		struct args	myargs,
		bool	enable_ctrl_pkts = false )

Definition at line 581 of file hrx_test_wrapper.h.

References hrx_test::dispatch_once(), args::do_verify, hrx_test::Context::get(), args::instr, args::kernel, hrx_test::load_kernel(), args::n_iterations, args::n_warmup_iterations, hrx_test::reject_unsupported_features(), hrx_test::report_timing(), hrx_test::Context::stream, args::trace_size, args::verbosity, and args::xclbin.

◆ setup_and_run_aie() [2/3]

template<typename T1, typename T3, void(*)(T1 *, int) init_bufIn1, void(*)(T3 *, int) init_bufOut, int(*)(T1 *, T3 *, int, int) verify_results>

int setup_and_run_aie	(	int	IN1_VOLUME,
		int	OUT_VOLUME,
		struct args	myargs,
		bool	enable_ctrl_pkts = false )

Definition at line 656 of file hrx_test_wrapper.h.

References hrx_test::dispatch_once(), args::do_verify, hrx_test::Context::get(), args::instr, args::kernel, hrx_test::load_kernel(), args::n_iterations, args::n_warmup_iterations, hrx_test::reject_unsupported_features(), hrx_test::report_timing(), hrx_test::Context::stream, args::trace_size, args::verbosity, and args::xclbin.

◆ setup_and_run_aie() [3/3]

template<typename Verify, typename TOut, typename... TIns>

int setup_and_run_aie	(	Verify	verify_results,
		std::tuple< InBuf< TIns >... >	inputs,
		OutBuf< TOut >	output,
		struct args	myargs,
		bool	enable_ctrl_pkts = false )

Definition at line 473 of file hrx_test_wrapper.h.

References hrx_test::dispatch_once(), args::do_verify, hrx_test::Context::get(), OutBuf< T >::init, args::instr, args::kernel, hrx_test::load_kernel(), args::n_iterations, args::n_warmup_iterations, hrx_test::reject_unsupported_features(), hrx_test::report_timing(), hrx_test::Context::stream, args::trace_size, args::verbosity, OutBuf< T >::volume, and args::xclbin.
