Debugging

Address Editor Verification

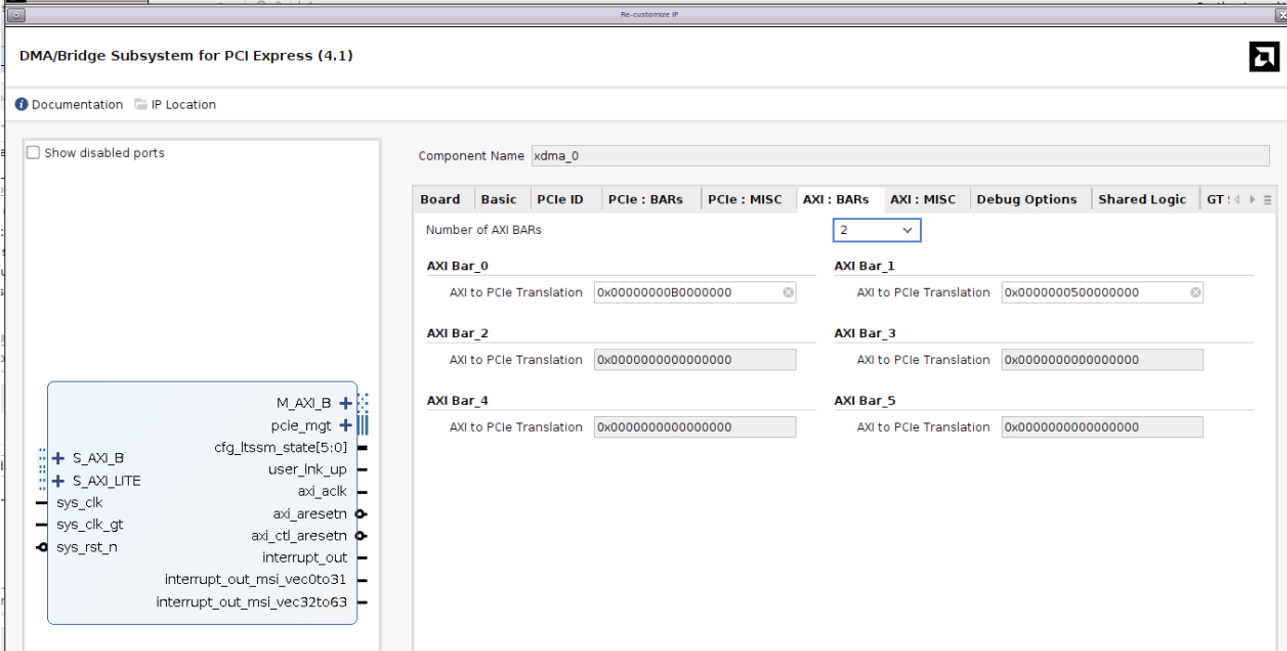

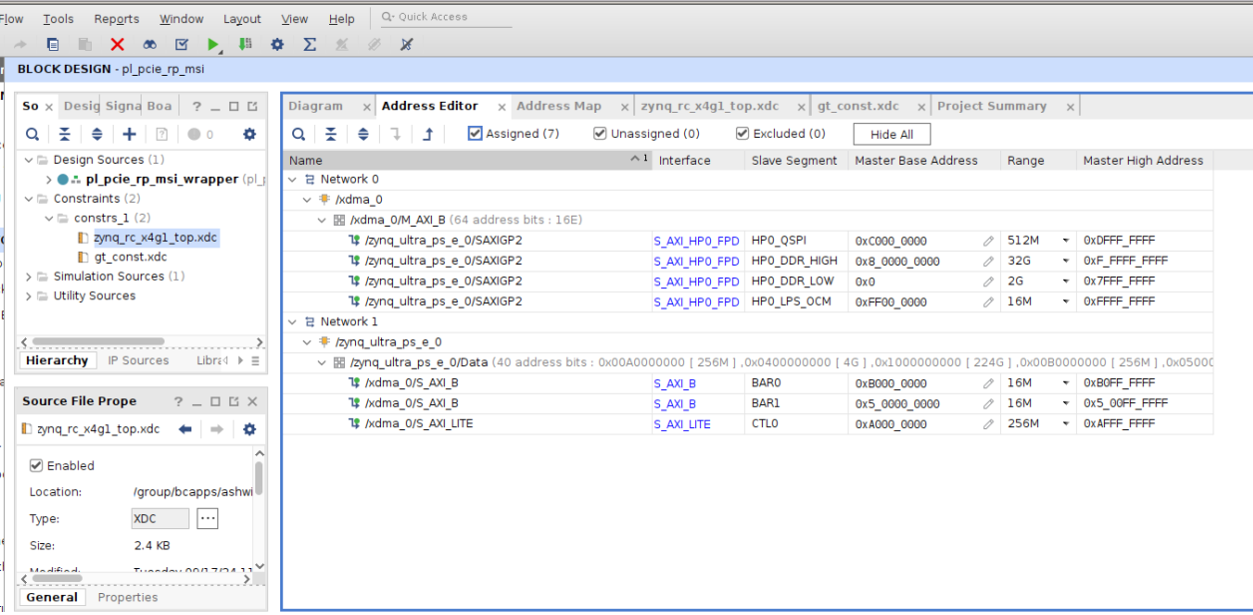

  • Make sure the address editor for S_AXI_B for Bar 0 and Bar 1 matches with the AXI to PCIe translation field tab in the Vivado GUI.

../../../_images/img_1.png ../../../_images/img_2.png

Command Register Writes

  • Make sure to write to Command Registers as shown below:

EP Command Register

xsdb% mwr -force 0xa0100004 0x7

RP Command Register

xsdb% mwr -force 0xa0000004 0x7

Bus Number Verification

  • Confirm Secondary Bus and Primary Bus Numbers at offset 0x18 as 0x10100.

xsdb% mrd 0xa0000018

Status/Control Register Check

  • Confirm the Bridge Enable bit in the RP Status/Control Register at Offset 0x148 is 0x1.

xsdb% mrd 0xa0000148

MSI-X Capability Access

  • The MSI-X capability offset may vary by device. Use lspci -vvv on the endpoint to identify this offset. For instance:

Capabilities: [b0] MSI-X: Enable- Count=8 Masked-
    Vector table: BAR=0 offset=00003000
    PBA: BAR=0 offset=00002000

  • Here the MSI-X capability is at offset 0xb0.

  • To access the MSI-X Vector Table, compute: [BAR Address (0xB000000) + Vector Table Offset (0x00003000)].

  • Read the MSI-X capability at offset 0xb0 in xsdb:

xsdb% mrd -force 0xa01000b0

Output:

A01000B0:   00070011

  • Vector table can be read in xsdb:

xsdb% mrd -force 0xa01000b4

Output:

A01000B4:   00003000

  • PBA Offset can be read in xsdb:

xsdb% mrd -force 0xa01000b8

Output:

A01000B8:   00002000

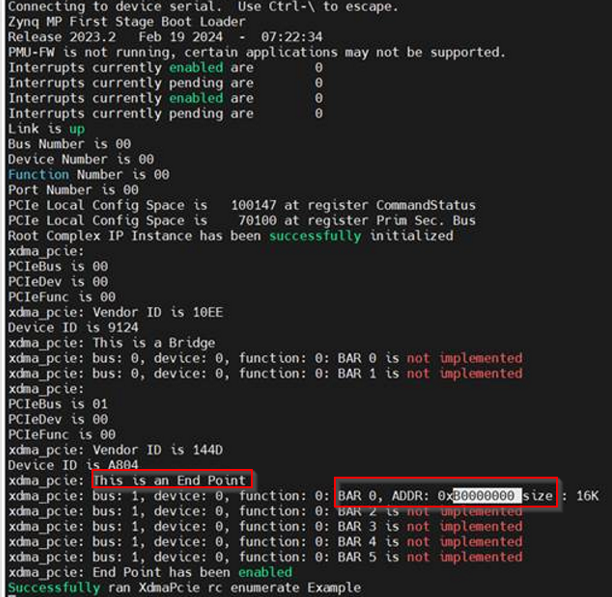

Endpoint BAR Read/Write

  • The Endpoint BAR read/write operations can be done as follows:

../../../_images/img_3.png

Reading the EP BAR

xsdb% mrd -force 0xB0003000

Output:

B0003000:   00000000

Writing to the EP BAR

xsdb% mwr -force 0xb0003000 0xdeadbeef
xsdb% mrd -force 0xB0003000

Output:

B0003000:   DEADBEEF
