Debugging Linux Applications

The Vitis IDE provides a familiar environment for debugging Linux applications for a target platform. This section covers the following Linux application debug features:

  • Setting breakpoints

  • Stepping through program execution

  • Viewing program variables, memory contents, and the stack

The following diagram illustrates the general Linux application debug flow. The Xilinx System Debugger an integrated debugger supporting Zynq®-7000 SoC, Zynq UltraScale+ MPSoC, and MicroBlaze™ and Versal™ processors.

../../../../_images/Linux_debug_flow.png

Note: Refer to the Appendix section for supplementary information about creating a hardware design and building software boot images.

Getting Started

Linux debug setup is a mandatory step. Setup allows you to create platform and application projects in the Vitis IDE.

  1. Open a terminal and navigate to your desired work directory.

  2. Download petalinux_build.sh and the ZCU104 BSP. Copy both files to your desired working directory; for example, UG1515/petalinux_prj.

  3. Source the PetaLinux tool.

  4. Follow the steps in the PetaLinux Build section to complete the PetaLinux build and configuration manually. Note: You can skip the manual steps by using the automated petalinux_build.sh script to generate Linux images. However, make sure to select the appropriate configuration whenever prompted.

  5. Navigate to xilinx-zcu104-2021.1/hardware/xilinx-zcu104-2021.1/outputs in your PetaLinux project and copy project_1.xsa to your desired Vitis work directory (in the following example, it is vitis_work_dir) as zcu104.xsa.

    $ cd xilinx-zcu104-2021.1/hardware/xilinx-zcu104-2021.1/outputs
    $ cp project_1.xsa vitis_work_dir/zcu104.xsa


    Note: If you create a custom ZCU104 XSA by following the steps in Vivado Design, you can use it as it is here.

  6. Download the Vitis-workspace.tcl script. Copy it to your Vitis work directory (in this example, vitis_work_dir) as you did for zcu104.xsa. Download the source file linux_test_application.c to vitis_work_dir/src. These files are required to set up the Vitis workspace. Your Vitis work directory should be structured like the example below after downloading these files.

    vitis_work_dir
    |
    |_ zcu104.xsa
    |
    |_ vitis-workspace.tcl
    |
    |_ src
      |
      |_ linux_test_application.c

  7. Run the Vitis-workspace.tcl script for workspace setup in XSCT. After successful execution of the script, a Vitis worskpace named linux_debug_ws will be created witha ZCU104 based platform and a Linux test application.

    vitis_work_dir
    |
    |_ zcu104.xsa
    |
    |_ vitis-workspace.tcl
    |
    |_ src
    |   |
    |   |_ linux_test_application.c
    |
    |_ linux_debug_ws

  8. Launch the Vitis IDE with linux_debug_ws.

Error 1: There is no Linux TCF agent running on the specified 192.168.0.1

  1. Download sdk-2020.2.0.0.sh and copy it to your working directory.

  2. Create a folder named toolchain_mismatch within your working directory. In a terminal, run the sdk-2020.2.0.0.sh script and install the sysroot inside the toolchain_mismatch folder.

    $ sh sdk-2020.2.0.0.sh

  3. In the Vitis workspace, double-click linux_test_app_system.sprj to open it, and set up a sysroot path to toolchain_mistmatch/sysroots/aarch64-xilinx-linux.

  4. Build the linux_test_app application to generate linux_test_app.elf.

  5. Right-click the linux_test_app application project and navigate to Debug As > Launch on Hardware (Single Application Debug).

    ../../../../_images/TCF-connection.PNG

Setting Up the Ethernet Connection

  • Set your host machine’s Ethernet address to a static IP (suggested: 192.168.1.10).

  • Using the serial terminal, configure the board’s IP address to 192.168.1.11:

    ifconfig eth0 192.168.1.11


    Note: This can be any address other than the one that the host is configured to.

  • Ping the host machine using the terminal to verify connectivity.

    ping 192.168.1.10 –c 1


Setting Up the TCF Agent

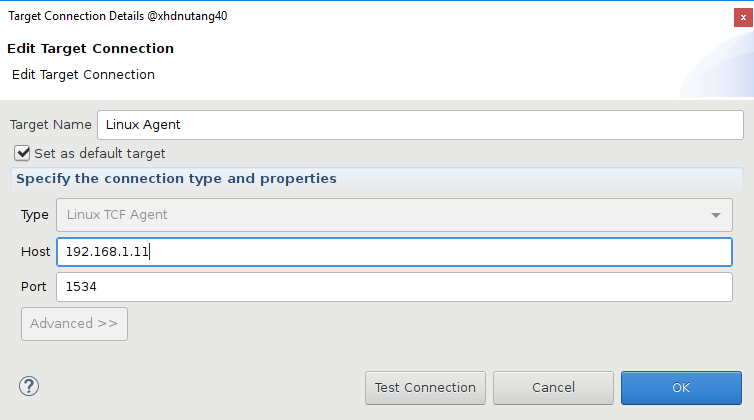

  • In the Vitis IDE, click Target Connections. If the Target Connections view is not visible, select Window > Show View > Other > Xilinx > Target Connections and click OK.

  • Go to the Linux TCF Agent option and double-click to edit it.

  • Change the host IP address to 192.168.1.11.

  • Click OK.

../../../../_images/Linux-Agent.PNG

Error 2: (Linux-Agent : Disconnected) : No such file or directory

  1. Right-click the linux_test_app application project and navigate to Debug As > Launch on Hardware (Single Application Debug).

    ../../../../_images/Linux-Agent-Disconnected-error.PNG

    This error occurs due to a mismatch between the Linux application toolchain and the TCF agent toolchain. Update to the appropriate toolchain to resolve this issue.

  2. In the PetaLinux project folder structure, navigate to the images/linux folder to find the sdk.sh script. Run this shell script to set up a new and appropriate sysroot required for the Linux application.

  3. In the Vitis workspace, double-click to open linux_test_app_system.sprj and set up a new and correct sysroot path to images/linux/sysroots/aarch64-xilinx-linux.

Error 3: Cannot Read Target Memory, Input/Output Error

Sometimes you might try to watch the value of a pointer variable and find that it leads to a “Cannot read target memory” error. This section explores an error case in which a pointer allocated by mmap() can be printed but cannot be read using the debugger.

  1. Enable the _ERROR3_ macro in the application source file linux_test_application.c and disable _ERROR5_ and _ERROR6_ as shown below.

    #define _ERROR3_
    //#define _ERROR5_
    //#define _ERROR6_

  2. Build the application project.

  3. Right-click the linux_test_app application project and navigate toDebug As > Launch on Hardware (Single Application Debug).

    ../../../../_images/memory_input_output_error_small_window.PNG

There is a service called ptrace() (process trace) which is used by debuggers. It provides extensive control over the operation of its target. This includes the manipulation of its file descriptors, memory, and registers. It can single-step through the target’s code as well as observe and intercept system calls and their results. See this web page for more information. GDB and the TCF debugger both use ptrace(). However, Linux does not make I/O memory accessible through ptrace(). To work around the issue, an application can access the I/O memory and write a function which will read the address.

Error 4: Memory View Both Physical Address and Virtual Address Return ????????

In the current debug session, navigate to Memory view and try to access 0xA0000000. It returns ????????, as shown below.

../../../../_images/memory-view-error.PNG

This behavior might be observed many times: the memory returned by mmap()* for either /dev/mem or /dev/uioX cannot be viewed in the Memory, Variables, or Expressions views. Vitis is unable to access it either by physical or vitural address. The memory when accessed in Memory view shows all values as ????????.

To workaround this issue, we will add a memory region 0xA0000000-0xA000000F to the target’s memory map. We will use XSCT command memmap for this modification. Open the XSCT console and work through the following steps to fix this issue.

xsct% connect
xsct% ta
  1  PS TAP
     2  PMU
     3  PL
  4  PSU
     5  RPU (Reset)
        6  Cortex-R5 #0 (RPU Reset)
        7  Cortex-R5 #1 (RPU Reset)
     8 APU
        9  Cortex-A53 #0 (Reset Catch, EL3(S)/A64)
       10  Cortex-A53 #1 (Reset Catch, EL3(S)/A64)
       11  Cortex-A53 #2 (Reset Catch, EL3(S)/A64)
       12  Cortex-A53 #3 (Reset Catch, EL3(S)/A64)

xsct% ta 4
xsct% memmap -addr 0xa0000000 -size 0x10

../../../../_images/memory-view.png

Error 5: Multithread Application Debug

Enable the _ERROR5_ macro in the application source file linux_test_application.c and disable _ERROR3_ and _ERROR6_ as shown below.

//#define _ERROR3_
#define _ERROR5_
//#define _ERROR6_

The goal of multithread application debugging is to make the application thread-safe. You need to debug the application and identify the locations to protect read/write operations.

  1. Right-click the linux_test_app application project and navigate to Debug As > Launch on Hardware (Single Application Debug).

  2. The code will stop at the program entry. There are various debugging techniques such as breakpoints, stepping, and so on to identify the data that needs to be protected. This example will use the breakpoint inside thread function.

  3. Put a breakpoint at below two lines.

    printf("\n Job %d started\n", counter);
    .......
    .......
    printf("\n Job %d finished\n", counter);

  4. Click Resume and check the Job ID printed in the console. Here, the job to be done is not thread-safe.

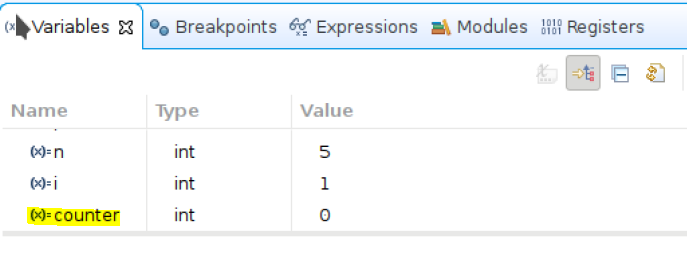

  5. Open the Variables view to track the counter variable value.

    ../../../../_images/variables-view.PNG

  6. Use a synchronization mechanism (mutex, for example) to ensure that two or more concurrent threads do not simultaneously execute read/writes.

  7. Uncomment the mutex code lines listed below from the application to make it thread-safe.

    ............................
    ............................

    #ifdef _ERROR5_
    void* doSomeThing(void *arg)
    {
      //  pthread_mutex_lock(&lock);
      .................
      .................
      // pthread_mutex_unlock(&lock);
      .................
    }
    #endif
    ............................
    ............................
    #ifdef _ERROR5_
    /* if (pthread_mutex_init(&lock, NULL) != 0)
        {
            printf("\n mutex init failed\n");
            return 1;
        }
    */
    ...............
    ...............
    ...............
    //    pthread_mutex_destroy(&lock);

  8. Rebuild the application.

  9. Right-click the linux_test_app application project and navigate to Debug As > Launch on Hardware (Single Application Debug).

  10. Observe the output.

Error 6 : Dynamic Memory Allocation

Enable the _ERROR6_ macro in the application source file linux_test_application.c and disable _ERROR3_ and _ERROR5_ as shown below.

//#define _ERROR3_
//#define _ERROR5_
#define _ERROR6_

The goal of dynamic memory allocation debugging is to understand memory management.

  1. Right-click the linux_test_app application project and navigate to Debug As > Launch on Hardware (Single Application Debug).

  2. The code will stop at the program entry.

  3. Use debugging techniques such as the Variables view, step over, breakpoints, and so on to identify the incorrect memory assignment.

  4. Place a breakpoint at the following lines.

    *ptr = i + 1;
    ptr++;

  5. Click Resume and let the tool stop at the breakpoint.

  6. Open Variables view to check the ptr value. Observe that a value is not correctly assigned to a pointer.

    ../../../../_images/ptr-variable.PNG

  7. Comment out the following code lines:

    #ifdef _ERROR6_
    ................
    ................
    ................
    //ptr = i + 1;
    //ptr++;
    ................

  8. Uncomment the following line of code to make the appropriate pointer assignment.

    #ifdef _ERROR6_
    ................
    ................
    ................
    ................
    ptr[i] = i + 1;
    ................

  9. Rebuild the application.

  10. Right-click the linux_test_app application project and navigate to Debug As > Launch on Hardware (Single Application Debug).

  11. Observe the output.

Appendix

Vivado Design explains how to use a Vivado example design to create a Vivado project. This set of steps gives you the XSA file from Vivado to export. You can skip the manual steps and use this Tcl script to create an XSA directly.

PetaLinux Build explains how to create a PetaLinux project, and how to configure and build boot images.

Vivado Design

Note: You can skip these steps by running the automation steps instead.

Creating the Block Design

The first step is to create a block design. You can create this according to your specific requirements, but here you will create a Zynq UltraScale+ MPSoC based example project using a template, as explained below.

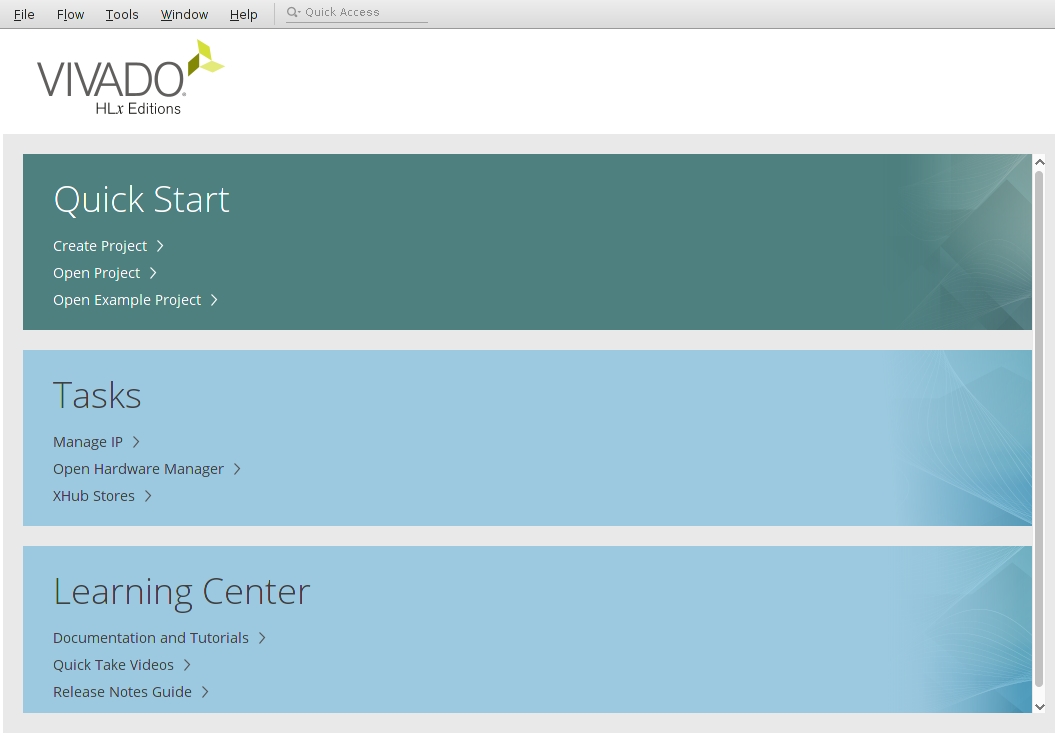

  1. On the Welcome screen, navigate to Quick Start and click Open Example Project.

    ../../../../_images/Create-Example-Project.PNG

  2. The Create Example Project wizard will be launched. Click Next.

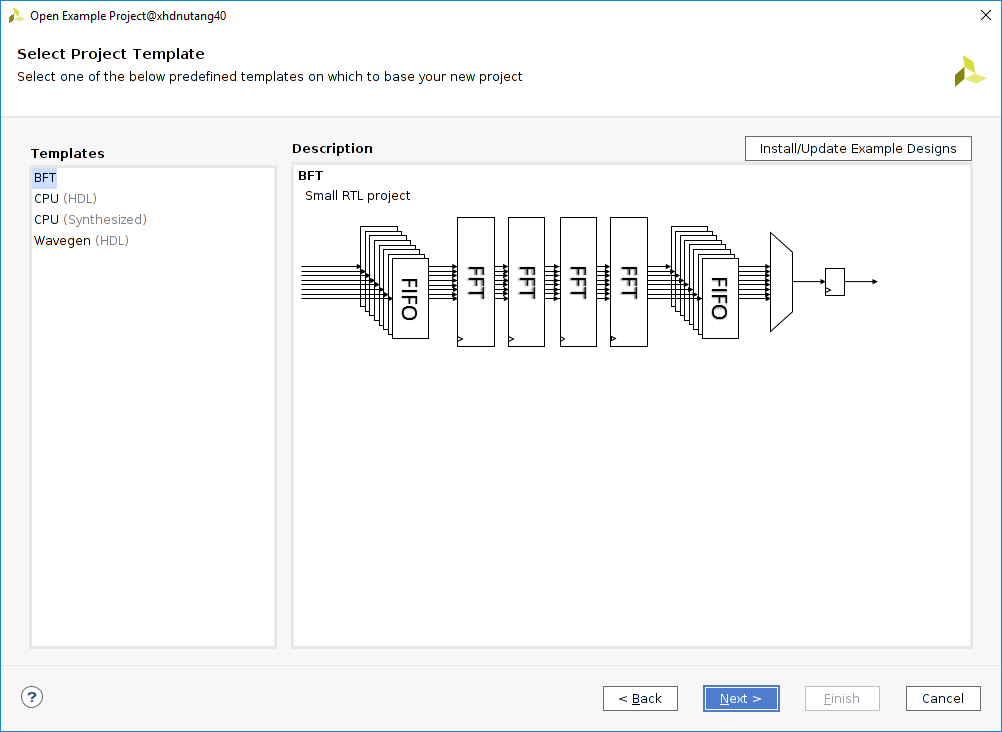

  3. In the Select Project Template window, click Install/Update Example Designs to install templates.

    ../../../../_images/Install-Update_Example-Designs.PNG

  4. A new window will pop up with a list of preset designs. Right-click Zynq Ultrascale+ MPSoC Design Presets, and then click Install….

    ../../../../_images/ZynqMPSoC-Preset.PNG

  5. After successful installation, click Close.

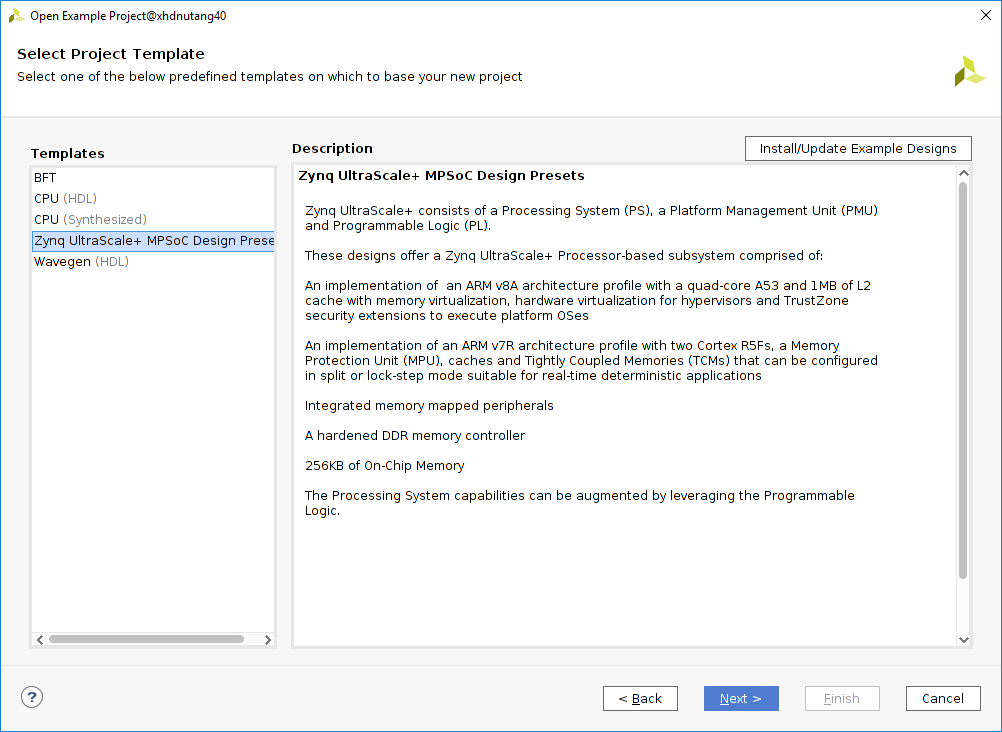

  6. You will now be able to see the Zynq Ultrascale+ MPSoC Design Presets template. Select the template and click Next.

    ../../../../_images/ZynqMPSoC-Preset-Template.PNG

  7. Update the Project Name to “zcu104” and update the path.

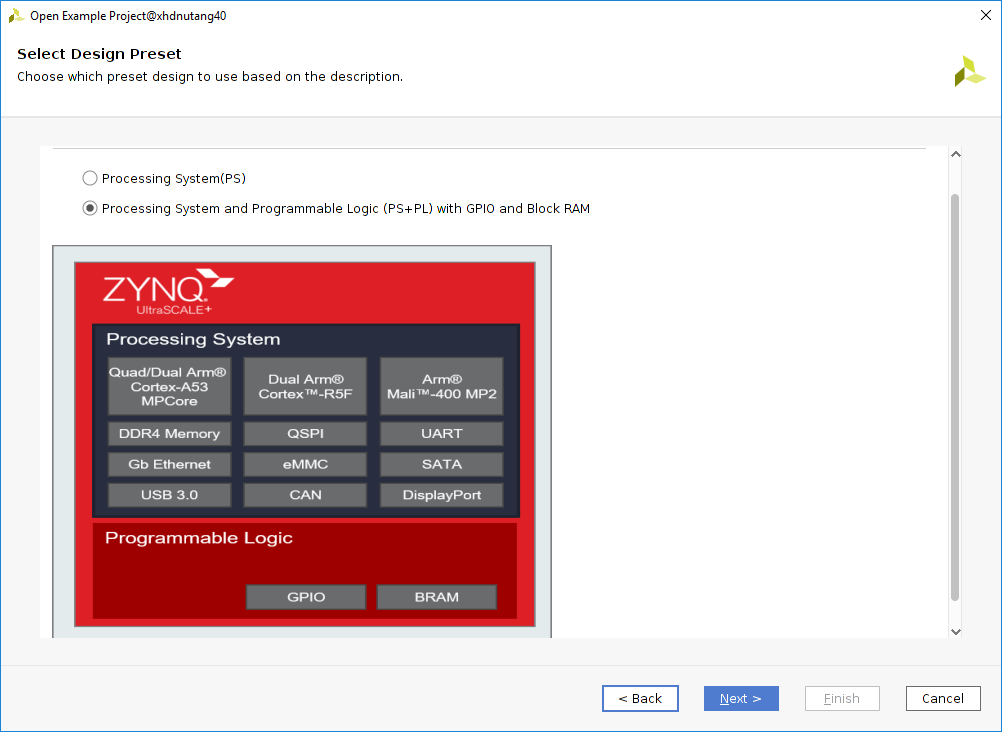

  8. In the next window, select Zynq UltraScale+ MPSoC ZCU104 Evaluation Board and click Next. Here, you can see two preset designs. Select the second option, Processing System and Programmable Logic (PS+PL) with GPIO and Block RAM, and click Finish.

    ../../../../_images/PS-PL.PNG

The block design you have created for the example project is shown in the following figure.

../../../../_images/ZynqMP-Block-Design.PNG

Generating the Bitstream

The preset example creates an HDL wrapper and also generates output products. You can directly perform synthesis and implementation, and you can generate a bitstream. To generate a bitstream, click Generate Bitstream.

Exporting the XSA

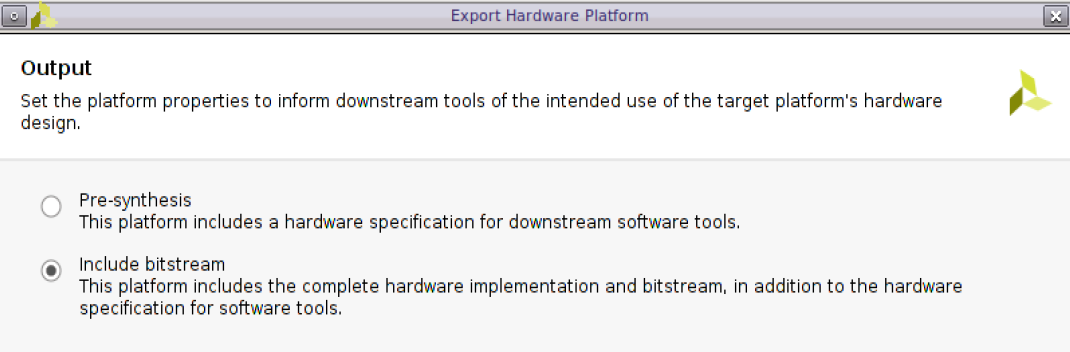

After successful bitsream generation, navigate to File > Export > Export Hardware to launch the Export Hardware Platform wizard. Click Next and export the hardware with the Include bitstream option. Enter the desired XSA name and complete the wizard.

../../../../_images/Include-Bitstream.PNG

Automation Steps

Launch the Vivado Tcl console. Source vivado_design.tcl.

PetaLinux Build

It is required to configure the PetaLinux project to support Linux application debug. Run the following commands for each step listed below.

  1. Create the PetaLinux project:

    petalinux-create -t project -s {$PWD}/xilinx-zcu104-v2021.1-final.bsp

  2. Configure the hardware description (optional):

    petalinux-config --get-hw-description <path to XSA>

  3. Configure the root file system to enable TCF agent:

    petalinux-config -c rootfs

    • Select Filesystem Packages:

      Filesystem Packages --->

    • Scroll down to select misc.

      misc --->

    • Scroll down to select tcf-agent. Ensure that the tcf-agent is enabled.

      [*] tcf-agent
      [ ] tcf-agent-dev
      [ ] tcf-agent-dbg

  4. Go back to the Filesystem Packages menu and click console.

    console --->

  5. Navigate to network.

    network --->

  6. Click into the dropbear submenu and make sure that dropbear is enabled:

    [*] dropbear

  7. Go back to the previous menu to select OpenSSH and ensure that openssh-sftp-server is enabled.

    [ ] openssh
    [ ] openssh-ssh
    [ ] openssh-sftp
    [*] openssh-sftp-server
    [ ] openssh-keygen
    [ ] openssh-dbg
    [ ] openssh-dev
    [ ] openssh-misc
    [ ] openssh-sshd
    [ ] openssh-scp

  8. Save the configuration and exit.

  9. Build:

    petalinux-build

  10. Sysroot:

    petalinux-build --sdk


Note: You can skip all the above steps by using the petalinux_build.sh script to build the Linux images.
