xilinx::aievec::OptimizeAIEVecOptions Struct Reference

Options for the "optimize-aievec" pipeline. More...

#include "aie/Dialect/AIEVec/Pipelines/Passes.h"

Inheritance diagram for xilinx::aievec::OptimizeAIEVecOptions:

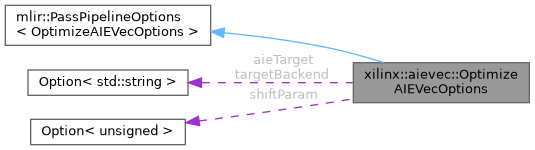

Collaboration diagram for xilinx::aievec::OptimizeAIEVecOptions:

Public Attributes
PassOptions::Option< std::string >	aieTarget
PassOptions::Option< std::string >	targetBackend
PassOptions::Option< unsigned >	shiftParam

Detailed Description

Options for the "optimize-aievec" pipeline.

Definition at line 72 of file Passes.h.

Member Data Documentation

aieTarget

PassOptions::Option<std::string> xilinx::aievec::OptimizeAIEVecOptions::aieTarget

Initial value:

{
      *this, "aie-target",
      llvm::cl::desc("Select AIE version: \"aie\" or \"aie2\". This will "
                     "determine the vector size and available operations."),
      llvm::cl::init("aie")}

Definition at line 74 of file Passes.h.

Referenced by AIEVecConvOpTransformationPass::AIEVecConvOpTransformationPass(), AIEVecTransformationPass::AIEVecTransformationPass(), and xilinx::aievec::ConvertVectorToAIEVecOptions::parseFromString().

shiftParam

PassOptions::Option<unsigned> xilinx::aievec::OptimizeAIEVecOptions::shiftParam

Initial value:

{
      *this, "shift",
      llvm::cl::desc("Shift parameter for rounding and saturation"),
      llvm::cl::init(0)}

Definition at line 85 of file Passes.h.

Referenced by AIEVecConvOpTransformationPass::AIEVecConvOpTransformationPass(), and xilinx::aievec::ConvertVectorToAIEVecOptions::parseFromString().

targetBackend

PassOptions::Option<std::string> xilinx::aievec::OptimizeAIEVecOptions::targetBackend

Initial value:

{
      *this, "target-backend",
      llvm::cl::desc("Select translation backend: \"cpp\" or \"llvmir\". This "
                     "will determine the aievec operations used to convert "
                     "from vector dialect."),
      llvm::cl::init("cpp")}

Definition at line 79 of file Passes.h.

Referenced by AIEVecConvOpTransformationPass::AIEVecConvOpTransformationPass(), AIEVecTransformationPass::AIEVecTransformationPass(), and xilinx::aievec::ConvertVectorToAIEVecOptions::parseFromString().

---

The documentation for this struct was generated from the following file:

• include/aie/Dialect/AIEVec/Pipelines/Passes.h
