#include "cxxopts.hpp"
#include "test_utils.h"
#include "xrt/xrt_bo.h"
#include "xrt/xrt_device.h"
#include "xrt/xrt_hw_context.h"
#include "xrt/xrt_kernel.h"
#include <fstream>
#include <iostream>
#include <sstream>

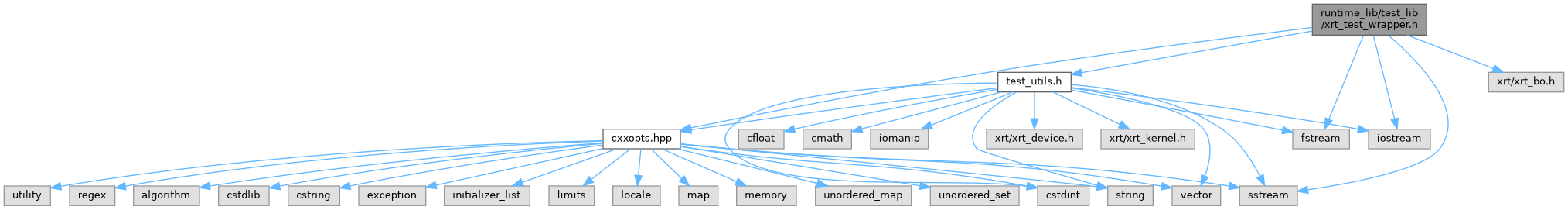

Include dependency graph for xrt_test_wrapper.h:

Classes
struct	args

Functions
struct args	parse_args (int argc, const char *argv[])

uint32_t	getParity (uint32_t n)

uint32_t	create_ctrl_pkt (int operation, int beats, int addr, int ctrl_pkt_read_id=28)

template<typename T1 , typename T2 , typename T3 , void()(T1 , int) init_bufIn1, void()(T2 , int) init_bufIn2, void()(T3 , int) init_bufOut, int()(T1 , T2 , T3 , int, int) verify_results>
int	setup_and_run_aie (int IN1_VOLUME, int IN2_VOLUME, int OUT_VOLUME, struct args myargs, bool enable_ctrl_pkts=false)

template<typename T1 , typename T3 , void()(T1 , int) init_bufIn1, void()(T3 , int) init_bufOut, int()(T1 , T3 *, int, int) verify_results>
int	setup_and_run_aie (int IN1_VOLUME, int OUT_VOLUME, struct args myargs, bool enable_ctrl_pkts=false)

Function Documentation

◆ create_ctrl_pkt()

uint32_t create_ctrl_pkt	(	int	operation,
		int	beats,
		int	addr,
		int	ctrl_pkt_read_id = `28`
	)

Definition at line 60 of file xrt_test_wrapper.h.

References getParity().

Referenced by setup_and_run_aie(), and setup_and_run_aie().

◆ getParity()

uint32_t getParity ( uint32_t n )

Definition at line 49 of file xrt_test_wrapper.h.

Referenced by create_ctrl_pkt().

◆ parse_args()

struct args parse_args	(	int	argc,
		const char *	argv[]
	)

Definition at line 25 of file xrt_test_wrapper.h.

References test_utils::add_default_options(), args::do_verify, args::instr, args::kernel, args::n_iterations, args::n_warmup_iterations, test_utils::parse_options(), args::trace_file, args::trace_size, args::verbosity, and args::xclbin.

◆ setup_and_run_aie() [1/2]

template<typename T1 , typename T2 , typename T3 , void(*)(T1 *, int) init_bufIn1, void(*)(T2 *, int) init_bufIn2, void(*)(T3 *, int) init_bufOut, int(*)(T1 *, T2 *, T3 *, int, int) verify_results>

int setup_and_run_aie	(	int	IN1_VOLUME,
		int	IN2_VOLUME,
		int	OUT_VOLUME,
		struct args	myargs,
		bool	enable_ctrl_pkts = `false`
	)

Definition at line 77 of file xrt_test_wrapper.h.

References create_ctrl_pkt(), args::do_verify, test_utils::init_xrt_load_kernel(), args::instr, args::kernel, test_utils::load_instr_binary(), args::n_iterations, args::n_warmup_iterations, args::trace_file, args::trace_size, args::verbosity, test_utils::write_out_trace(), and args::xclbin.

◆ setup_and_run_aie() [2/2]

template<typename T1 , typename T3 , void(*)(T1 *, int) init_bufIn1, void(*)(T3 *, int) init_bufOut, int(*)(T1 *, T3 *, int, int) verify_results>

int setup_and_run_aie	(	int	IN1_VOLUME,
		int	OUT_VOLUME,
		struct args	myargs,
		bool	enable_ctrl_pkts = `false`
	)

Definition at line 296 of file xrt_test_wrapper.h.
