AIEDMAChannelAnalysis.h File Reference
#include "aie/Dialect/AIE/IR/AIEDialect.h"
#include "llvm/ADT/BitVector.h"
#include "llvm/ADT/DenseMap.h"
#include "llvm/ADT/MapVector.h"
#include "llvm/ADT/STLFunctionalExtras.h"
#include "llvm/ADT/SmallVector.h"
#include <limits>
#include <optional>

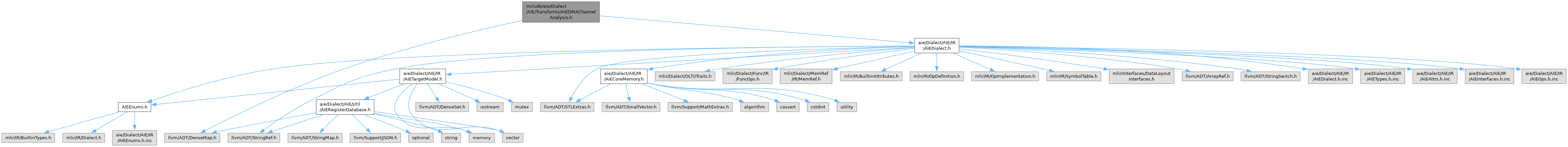

Include dependency graph for AIEDMAChannelAnalysis.h:

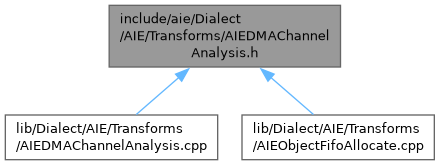

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  xilinx::AIE::DMAChannelAnalysis
 Which DMA channels of each tile are already spoken for, so that a channel is handed out at most once across everything that programs one. More...
struct  xilinx::AIE::DMAChannelAnalysis::ChannelClaim
 A channel claimed by index: by a DMA program start, a runtime task or a shim allocation (owner), on tile. More...
struct  xilinx::AIE::DMAChannelAnalysis::BDPlanEnd
 A DMA end of one tile: its direction, the BD ids it takes, the exclusive upper bound on the channels it may take, and the channel it pins, if any, which every end pinning it shares. More...
struct  xilinx::AIE::DMAChannelAnalysis::BDGroup
 Channels among 0..numChannels-1 at (col, row), grouped by whichever BD ids any two in a group share, transitively. More...
struct  xilinx::AIE::DMAChannelAnalysis::BDWalkPool
 A pool whose ends a BD plan weighs: how many objects it holds, the bytes of one, and whether it can be walked whole, its ends then taking one BD id each. More...
struct  xilinx::AIE::DMAChannelAnalysis::BDWalkSets
 walkSetsThatFit's result; channelShort when the ends do not fit the tile's channels even taking no BD ids, fits false when no set does. More...
struct  xilinx::AIE::DMAChannelAnalysis::WalkChoice
 One walkSetsThatFit set per mem tile of a spill component (memTileSpillComponents), by index; placed when its buffers place, stopped when the search gave up at maxTries tries. More...
class  xilinx::AIE::DMAChannelAnalysis::TakenBDs
 The BD ids tiles' own programs hold before objectFIFOs take theirs: the chains DMA programs start by index, on their channels, and each id a runtime sequence pins (AIEX::forEachRuntimePinnedBdId), once per tile, on the lowest channel up to its own reaching it (aie-reserve-runtime-bd-ids keeps static BDs off those). More...

Namespaces

namespace  xilinx
namespace  xilinx::AIE
