Inheritance diagram for AIEVecConvOpTransformationPass:

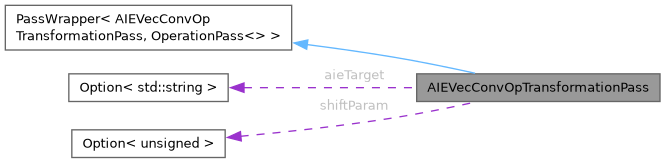

Collaboration diagram for AIEVecConvOpTransformationPass:

Public Member Functions
	AIEVecConvOpTransformationPass ()=default
	AIEVecConvOpTransformationPass (const AIEVecConvOpTransformationPass &pass)
	AIEVecConvOpTransformationPass (const OptimizeAIEVecOptions &options)
StringRef	getArgument () const final
StringRef	getDescription () const final
void	getDependentDialects (DialectRegistry &registry) const override
void	runOnOperation () override

Public Attributes
Option< std::string >	aieTarget
Option< unsigned >	shiftParam

Detailed Description

Definition at line 302 of file AIEVecOptimizations.cpp.

Constructor & Destructor Documentation

◆ AIEVecConvOpTransformationPass() [1/3]

AIEVecConvOpTransformationPass::AIEVecConvOpTransformationPass ( )

default

References AIEVecConvOpTransformationPass().

Referenced by AIEVecConvOpTransformationPass(), AIEVecConvOpTransformationPass(), and AIEVecConvOpTransformationPass().

◆ AIEVecConvOpTransformationPass() [2/3]

AIEVecConvOpTransformationPass::AIEVecConvOpTransformationPass ( const AIEVecConvOpTransformationPass & pass )

inline

Definition at line 307 of file AIEVecOptimizations.cpp.

References AIEVecConvOpTransformationPass().

◆ AIEVecConvOpTransformationPass() [3/3]

AIEVecConvOpTransformationPass::AIEVecConvOpTransformationPass ( const OptimizeAIEVecOptions & options )

inline

Definition at line 310 of file AIEVecOptimizations.cpp.

References aieTarget, xilinx::aievec::OptimizeAIEVecOptions::aieTarget, AIEVecConvOpTransformationPass(), shiftParam, and xilinx::aievec::OptimizeAIEVecOptions::shiftParam.

Member Function Documentation

◆ getArgument()

StringRef AIEVecConvOpTransformationPass::getArgument ( ) const

inlinefinal

Definition at line 318 of file AIEVecOptimizations.cpp.

◆ getDependentDialects()

void AIEVecConvOpTransformationPass::getDependentDialects ( DialectRegistry & registry ) const

inlineoverride

Definition at line 324 of file AIEVecOptimizations.cpp.

◆ getDescription()

StringRef AIEVecConvOpTransformationPass::getDescription ( ) const

inlinefinal

Definition at line 321 of file AIEVecOptimizations.cpp.

◆ runOnOperation()

void AIEVecConvOpTransformationPass::runOnOperation ( )

inlineoverride

Definition at line 343 of file AIEVecOptimizations.cpp.

References xilinx::AIE, xilinx::AIE2, aieTarget, xilinx::aievec::configureAIEVecConvOpTransformationLegalizations(), xilinx::aievec::populateAIEVecConvOpTransformationPatterns(), and shiftParam.

Member Data Documentation

◆ aieTarget

Option<std::string> AIEVecConvOpTransformationPass::aieTarget

Initial value:

{
      *this, "aie-target",
      llvm::cl::desc("Select AIE version: \"aie\" or \"aie2\". This will "
                     "determine the vector size and available operations."),
      llvm::cl::init("aie")}

Definition at line 332 of file AIEVecOptimizations.cpp.

Referenced by AIEVecConvOpTransformationPass(), and runOnOperation().

◆ shiftParam

Option<unsigned> AIEVecConvOpTransformationPass::shiftParam
