Inheritance diagram for AIEVecTransformationPass:

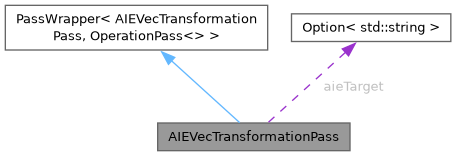

Collaboration diagram for AIEVecTransformationPass:

Public Member Functions
	AIEVecTransformationPass ()=default
	AIEVecTransformationPass (const AIEVecTransformationPass &pass)
	AIEVecTransformationPass (const OptimizeAIEVecOptions &options)
StringRef	getArgument () const final
StringRef	getDescription () const final
void	getDependentDialects (DialectRegistry &registry) const override
void	runOnOperation () override

Public Attributes
Option< std::string >	aieTarget

Detailed Description

Definition at line 233 of file AIEVecOptimizations.cpp.

Constructor & Destructor Documentation

◆ AIEVecTransformationPass() [1/3]

AIEVecTransformationPass::AIEVecTransformationPass ( )

default

References AIEVecTransformationPass().

Referenced by AIEVecTransformationPass(), AIEVecTransformationPass(), and AIEVecTransformationPass().

◆ AIEVecTransformationPass() [2/3]

AIEVecTransformationPass::AIEVecTransformationPass ( const AIEVecTransformationPass & pass )

inline

Definition at line 238 of file AIEVecOptimizations.cpp.

References AIEVecTransformationPass().

◆ AIEVecTransformationPass() [3/3]

AIEVecTransformationPass::AIEVecTransformationPass ( const OptimizeAIEVecOptions & options )

inline

Definition at line 241 of file AIEVecOptimizations.cpp.

References aieTarget, xilinx::aievec::OptimizeAIEVecOptions::aieTarget, and AIEVecTransformationPass().

Member Function Documentation

◆ getArgument()

StringRef AIEVecTransformationPass::getArgument ( ) const

inlinefinal

Definition at line 248 of file AIEVecOptimizations.cpp.

◆ getDependentDialects()

void AIEVecTransformationPass::getDependentDialects ( DialectRegistry & registry ) const

inlineoverride

Definition at line 252 of file AIEVecOptimizations.cpp.

◆ getDescription()

StringRef AIEVecTransformationPass::getDescription ( ) const

inlinefinal

Definition at line 249 of file AIEVecOptimizations.cpp.

◆ runOnOperation()

void AIEVecTransformationPass::runOnOperation ( )

inlineoverride

Definition at line 266 of file AIEVecOptimizations.cpp.

References xilinx::AIE, xilinx::AIE2, and aieTarget.

Member Data Documentation

◆ aieTarget

Option<std::string> AIEVecTransformationPass::aieTarget

Initial value:

{
      *this, "aie-target",
      llvm::cl::desc("Select AIE version: \"aie\" or \"aie2\". This will "
                     "determine the vector size and available operations."),
      llvm::cl::init("aie")}

Definition at line 260 of file AIEVecOptimizations.cpp.

Referenced by AIEVecTransformationPass(), and runOnOperation().

The documentation for this struct was generated from the following file:

lib/Dialect/AIEVec/Transforms/AIEVecOptimizations.cpp
