xilinx::AIEX::DmaCompletionState Struct Reference

Completion is distinct from queue occupancy: Task_Queue_Size excludes the running task. More...

#include "aie/Dialect/AIEX/Utils/DmaQueueModel.h"

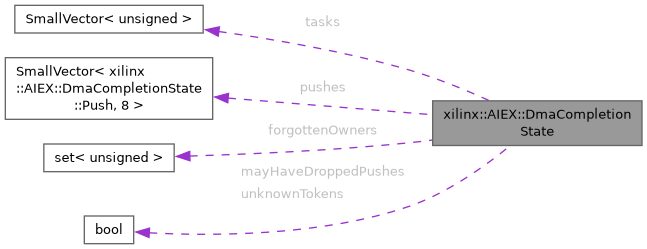

Collaboration diagram for xilinx::AIEX::DmaCompletionState:

Classes
struct	Push

Public Member Functions
bool	operator== (const DmaCompletionState &other) const
void	normalize ()
void	awaitToken ()
void	forgetOwnersIfDrained ()
void	noteIdle ()
void	bound (unsigned limit, bool spaceGuaranteed)
bool	isProvenComplete (unsigned owner) const

Public Attributes
llvm::SmallVector< unsigned >	tasks
llvm::SmallVector< Push, 8 >	pushes
std::set< unsigned >	forgottenOwners
bool	unknownTokens = false
bool	mayHaveDroppedPushes = false

Detailed Description

Completion is distinct from queue occupancy: Task_Queue_Size excludes the running task.

Task identities are path-local and renamed at joins, so a configure executed again in a loop is distinct from the carried old task.

Definition at line 339 of file DmaQueueModel.h.

Member Function Documentation

awaitToken()

void xilinx::AIEX::DmaCompletionState::awaitToken ( )

inline

Definition at line 384 of file DmaQueueModel.h.

References forgetOwnersIfDrained(), xilinx::AIEX::DmaCompletionState::Push::issuesToken, pushes, and unknownTokens.

bound()

void xilinx::AIEX::DmaCompletionState::bound ( unsigned limit, bool spaceGuaranteed )

inline

Definition at line 413 of file DmaQueueModel.h.

References forgetOwnersIfDrained(), forgottenOwners, mayHaveDroppedPushes, pushes, and unknownTokens.

forgetOwnersIfDrained()

void xilinx::AIEX::DmaCompletionState::forgetOwnersIfDrained ( )

inline

Definition at line 397 of file DmaQueueModel.h.

References forgottenOwners, pushes, and xilinx::AIEX::DmaCompletionState::Push::unknownRegion.

Referenced by awaitToken(), and bound().

isProvenComplete()

bool xilinx::AIEX::DmaCompletionState::isProvenComplete ( unsigned owner ) const

inline

Definition at line 430 of file DmaQueueModel.h.

References forgottenOwners, xilinx::AIEX::DmaCompletionState::Push::owner, and pushes.

normalize()

void xilinx::AIEX::DmaCompletionState::normalize ( )

inline

Definition at line 366 of file DmaQueueModel.h.

References forgottenOwners, pushes, and tasks.

noteIdle()

void xilinx::AIEX::DmaCompletionState::noteIdle ( )

inline

Definition at line 402 of file DmaQueueModel.h.

References forgottenOwners, and pushes.

operator==()

bool xilinx::AIEX::DmaCompletionState::operator== ( const DmaCompletionState & other ) const

inline

Definition at line 357 of file DmaQueueModel.h.

References forgottenOwners, mayHaveDroppedPushes, pushes, tasks, and unknownTokens.

Member Data Documentation

forgottenOwners

std::set<unsigned> xilinx::AIEX::DmaCompletionState::forgottenOwners

Definition at line 353 of file DmaQueueModel.h.

Referenced by bound(), forgetOwnersIfDrained(), isProvenComplete(), normalize(), noteIdle(), and operator==().

mayHaveDroppedPushes

bool xilinx::AIEX::DmaCompletionState::mayHaveDroppedPushes = false

Definition at line 355 of file DmaQueueModel.h.

Referenced by bound(), and operator==().

pushes

llvm::SmallVector<Push, 8> xilinx::AIEX::DmaCompletionState::pushes

Definition at line 352 of file DmaQueueModel.h.

Referenced by awaitToken(), bound(), forgetOwnersIfDrained(), isProvenComplete(), normalize(), noteIdle(), and operator==().

tasks

llvm::SmallVector<unsigned> xilinx::AIEX::DmaCompletionState::tasks

Definition at line 351 of file DmaQueueModel.h.

Referenced by normalize(), and operator==().

unknownTokens

bool xilinx::AIEX::DmaCompletionState::unknownTokens = false

Definition at line 354 of file DmaQueueModel.h.

Referenced by awaitToken(), bound(), and operator==().

---

The documentation for this struct was generated from the following file:

• include/aie/Dialect/AIEX/Utils/DmaQueueModel.h
