xilinx::AIEX::DmaQueueModel::ChannelState Struct Reference

One channel's queue: its pushes not yet known to have completed, oldest first, each true when it issues a completion token. More...

#include "aie/Dialect/AIEX/Utils/DmaQueueModel.h"

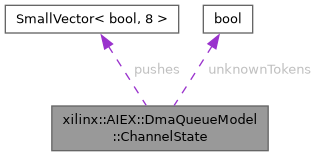

Collaboration diagram for xilinx::AIEX::DmaQueueModel::ChannelState:

Public Member Functions
bool	operator== (const ChannelState &other) const

Public Attributes
llvm::SmallVector< bool, 8 >	pushes
bool	unknownTokens = false

Detailed Description

One channel's queue: its pushes not yet known to have completed, oldest first, each true when it issues a completion token.

Definition at line 54 of file DmaQueueModel.h.

Member Function Documentation

operator==()

bool xilinx::AIEX::DmaQueueModel::ChannelState::operator== ( const ChannelState & other ) const

inline

Definition at line 57 of file DmaQueueModel.h.

References pushes, and unknownTokens.

Member Data Documentation

pushes

llvm::SmallVector<bool, 8> xilinx::AIEX::DmaQueueModel::ChannelState::pushes

Definition at line 55 of file DmaQueueModel.h.

Referenced by xilinx::AIEX::DmaQueueModel::awaitToken(), xilinx::AIEX::guardSequenceQueueDepth(), xilinx::AIEX::DmaQueueModel::noteSpaceGuaranteed(), operator==(), xilinx::AIEX::DmaQueueModel::push(), and xilinx::AIEX::DmaQueueModel::wouldOverflow().

unknownTokens

bool xilinx::AIEX::DmaQueueModel::ChannelState::unknownTokens = false

Definition at line 56 of file DmaQueueModel.h.

Referenced by xilinx::AIEX::DmaQueueModel::awaitToken(), xilinx::AIEX::guardSequenceQueueDepth(), xilinx::AIEX::DmaQueueModel::noteSpaceGuaranteed(), operator==(), and xilinx::AIEX::DmaQueueModel::push().

---

The documentation for this struct was generated from the following file:

• include/aie/Dialect/AIEX/Utils/DmaQueueModel.h
