iron.buffer.Buffer Class Reference

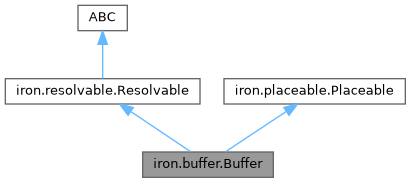

Inheritance diagram for iron.buffer.Buffer:

Collaboration diagram for iron.buffer.Buffer:

Public Member Functions
	__init__ (self, type[np.ndarray]|None type=None, np.ndarray|None initial_value=None, str|None name=None, PlacementTile|None placement=None, bool use_write_rtp=False)
Sequence[int]	shape (self)
np.dtype	dtype (self)
	op (self)
	__getitem__ (self, idx)
	__setitem__ (self, idx, source)
None	resolve (self, ir.Location|None loc=None, ir.InsertionPoint|None ip=None)
Public Member Functions inherited from iron.placeable.Placeable
None	place (self, Tile tile)
PlacementTile|None	tile (self)

Protected Attributes
	_initial_value
	_name
	_op
	_arr_type
	_use_write_rtp
Protected Attributes inherited from iron.placeable.Placeable
	_tile

Private Member Functions
int	__get_index (cls)

Static Private Attributes
int	__gbuf_index = 0

Detailed Description

A buffer that is available both to Workers and to the Runtime for operations.
This is often used for Runtime Parameters.

Constructor & Destructor Documentation

__init__()

iron.buffer.Buffer.__init__	(		self,
		type[np.ndarray] | None	type = None,
		np.ndarray | None	initial_value = None,
		str | None	name = None,
		PlacementTile | None	placement = None,
		bool	use_write_rtp = False
	)

A Buffer is a memory region declared at the top-level of the design, allowing it to
be accessed by both Workers and the Runtime.

Args:
    type (type[np.ndarray] | None, optional): The type of the buffer. Defaults to None.
    initial_value (np.ndarray | None, optional): An initial value to set the buffer to. Should be of same datatype and shape as the buffer. Defaults to None.
    name (str | None, optional): The name of the buffer. If none is given, a unique name will be generated. Defaults to None.
    placement (PlacementTile | None, optional): A placement location for the buffer. Defaults to None.
    use_write_rtp (bool, optional): If use_write_rtp, write_rtp/read_rtp operations will be generated. Otherwise, traditional write/read operations will be used. Defaults to False.

Raises:
    ValueError: If neither ``type`` nor ``initial_value`` is provided.

Reimplemented from iron.placeable.Placeable.

Member Function Documentation

__get_index()

int iron.buffer.Buffer.__get_index (   cls )

private

__getitem__()

iron.buffer.Buffer.__getitem__	(		self,
			idx
	)

__setitem__()

iron.buffer.Buffer.__setitem__	(		self,
			idx,
			source
	)

dtype()

np.dtype iron.buffer.Buffer.dtype

(

self

)

The per-element datatype of the buffer.

op()

iron.buffer.Buffer.op

(

self

)

resolve()

None iron.buffer.Buffer.resolve	(		self,
		ir.Location | None	loc = None,
		ir.InsertionPoint | None	ip = None
	)

Resolve the current object into one or more MLIR operations.
Should only be called within an MLIR context.

Args:
    loc (ir.Location | None, optional): Location is used by MLIR object during construction in some cases. Defaults to None.
    ip (ir.InsertionPoint | None, optional): InsertionPoint is used by MLIR object during construction in some cases. Defaults to None.

Reimplemented from iron.resolvable.Resolvable.

shape()

Sequence[int] iron.buffer.Buffer.shape

(

self

)

The shape of the buffer

Member Data Documentation

__gbuf_index

int iron.buffer.Buffer.__gbuf_index = 0

staticprivate

_arr_type

iron.buffer.Buffer._arr_type

protected

_initial_value

iron.buffer.Buffer._initial_value

protected

_name

iron.buffer.Buffer._name

protected

_op

iron.buffer.Buffer._op

protected

_use_write_rtp

iron.buffer.Buffer._use_write_rtp

protected

---

The documentation for this class was generated from the following file:

• iron/buffer.py
