AMI - Kernel Driver Interaction

Initialization

Mapping GCQ IP/Payload

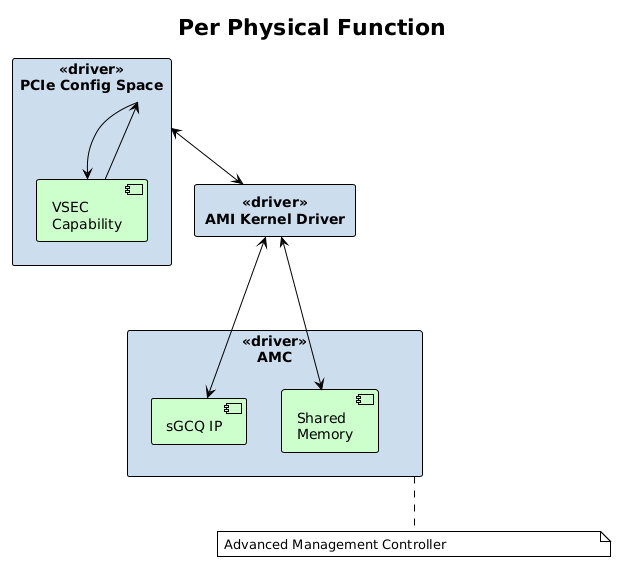

For each physical function during initialization, the kernel module will parse the PCIe extended capabilities to get access to the VSEC capability.

This capability contains the associated path (PCIe bar/offset & length) to the GCQ and to the shared memory interface.

Partition Table

Using the information obtained from the VSEC capability, the driver will parse the top of the shared memory which contains a partition table populated by the AMC on initialization.

The AMI driver uses this data to get the initial AMC status, information used to initialize the GCQ driver via FAL, obtain the AMC log and to read any populated response data.

Field	Description
Magic Number	Unique identifier
GCQ Ring Buffer offset/length	Used by the GCQ driver to store CQ/SQ slot data
AMC Status	This will be set to a value of 0x1 when the AMC is fully initialized
AMC Logging Payload	The offset within the shared memory to be populated with the log
AMC Data Payload	The offset within the shared memory to be populated with the response data

Threading

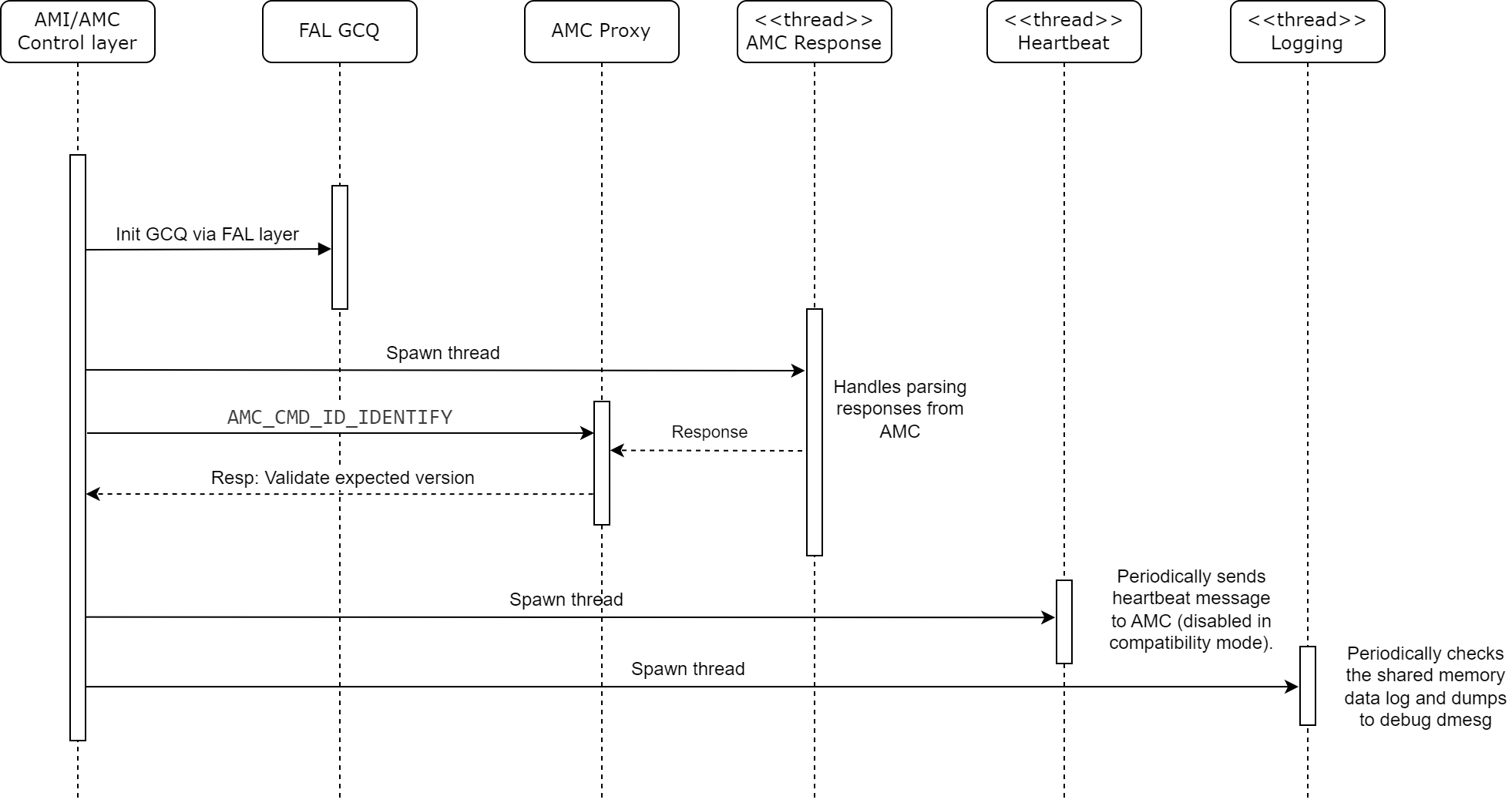

Once the GCQ driver has been configured, the AMI kernel driver will spawn three different threads per physical function.

Thread	Description
Heartbeat Thread	Periodically (every 0.5 seconds) send a message to the AMC and waits for appropriate response. On failure/timeout a bound in callback will be invoked to the upper layer of the driver.
Logging Thread	Periodically (every second) checks the logging buffer (in shared memory) populated by the AMC and dumps anything found to info 'dmesg' kernel log.
Response Thread	Handles waiting for and parsing responses from the AMC via the FAL GCQ.

Normal Operation

The AMI/AMC control layer contains the functionality to submit a
synchronous request and blocks on a completion variable waiting for the response from the AMC proxy layer.

The AMC proxy layer is used to form up the lower level requests and interact with the sGCQ driver to send requests and wait on responses (via AMC response callback).

If a response isn’t received within the specified timeout, the
command is aborted and marked as timed out. If a timeout occurs, an error message will be added to the dmesg error log.

Supported Commands

The following is a list of the currently supported commands with the associated timeouts.

Request	Description	Timeout
GCQ_SUBMIT_CMD_GET_GCQ_VERSION	Get the sGCQ version	150
seconds
GCQ_SUBMIT_CMD_GET_SDR	Get an SDR (Sensor Data Record)	150
seconds
GCQ_SUBMIT_CMD_GET_SDR_SIZE	Get an SDR Size	150 seconds
GCQ_SUBMIT_CMD_DOWNLOAD_PDI	Request to start PDI Download	150
seconds
GCQ_SUBMIT_CMD_DEVICE_BOOT	Select the bootable partition within
the flash	150 seconds
GCQ_SUBMIT_CMD_COPY_PARTITION	Request to start copying a
partition	60 minutes
GCQ_SUBMIT_CMD_SET_FPT_PARTITION	Set FPT partition	150 seconds
GCQ_SUBMIT_CMD_GET_HEARTBEAT	Heartbeat message (on its own
thread)	0.5 seconds
GCQ_SUBMIT_CMD_EEPROM_READ_WRITE	Read/Write EEPROM request	150
seconds
GCQ_SUBMIT_CMD_MODULE_READ_WRITE	Read/Write QSFP module request
150 seconds
GCQ_SUBMIT_CMD_DEBUG_VERBOSITY	Debug verbosity command	150
seconds

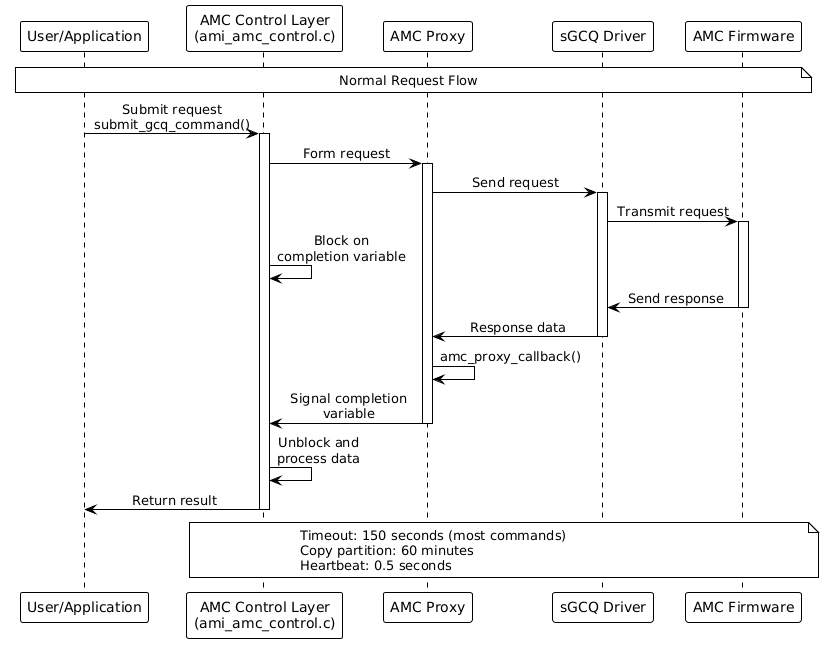

Basic Flow

The flow for each request/response is the same with the exception of the heartbeat which operates on its own thread.

The AMC control layer calls into the AMC proxy to form up a request, this request is then sent to the AMC via the sGCQ.

The AMC control layer is then blocked waiting for the response.

During this time the AMC proxy monitors incoming data from the sGCQ and invokes a callback function when responses are received.

If a matching response is received, it is signaled back to the control layer via the completion variable with success and the data is processed.

If no matching response is found within the timeout period, the completion variable is signaled with a timeout event and an error is returned to the calling function.
