xilinx::AIE::DynamicTileAnalysis Class Reference

#include "aie/Dialect/AIE/Transforms/AIEPathFinder.h"

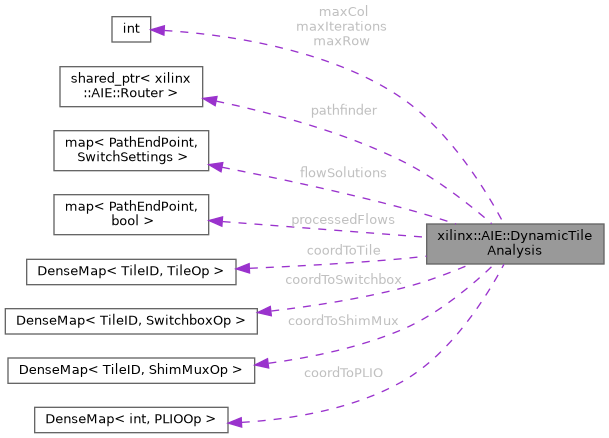

Collaboration diagram for xilinx::AIE::DynamicTileAnalysis:

Public Member Functions
	DynamicTileAnalysis ()
	DynamicTileAnalysis (std::shared_ptr< Router > p)
mlir::LogicalResult	runAnalysis (DeviceOp &device)
int	getMaxCol () const
int	getMaxRow () const
TileOp	getTile (mlir::OpBuilder &builder, int col, int row)
SwitchboxOp	getSwitchbox (mlir::OpBuilder &builder, int col, int row)
ShimMuxOp	getShimMux (mlir::OpBuilder &builder, int col)

Public Attributes
int	maxCol
int	maxRow
std::shared_ptr< Router >	pathfinder
std::map< PathEndPoint, SwitchSettings >	flowSolutions
std::map< PathEndPoint, bool >	processedFlows
llvm::DenseMap< TileID, TileOp >	coordToTile
llvm::DenseMap< TileID, SwitchboxOp >	coordToSwitchbox
llvm::DenseMap< TileID, ShimMuxOp >	coordToShimMux
llvm::DenseMap< int, PLIOOp >	coordToPLIO
const int	maxIterations = 1000

Detailed Description

Definition at line 232 of file AIEPathFinder.h.

Constructor & Destructor Documentation

DynamicTileAnalysis() [1/2]

xilinx::AIE::DynamicTileAnalysis::DynamicTileAnalysis ( )

inline

Definition at line 246 of file AIEPathFinder.h.

DynamicTileAnalysis() [2/2]

xilinx::AIE::DynamicTileAnalysis::DynamicTileAnalysis ( std::shared_ptr< Router >  p )

inline

Definition at line 247 of file AIEPathFinder.h.

Member Function Documentation

getMaxCol()

int xilinx::AIE::DynamicTileAnalysis::getMaxCol ( ) const

inline

Definition at line 251 of file AIEPathFinder.h.

References maxCol.

getMaxRow()

int xilinx::AIE::DynamicTileAnalysis::getMaxRow ( ) const

inline

Definition at line 252 of file AIEPathFinder.h.

References maxRow.

getShimMux()

ShimMuxOp DynamicTileAnalysis::getShimMux	(	mlir::OpBuilder &	builder,
		int	col
	)

Definition at line 172 of file AIEPathFinder.cpp.

References xilinx::AIE::col, coordToShimMux, getTile(), maxCol, maxRow, and xilinx::AIE::row.

getSwitchbox()

SwitchboxOp DynamicTileAnalysis::getSwitchbox	(	mlir::OpBuilder &	builder,
		int	col,
		int	row
	)

Definition at line 155 of file AIEPathFinder.cpp.

References xilinx::AIE::col, coordToSwitchbox, getTile(), maxCol, maxRow, and xilinx::AIE::row.

getTile()

TileOp DynamicTileAnalysis::getTile	(	mlir::OpBuilder &	builder,
		int	col,
		int	row
	)

Definition at line 144 of file AIEPathFinder.cpp.

References xilinx::AIE::col, coordToTile, maxCol, maxRow, and xilinx::AIE::row.

Referenced by getShimMux(), getSwitchbox(), and xilinx::AIE::AIEPathfinderPass::runOnPacketFlow().

runAnalysis()

LogicalResult DynamicTileAnalysis::runAnalysis

(

DeviceOp &

device

)

Definition at line 25 of file AIEPathFinder.cpp.

References xilinx::AIE::col, coordToShimMux, coordToSwitchbox, coordToTile, xilinx::AIE::dstCoords, flowSolutions, maxCol, maxIterations, maxRow, pathfinder, processedFlows, xilinx::AIE::row, and xilinx::AIE::srcCoords.

Member Data Documentation

coordToPLIO

llvm::DenseMap<int, PLIOOp> xilinx::AIE::DynamicTileAnalysis::coordToPLIO

Definition at line 242 of file AIEPathFinder.h.

coordToShimMux

llvm::DenseMap<TileID, ShimMuxOp> xilinx::AIE::DynamicTileAnalysis::coordToShimMux

Definition at line 241 of file AIEPathFinder.h.

Referenced by getShimMux(), and runAnalysis().

coordToSwitchbox

llvm::DenseMap<TileID, SwitchboxOp> xilinx::AIE::DynamicTileAnalysis::coordToSwitchbox

Definition at line 240 of file AIEPathFinder.h.

Referenced by getSwitchbox(), and runAnalysis().

coordToTile

llvm::DenseMap<TileID, TileOp> xilinx::AIE::DynamicTileAnalysis::coordToTile

Definition at line 239 of file AIEPathFinder.h.

Referenced by getTile(), and runAnalysis().

flowSolutions

std::map<PathEndPoint, SwitchSettings> xilinx::AIE::DynamicTileAnalysis::flowSolutions

Definition at line 236 of file AIEPathFinder.h.

Referenced by runAnalysis(), and xilinx::AIE::AIEPathfinderPass::runOnPacketFlow().

maxCol

int xilinx::AIE::DynamicTileAnalysis::maxCol

Definition at line 234 of file AIEPathFinder.h.

Referenced by getMaxCol(), getShimMux(), getSwitchbox(), getTile(), and runAnalysis().

maxIterations

const int xilinx::AIE::DynamicTileAnalysis::maxIterations = 1000

Definition at line 244 of file AIEPathFinder.h.

Referenced by runAnalysis().

maxRow

int xilinx::AIE::DynamicTileAnalysis::maxRow

Definition at line 234 of file AIEPathFinder.h.

Referenced by getMaxRow(), getShimMux(), getSwitchbox(), getTile(), and runAnalysis().

pathfinder

std::shared_ptr<Router> xilinx::AIE::DynamicTileAnalysis::pathfinder

Definition at line 235 of file AIEPathFinder.h.

Referenced by runAnalysis().

processedFlows

std::map<PathEndPoint, bool> xilinx::AIE::DynamicTileAnalysis::processedFlows

Definition at line 237 of file AIEPathFinder.h.

Referenced by runAnalysis(), and xilinx::AIE::AIEPathfinderPass::runOnPacketFlow().

---

The documentation for this class was generated from the following files:

• include/aie/Dialect/AIE/Transforms/AIEPathFinder.h
• lib/Dialect/AIE/Transforms/AIEPathFinder.cpp
