memory_allocator.cpp File Reference

#include "memory_allocator.h"
#include <assert.h>
#include <iostream>

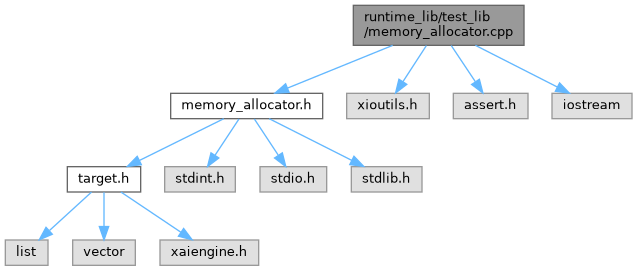

Include dependency graph for memory_allocator.cpp:

Go to the source code of this file.

Functions
void	ess_WriteGM (uint64_t addr, const void *data, uint64_t size)
void	ess_ReadGM (uint64_t addr, void *data, uint64_t size)
int *	mlir_aie_mem_alloc (aie_libxaie_ctx_t *ctx, ext_mem_model_t &handle, int size)
	Allocate a buffer in device memory.
void	mlir_aie_sync_mem_cpu (ext_mem_model_t &handle)
	Synchronize the buffer from the device to the host CPU.
void	mlir_aie_sync_mem_dev (ext_mem_model_t &handle)
	Synchronize the buffer from the host CPU to the device.
u64	mlir_aie_get_device_address (aie_libxaie_ctx_t *ctx, void *VA)
	Return a device address corresponding to the given host address.

Function Documentation

ess_ReadGM()

void ess_ReadGM	(	uint64_t	addr,
		void *	data,
		uint64_t	size
	)

Referenced by mlir_aie_sync_mem_cpu().

ess_WriteGM()

void ess_WriteGM	(	uint64_t	addr,
		const void *	data,
		uint64_t	size
	)

Referenced by mlir_aie_sync_mem_dev().

mlir_aie_get_device_address()

u64 mlir_aie_get_device_address	(	aie_libxaie_ctx_t *	ctx,
		void *	host_address
	)

Return a device address corresponding to the given host address.

Parameters

ctx	The AIE context
host_address	A host-side pointer returned from mlir_aie_mem_alloc

Returns

The device physical address corresponding to the host pointer

Definition at line 56 of file memory_allocator.cpp.

References aie_libxaie_ctx_t::allocations.

mlir_aie_mem_alloc()

int * mlir_aie_mem_alloc	(	aie_libxaie_ctx_t *	ctx,
		ext_mem_model_t &	handle,
		int	size
	)

Allocate a buffer in device memory.

Parameters

ctx	The AIE context
handle	External memory model handle for tracking the allocation
size	The number of 32-bit words to allocate

Returns

A host-side pointer that can write into the allocated buffer

Todo:

This is at best a quick hack and should be replaced

Definition at line 22 of file memory_allocator.cpp.

References aie_libxaie_ctx_t::allocations, ext_mem_model_t::physicalAddr, ext_mem_model_t::size, and ext_mem_model_t::virtualAddr.

mlir_aie_sync_mem_cpu()

void mlir_aie_sync_mem_cpu

(

ext_mem_model_t &

handle

)

Synchronize the buffer from the device to the host CPU.

This is expected to be called after the device writes data into device memory, so that the data can be read by the CPU. In a non-cache coherent system, this implies invalidating the processor cache associated with the buffer.

Parameters

handle

External memory model handle identifying the buffer to synchronize

Definition at line 48 of file memory_allocator.cpp.

References ess_ReadGM(), ext_mem_model_t::physicalAddr, ext_mem_model_t::size, and ext_mem_model_t::virtualAddr.

mlir_aie_sync_mem_dev()

void mlir_aie_sync_mem_dev

(

ext_mem_model_t &

handle

)

Synchronize the buffer from the host CPU to the device.

This is expected to be called after the host writes data into device memory, so that the data can be read by the device. In a non-cache coherent system, this implies flushing the processor cache associated with the buffer.

Parameters

handle

External memory model handle identifying the buffer to synchronize

Definition at line 52 of file memory_allocator.cpp.

References ess_WriteGM(), ext_mem_model_t::physicalAddr, ext_mem_model_t::size, and ext_mem_model_t::virtualAddr.
