#include "target.h"
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>

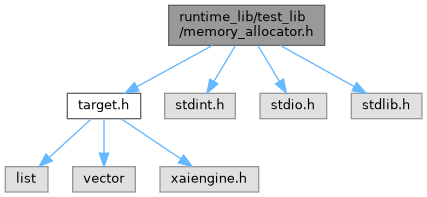

Include dependency graph for memory_allocator.h:

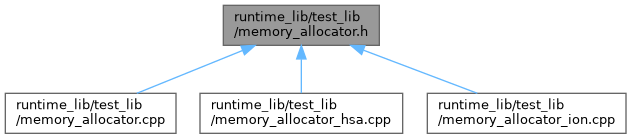

This graph shows which files directly or indirectly include this file:

Functions
int *	mlir_aie_mem_alloc (aie_libxaie_ctx_t *_xaie, ext_mem_model_t &handle, int size)
	Allocate a buffer in device memory.

void	mlir_aie_sync_mem_cpu (ext_mem_model_t &handle)
	Synchronize the buffer from the device to the host CPU.

void	mlir_aie_sync_mem_dev (ext_mem_model_t &handle)
	Synchronize the buffer from the host CPU to the device.

u64	mlir_aie_get_device_address (aie_libxaie_ctx_t _xaie, void host_address)
	Return a device address corresponding to the given host address.

Function Documentation

◆ mlir_aie_get_device_address()

u64 mlir_aie_get_device_address	(	aie_libxaie_ctx_t *	_xaie,
		void *	host_address
	)

Return a device address corresponding to the given host address.

Parameters

host_address A host-side pointer returned from mlir_aie_mem_alloc

Definition at line 51 of file memory_allocator.cpp.

References aie_libxaie_ctx_t::allocations.

◆ mlir_aie_mem_alloc()

int * mlir_aie_mem_alloc	(	struct aie_libxaie_ctx_t *	ctx,
		ext_mem_model_t &	handle,
		int	size
	)

Allocate a buffer in device memory.

Parameters

bufIdx	The index of the buffer to allocate.
size	The number of 32-bit words to allocate

Returns: A host-side pointer that can write into the given buffer.

Todo:: This is at best a quick hack and should be replaced

Allocate a buffer in device memory.

Parameters

handle	Device Instance
size	Size of the memory

Returns: Pointer to the allocated memory instance.

Definition at line 17 of file memory_allocator.cpp.

References aie_libxaie_ctx_t::allocations, ion_heap_query::cnt, aie_libxaie_ctx_t::DevInst, ion_allocation_data::fd, ext_mem_model_t::fd, ion_heap_data::heap_id, ion_allocation_data::heap_id_mask, ion_heap_query::heaps, ION_HEAP_TYPE_SYSTEM_CONTIG, ION_IOC_ALLOC, ION_IOC_HEAP_QUERY, ion_allocation_data::len, ext_mem_model_t::MemInst, ion_heap_data::name, ext_mem_model_t::physicalAddr, ext_mem_model_t::size, ion_heap_data::type, and ext_mem_model_t::virtualAddr.

◆ mlir_aie_sync_mem_cpu()

void mlir_aie_sync_mem_cpu ( ext_mem_model_t & handle )

Synchronize the buffer from the device to the host CPU.

This is expected to be called after the device writes data into device memory, so that the data can be read by the CPU. In a non-cache coherent system, this implies invalidating the processor cache associated with the buffer.

Parameters

bufIdx The buffer index.

Synchronize the buffer from the device to the host CPU.

Parameters

IOInst	Linux IO instance pointer
MemInst	Linux Memory instance pointer.

Returns: XAIE_OK on success, Error code on failure.

Note: Internal only. This is the memory function to free the memory

Parameters

MemInst Memory instance pointer.

Returns: XAIE_OK on success, Error code on failure.

Note: Internal only. This is the memory function to sync the memory for CPU.

Parameters

MemInst Memory instance pointer.

Returns: XAIE_OK on success, Error code on failure.

Note: Internal only.

Definition at line 43 of file memory_allocator.cpp.

References ext_mem_model_t::fd, ext_mem_model_t::physicalAddr, ext_mem_model_t::size, and ext_mem_model_t::virtualAddr.

◆ mlir_aie_sync_mem_dev()

void mlir_aie_sync_mem_dev ( ext_mem_model_t & handle )

Synchronize the buffer from the host CPU to the device.

This is expected to be called after the host writes data into device memory, so that the data can be read by the device. In a non-cache coherent system, this implies flushing the processor cache associated with the buffer.

Parameters

bufIdx The buffer index.

Synchronize the buffer from the host CPU to the device.

Parameters

MemInst Memory instance pointer.

Returns: XAIE_OK on success, Error code on failure.

Note: Internal only.

Definition at line 47 of file memory_allocator.cpp.

References ext_mem_model_t::fd, ext_mem_model_t::physicalAddr, ext_mem_model_t::size, and ext_mem_model_t::virtualAddr.
