#include <errno.h>#include <fcntl.h>#include <limits.h>#include <linux/dma-buf.h>#include <pthread.h>#include <stdint.h>#include <stdlib.h>#include <string.h>#include <sys/ioctl.h>#include <sys/mman.h>#include <sys/stat.h>#include <sys/types.h>#include <unistd.h>#include "ion.h"#include "memory_allocator.h"

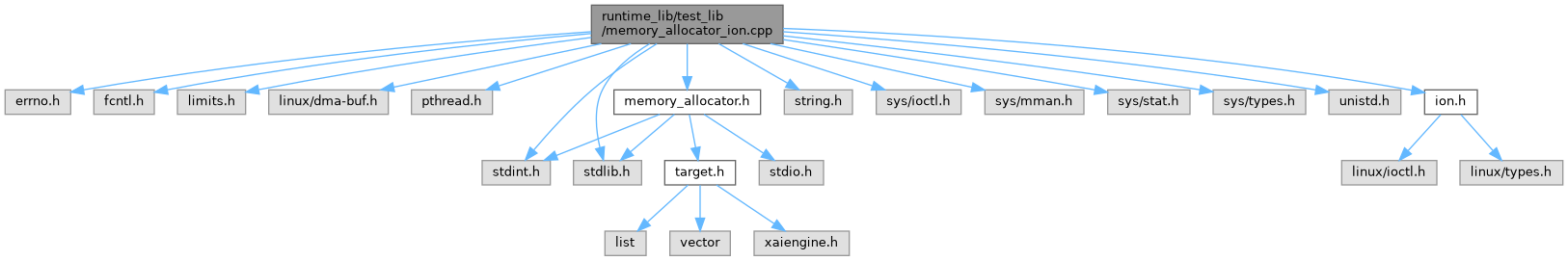

Include dependency graph for memory_allocator_ion.cpp:
Go to the source code of this file.
Macros | |
| #define | XAIE_128BIT_ALIGN_MASK 0xFF |
Functions | |
| int * | mlir_aie_mem_alloc (struct aie_libxaie_ctx_t *ctx, ext_mem_model_t &handle, int size) |
| Allocate a buffer in device memory. | |
| void | mlir_aie_sync_mem_cpu (ext_mem_model_t &handle) |
| Synchronize the buffer from the device to the host CPU. | |
| void | mlir_aie_sync_mem_dev (ext_mem_model_t &handle) |
| Synchronize the buffer from the host CPU to the device. | |
| u64 | mlir_aie_get_device_address (struct aie_libxaie_ctx_t *_xaie, void *VA) |
| Return a device address corresponding to the given host address. | |
Macro Definition Documentation
◆ XAIE_128BIT_ALIGN_MASK
| #define XAIE_128BIT_ALIGN_MASK 0xFF |
Definition at line 35 of file memory_allocator_ion.cpp.
Function Documentation
◆ mlir_aie_get_device_address()
| u64 mlir_aie_get_device_address | ( | aie_libxaie_ctx_t * | ctx, |
| void * | host_address | ||
| ) |
Return a device address corresponding to the given host address.
- Parameters
-
ctx The AIE context host_address A host-side pointer returned from mlir_aie_mem_alloc
- Returns
- The device physical address corresponding to the host pointer
Definition at line 228 of file memory_allocator_ion.cpp.
◆ mlir_aie_mem_alloc()
| int * mlir_aie_mem_alloc | ( | aie_libxaie_ctx_t * | ctx, |
| ext_mem_model_t & | handle, | ||
| int | size | ||
| ) |
Allocate a buffer in device memory.
- Parameters
-
ctx The AIE context handle External memory model handle for tracking the allocation size The number of 32-bit words to allocate
- Returns
- A host-side pointer that can write into the allocated buffer
- Todo:
- This is at best a quick hack and should be replaced
Definition at line 38 of file memory_allocator_ion.cpp.
References ion_heap_query::cnt, ion_allocation_data::fd, ext_mem_model_t::fd, ion_heap_data::heap_id, ion_allocation_data::heap_id_mask, ion_heap_query::heaps, ION_HEAP_TYPE_SYSTEM_CONTIG, ION_IOC_ALLOC, ION_IOC_HEAP_QUERY, ion_allocation_data::len, ext_mem_model_t::MemInst, ion_heap_data::name, ext_mem_model_t::size, ion_heap_data::type, ext_mem_model_t::virtualAddr, and aie_libxaie_ctx_t::XAieDevInst.
◆ mlir_aie_sync_mem_cpu()
| void mlir_aie_sync_mem_cpu | ( | ext_mem_model_t & | handle | ) |
Synchronize the buffer from the device to the host CPU.
This is expected to be called after the device writes data into device memory, so that the data can be read by the CPU. In a non-cache coherent system, this implies invalidating the processor cache associated with the buffer.
- Parameters
-
handle External memory model handle identifying the buffer to synchronize
Definition at line 196 of file memory_allocator_ion.cpp.
References ext_mem_model_t::fd.
◆ mlir_aie_sync_mem_dev()
| void mlir_aie_sync_mem_dev | ( | ext_mem_model_t & | handle | ) |
Synchronize the buffer from the host CPU to the device.
This is expected to be called after the host writes data into device memory, so that the data can be read by the device. In a non-cache coherent system, this implies flushing the processor cache associated with the buffer.
- Parameters
-
handle External memory model handle identifying the buffer to synchronize
Definition at line 212 of file memory_allocator_ion.cpp.
References ext_mem_model_t::fd.
