Inheritance diagram for AIEObjectFifoStatefulTransformPass:

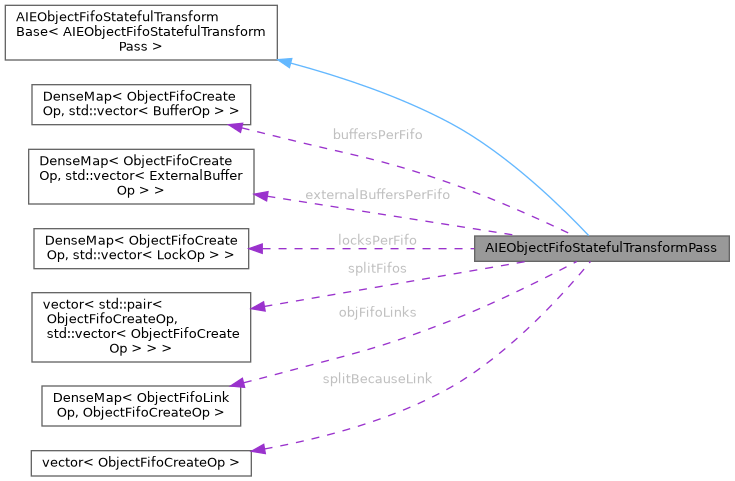

Collaboration diagram for AIEObjectFifoStatefulTransformPass:

Public Member Functions
bool	isSharedMemory (TileOp a, TileOp b, int *share_direction)
	Function that returns true if two tiles in the AIE array share a memory module.

bool	requiresDMAs (ObjectFifoCreateOp createOp, int &share_direction)

void	checkAndApplyViaSharedMemAttribute (ObjectFifoCreateOp createOp, int &share_direction)

std::optional< ObjectFifoLinkOp >	getOptionalLinkOp (ObjectFifoCreateOp op)
	Function to retrieve ObjectFifoLinkOp of ObjectFifoCreateOp, if it belongs to one.

ObjectFifoCreateOp	createObjectFifo (OpBuilder &builder, AIEObjectFifoType datatype, std::string name, Value prodTile, Value consTile, Attribute depth, BDDimLayoutArrayAttr dimensionsToStream, BDDimLayoutArrayArrayAttr dimensionsFromStreamPerConsumer)

std::vector< LockOp >	createObjectFifoLocks (OpBuilder &builder, LockAnalysis &lockAnalysis, ObjectFifoCreateOp op, int numElem, int joinDistribFactor, TileOp creation_tile, int repeatCount)
	Function used to create objectFifo locks based on target architecture.

int	calculateCurrentUsedMemory (TileOp targetTile, DenseMap< ObjectFifoCreateOp, std::vector< BufferOp > > &buffersPerFifo, std::vector< BufferOp > &buffers)
	Function to calculate total memory usage on a specific tile based on all buffers allocated to that tile from buffersPerFifo map.

std::map< ObjectFifoCreateOp, bool >	analyzeCrossTileFIFOBuffers ()
	Function to analyze cross-tile buffer allocations in splitFifos Returns a simple map of (ObjectFifoCreateOp, bool) indicating cross-tile issues.

TileOp	findOrCreateTile (OpBuilder &builder, DeviceOp &dev, TileOp hostTile, int col, int row)
	Helper function to find a tile at specific coordinates.

void	createObjectFifoElements (OpBuilder &builder, LockAnalysis &lockAnalysis, ObjectFifoCreateOp op, int share_direction)
	Function used to create objectFifo elements and their locks.

Block *	findEndOpBlock (Region &r)
	Function that returns a pointer to the block of a Region that contains the AIEEndOp.

template<typename MyOp >
void	createBd (OpBuilder &builder, LockOp acqLock, int acqMode, LockAction acqLockAction, LockOp relLock, int relMode, MyOp buff, int offset, int len, Block *succ, BDDimLayoutArrayAttr dims, BDPadLayoutArrayAttr padDimensions)
	Function used to create a Bd block.

template<typename MyOp >
void	createBdBlock (OpBuilder &builder, ObjectFifoCreateOp op, int lockMode, int acqNum, int relNum, MyOp buff, int offset, int len, DMAChannelDir channelDir, size_t lockIndex, Block *succ, BDDimLayoutArrayAttr dims, BDPadLayoutArrayAttr padDimensions, bool distribOrJoin=false)
	Function used to create a Bd block.

void	createDMA (DeviceOp &device, OpBuilder &builder, ObjectFifoCreateOp op, DMAChannelDir channelDir, int channelIndex, int lockMode, BDDimLayoutArrayAttr dims, BDPadLayoutArrayAttr pad_dims)
	Function that either calls createAIETileDMA(), createShimDMA() or createMemTileDMA() based on op tile row value.

void	createAIETileDMA (DeviceOp &device, OpBuilder &builder, ObjectFifoCreateOp op, DMAChannelDir channelDir, int channelIndex, int lockMode, BDDimLayoutArrayAttr dims)
	Function used to create a MemOp region with a DMA channel.

void	createShimDMA (DeviceOp &device, OpBuilder &builder, ObjectFifoCreateOp op, DMAChannelDir channelDir, int channelIndex, int lockMode, BDDimLayoutArrayAttr dims)
	Function used to create a ShimDMAOp region with a DMA channel.

void	createMemTileDMA (DeviceOp &device, OpBuilder &builder, ObjectFifoCreateOp op, DMAChannelDir channelDir, int channelIndex, int lockMode, BDDimLayoutArrayAttr dims, BDPadLayoutArrayAttr padDimensions)
	Function used to create a MemTileDMAOp region with a DMA channel.

int	computeLCM (std::set< int > values)

LogicalResult	unrollForLoops (DeviceOp &device, OpBuilder &builder, std::set< TileOp > objectFifoTiles)

void	updateGlobalNextIndex (OpBuilder &builder, ObjectFifoReleaseOp relOp, BufferOp globalNextIndex, arith::ConstantOp index, arith::ConstantOp size)

LogicalResult	dynamicGlobalObjectFifos (DeviceOp &device, OpBuilder &builder, std::set< TileOp > objectFifoTiles)

void	createUseLocks (OpBuilder &builder, ObjectFifoCreateOp op, ObjectFifoPort port, DenseMap< std::pair< ObjectFifoCreateOp, int >, int > &acc, int numLocks, LockAction lockAction)
	Function used to create a UseLockOp based on input parameters.

int	updateAndReturnIndex (DenseMap< std::pair< ObjectFifoCreateOp, int >, int > &map, std::pair< ObjectFifoCreateOp, int > pair)
	Function used to check whether op is already contained in map.

void	addExternalBuffer (ObjectFifoCreateOp fifo, ExternalBufferOp buff)
	Function used to add an external buffer to the externalBuffersPerFifo map.

void	detectExternalBuffers (DeviceOp &device, ObjectFifoCreateOp parent, ObjectFifoCreateOp child, Value tile)
	Function used to detect all external buffers associated with parent objectFifo and tile then map them to child objectFifo.

void	replaceSplitFifo (ObjectFifoCreateOp originalOp, ObjectFifoCreateOp newOp, TileOp tile)
	Function used to replace uses of split objectFifos.

int	findObjectFifoSize (DeviceOp &device, Value tile, ObjectFifoCreateOp objFifo)
	Function used to find the size of an objectFifo after split based on the maximum number of elements (of the original objectFifo) acquired by a process running on given tile.

void	createObjectFifoAllocationInfo (OpBuilder &builder, MLIRContext *ctx, FlatSymbolRefAttr obj_fifo, int colIndex, DMAChannelDir channelDir, int channelIndex, bool plio)
	Function used to generate, from an objectFifo with a shimTile endpoint, a shimDMAAllocationOp containing the channelDir, channelIndex and shimTile col assigned by the objectFifo lowering.

void	verifyObjectFifoLinks (DeviceOp &device)
	Function used to verify that an objectfifo is present in at most one ObjectFifoLinkOp.

void	assignDMAChannelIndices (DMAChannelAnalysis &dmaAnalysis, const std::map< ObjectFifoCreateOp, bool > &crossTileInfos, std::map< ObjectFifoCreateOp, int > &fifo_dma_channel_index, bool assignCrossTileOnly)
	Helper function to assign DMA channel indices for FIFOs based on cross-tile conditions.

void	runOnOperation () override

Public Attributes
DenseMap< ObjectFifoCreateOp, std::vector< BufferOp > >	buffersPerFifo

DenseMap< ObjectFifoCreateOp, std::vector< ExternalBufferOp > >	externalBuffersPerFifo

DenseMap< ObjectFifoCreateOp, std::vector< LockOp > >	locksPerFifo

std::vector< std::pair< ObjectFifoCreateOp, std::vector< ObjectFifoCreateOp > > >	splitFifos

DenseMap< ObjectFifoLinkOp, ObjectFifoCreateOp >	objFifoLinks

std::vector< ObjectFifoCreateOp >	splitBecauseLink

Detailed Description

Definition at line 144 of file AIEObjectFifoStatefulTransform.cpp.

Member Function Documentation

◆ addExternalBuffer()

void AIEObjectFifoStatefulTransformPass::addExternalBuffer	(	ObjectFifoCreateOp	fifo,
		ExternalBufferOp	buff
	)

inline

Function used to add an external buffer to the externalBuffersPerFifo map.

Definition at line 1550 of file AIEObjectFifoStatefulTransform.cpp.

◆ analyzeCrossTileFIFOBuffers()

std::map< ObjectFifoCreateOp, bool > AIEObjectFifoStatefulTransformPass::analyzeCrossTileFIFOBuffers ( )

inline

Function to analyze cross-tile buffer allocations in splitFifos Returns a simple map of (ObjectFifoCreateOp, bool) indicating cross-tile issues.

Definition at line 453 of file AIEObjectFifoStatefulTransform.cpp.

References buffersPerFifo, getOptionalLinkOp(), objFifoLinks, and splitFifos.

◆ assignDMAChannelIndices()

void AIEObjectFifoStatefulTransformPass::assignDMAChannelIndices	(	DMAChannelAnalysis &	dmaAnalysis,
		const std::map< ObjectFifoCreateOp, bool > &	crossTileInfos,
		std::map< ObjectFifoCreateOp, int > &	fifo_dma_channel_index,
		bool	assignCrossTileOnly
	)

inline

Helper function to assign DMA channel indices for FIFOs based on cross-tile conditions.

Definition at line 1660 of file AIEObjectFifoStatefulTransform.cpp.

References DMAChannelAnalysis::getDMAChannelIndex().

◆ calculateCurrentUsedMemory()

int AIEObjectFifoStatefulTransformPass::calculateCurrentUsedMemory	(	TileOp	targetTile,
		DenseMap< ObjectFifoCreateOp, std::vector< BufferOp > > &	buffersPerFifo,
		std::vector< BufferOp > &	buffers
	)

inline

Function to calculate total memory usage on a specific tile based on all buffers allocated to that tile from buffersPerFifo map.

Definition at line 421 of file AIEObjectFifoStatefulTransform.cpp.

References buffersPerFifo.

Referenced by createObjectFifoElements().

◆ checkAndApplyViaSharedMemAttribute()

void AIEObjectFifoStatefulTransformPass::checkAndApplyViaSharedMemAttribute	(	ObjectFifoCreateOp	createOp,
		int &	share_direction
	)

inline

-1 if the shared memory module is that of the first input tile,
1 if it is that of the second input tile

Definition at line 293 of file AIEObjectFifoStatefulTransform.cpp.

References isSharedMemory().

Referenced by requiresDMAs().

◆ computeLCM()

int AIEObjectFifoStatefulTransformPass::computeLCM ( std::set< int > values )

inline

Definition at line 1183 of file AIEObjectFifoStatefulTransform.cpp.

Referenced by unrollForLoops().

◆ createAIETileDMA()

void AIEObjectFifoStatefulTransformPass::createAIETileDMA	(	DeviceOp &	device,
		OpBuilder &	builder,
		ObjectFifoCreateOp	op,
		DMAChannelDir	channelDir,
		int	channelIndex,
		int	lockMode,
		BDDimLayoutArrayAttr	dims
	)

inline

Function used to create a MemOp region with a DMA channel.

It uses creatBdBlock(), see there for lockMode input.

Definition at line 832 of file AIEObjectFifoStatefulTransform.cpp.

References buffersPerFifo, findEndOpBlock(), getOptionalLinkOp(), and objFifoLinks.

Referenced by createDMA().

◆ createBd()

template<typename MyOp >

void AIEObjectFifoStatefulTransformPass::createBd	(	OpBuilder &	builder,
		LockOp	acqLock,
		int	acqMode,
		LockAction	acqLockAction,
		LockOp	relLock,
		int	relMode,
		MyOp	buff,
		int	offset,
		int	len,
		Block *	succ,
		BDDimLayoutArrayAttr	dims,
		BDPadLayoutArrayAttr	padDimensions
	)

inline

Function used to create a Bd block.

Definition at line 743 of file AIEObjectFifoStatefulTransform.cpp.

Referenced by createBdBlock().

◆ createBdBlock()

template<typename MyOp >

void AIEObjectFifoStatefulTransformPass::createBdBlock	(	OpBuilder &	builder,
		ObjectFifoCreateOp	op,
		int	lockMode,
		int	acqNum,
		int	relNum,
		MyOp	buff,
		int	offset,
		int	len,
		DMAChannelDir	channelDir,
		size_t	lockIndex,
		Block *	succ,
		BDDimLayoutArrayAttr	dims,
		BDPadLayoutArrayAttr	padDimensions,
		bool	distribOrJoin = `false`
	)

inline

Function used to create a Bd block.

If lockMode is 0 we create a consumerDMA (i.e. on producer tile) else a producerDMA (i.e. on consumer tile).

Definition at line 769 of file AIEObjectFifoStatefulTransform.cpp.

References createBd(), and locksPerFifo.

◆ createDMA()

void AIEObjectFifoStatefulTransformPass::createDMA	(	DeviceOp &	device,
		OpBuilder &	builder,
		ObjectFifoCreateOp	op,
		DMAChannelDir	channelDir,
		int	channelIndex,
		int	lockMode,
		BDDimLayoutArrayAttr	dims,
		BDPadLayoutArrayAttr	pad_dims
	)

inline

Function that either calls createAIETileDMA(), createShimDMA() or createMemTileDMA() based on op tile row value.

Definition at line 812 of file AIEObjectFifoStatefulTransform.cpp.

References createAIETileDMA(), createMemTileDMA(), and createShimDMA().

◆ createMemTileDMA()

void AIEObjectFifoStatefulTransformPass::createMemTileDMA	(	DeviceOp &	device,
		OpBuilder &	builder,
		ObjectFifoCreateOp	op,
		DMAChannelDir	channelDir,
		int	channelIndex,
		int	lockMode,
		BDDimLayoutArrayAttr	dims,
		BDPadLayoutArrayAttr	padDimensions
	)

inline

Function used to create a MemTileDMAOp region with a DMA channel.

It uses creatBdBlock(), see there for lockMode input.

Definition at line 1005 of file AIEObjectFifoStatefulTransform.cpp.

References buffersPerFifo, findEndOpBlock(), getOptionalLinkOp(), and objFifoLinks.

Referenced by createDMA().

◆ createObjectFifo()

ObjectFifoCreateOp AIEObjectFifoStatefulTransformPass::createObjectFifo	(	OpBuilder &	builder,
		AIEObjectFifoType	datatype,
		std::string	name,
		Value	prodTile,
		Value	consTile,
		Attribute	depth,
		BDDimLayoutArrayAttr	dimensionsToStream,
		BDDimLayoutArrayArrayAttr	dimensionsFromStreamPerConsumer
	)

inline

Definition at line 342 of file AIEObjectFifoStatefulTransform.cpp.

◆ createObjectFifoAllocationInfo()

void AIEObjectFifoStatefulTransformPass::createObjectFifoAllocationInfo	(	OpBuilder &	builder,
		MLIRContext *	ctx,
		FlatSymbolRefAttr	obj_fifo,
		int	colIndex,
		DMAChannelDir	channelDir,
		int	channelIndex,
		bool	plio
	)

inline

Function used to generate, from an objectFifo with a shimTile endpoint, a shimDMAAllocationOp containing the channelDir, channelIndex and shimTile col assigned by the objectFifo lowering.

Definition at line 1627 of file AIEObjectFifoStatefulTransform.cpp.

◆ createObjectFifoElements()

void AIEObjectFifoStatefulTransformPass::createObjectFifoElements	(	OpBuilder &	builder,
		LockAnalysis &	lockAnalysis,
		ObjectFifoCreateOp	op,
		int	share_direction
	)

inline

Function used to create objectFifo elements and their locks.

It maps the input objectFifo to associated buffers and locks.

Definition at line 546 of file AIEObjectFifoStatefulTransform.cpp.

References buffersPerFifo, calculateCurrentUsedMemory(), createObjectFifoLocks(), findOrCreateTile(), getOptionalLinkOp(), isSharedMemory(), locksPerFifo, and objFifoLinks.

◆ createObjectFifoLocks()

std::vector< LockOp > AIEObjectFifoStatefulTransformPass::createObjectFifoLocks	(	OpBuilder &	builder,
		LockAnalysis &	lockAnalysis,
		ObjectFifoCreateOp	op,
		int	numElem,
		int	joinDistribFactor,
		TileOp	creation_tile,
		int	repeatCount
	)

inline

Function used to create objectFifo locks based on target architecture.

Called by createObjectFifoElements().

Definition at line 355 of file AIEObjectFifoStatefulTransform.cpp.

References externalBuffersPerFifo, and LockAnalysis::getLockID().

Referenced by createObjectFifoElements().

◆ createShimDMA()

void AIEObjectFifoStatefulTransformPass::createShimDMA	(	DeviceOp &	device,
		OpBuilder &	builder,
		ObjectFifoCreateOp	op,
		DMAChannelDir	channelDir,
		int	channelIndex,
		int	lockMode,
		BDDimLayoutArrayAttr	dims
	)

inline

Function used to create a ShimDMAOp region with a DMA channel.

It uses creatBdBlock(), see there for lockMode input.

Definition at line 931 of file AIEObjectFifoStatefulTransform.cpp.

References externalBuffersPerFifo, and findEndOpBlock().

Referenced by createDMA().

◆ createUseLocks()

void AIEObjectFifoStatefulTransformPass::createUseLocks	(	OpBuilder &	builder,
		ObjectFifoCreateOp	op,
		ObjectFifoPort	port,
		DenseMap< std::pair< ObjectFifoCreateOp, int >, int > &	acc,
		int	numLocks,
		LockAction	lockAction
	)

inline

Function used to create a UseLockOp based on input parameters.

acc is an accumulator map that tracks the indices of the next locks to acquire (or release). Uses op to find index of acc for next lockID. Updates acc.

Definition at line 1469 of file AIEObjectFifoStatefulTransform.cpp.

References xilinx::AIE::port, and xilinx::AIE::AIETargetModel::UsesSemaphoreLocks.

◆ detectExternalBuffers()

void AIEObjectFifoStatefulTransformPass::detectExternalBuffers	(	DeviceOp &	device,
		ObjectFifoCreateOp	parent,
		ObjectFifoCreateOp	child,
		Value	tile
	)

inline

Function used to detect all external buffers associated with parent objectFifo and tile then map them to child objectFifo.

Definition at line 1560 of file AIEObjectFifoStatefulTransform.cpp.

◆ dynamicGlobalObjectFifos()

LogicalResult AIEObjectFifoStatefulTransformPass::dynamicGlobalObjectFifos	(	DeviceOp &	device,
		OpBuilder &	builder,
		std::set< TileOp >	objectFifoTiles
	)

inline

Definition at line 1328 of file AIEObjectFifoStatefulTransform.cpp.

References xilinx::AIE::port.

◆ findEndOpBlock()

Block * AIEObjectFifoStatefulTransformPass::findEndOpBlock ( Region & r )

inline

Function that returns a pointer to the block of a Region that contains the AIEEndOp.

Definition at line 733 of file AIEObjectFifoStatefulTransform.cpp.

Referenced by createAIETileDMA(), createMemTileDMA(), and createShimDMA().

◆ findObjectFifoSize()

int AIEObjectFifoStatefulTransformPass::findObjectFifoSize	(	DeviceOp &	device,
		Value	tile,
		ObjectFifoCreateOp	objFifo
	)

inline

Function used to find the size of an objectFifo after split based on the maximum number of elements (of the original objectFifo) acquired by a process running on given tile.

If no CoreOp exists for this tile return 0.

Definition at line 1588 of file AIEObjectFifoStatefulTransform.cpp.

◆ findOrCreateTile()

TileOp AIEObjectFifoStatefulTransformPass::findOrCreateTile	(	OpBuilder &	builder,
		DeviceOp &	dev,
		TileOp	hostTile,
		int	col,
		int	row
	)

inline

Helper function to find a tile at specific coordinates.

If a tile is not found, it creates a new one and returns it. hostTile is the original tile from which we are searching for neighbors. we create the new tile below the hostTile

Definition at line 514 of file AIEObjectFifoStatefulTransform.cpp.

References xilinx::AIE::col, and xilinx::AIE::row.

Referenced by createObjectFifoElements().

◆ getOptionalLinkOp()

std::optional< ObjectFifoLinkOp > AIEObjectFifoStatefulTransformPass::getOptionalLinkOp ( ObjectFifoCreateOp op )

inline

Function to retrieve ObjectFifoLinkOp of ObjectFifoCreateOp, if it belongs to one.

Definition at line 328 of file AIEObjectFifoStatefulTransform.cpp.

Referenced by analyzeCrossTileFIFOBuffers(), createAIETileDMA(), createMemTileDMA(), createObjectFifoElements(), and requiresDMAs().

◆ isSharedMemory()

bool AIEObjectFifoStatefulTransformPass::isSharedMemory	(	TileOp	a,
		TileOp	b,
		int *	share_direction
	)

inline

Function that returns true if two tiles in the AIE array share a memory module.

share_direction is equal to:

-1 if the shared memory module is that of the first input tile,
1 if it is that of the second input tile,
0 is no memory module is shared.

Definition at line 168 of file AIEObjectFifoStatefulTransform.cpp.

References xilinx::AIE::getTargetModel().

Referenced by checkAndApplyViaSharedMemAttribute(), createObjectFifoElements(), and requiresDMAs().

◆ replaceSplitFifo()

void AIEObjectFifoStatefulTransformPass::replaceSplitFifo	(	ObjectFifoCreateOp	originalOp,
		ObjectFifoCreateOp	newOp,
		TileOp	tile
	)

inline

Function used to replace uses of split objectFifos.

Definition at line 1570 of file AIEObjectFifoStatefulTransform.cpp.

◆ requiresDMAs()

bool AIEObjectFifoStatefulTransformPass::requiresDMAs	(	ObjectFifoCreateOp	createOp,
		int &	share_direction
	)

inline

Definition at line 205 of file AIEObjectFifoStatefulTransform.cpp.

References checkAndApplyViaSharedMemAttribute(), getOptionalLinkOp(), isSharedMemory(), and splitBecauseLink.

◆ runOnOperation()

void AIEObjectFifoStatefulTransformPass::runOnOperation ( )

inlineoverride

Definition at line 1697 of file AIEObjectFifoStatefulTransform.cpp.

References xilinx::AIE::port.

◆ unrollForLoops()

LogicalResult AIEObjectFifoStatefulTransformPass::unrollForLoops	(	DeviceOp &	device,
		OpBuilder &	builder,
		std::set< TileOp >	objectFifoTiles
	)

inline

Definition at line 1191 of file AIEObjectFifoStatefulTransform.cpp.

References computeLCM().

◆ updateAndReturnIndex()

int AIEObjectFifoStatefulTransformPass::updateAndReturnIndex	(	DenseMap< std::pair< ObjectFifoCreateOp, int >, int > &	map,
		std::pair< ObjectFifoCreateOp, int >	pair
	)

inline

Function used to check whether op is already contained in map.

If it is then return the associated int, if not create new entry and return 0.

Definition at line 1539 of file AIEObjectFifoStatefulTransform.cpp.

◆ updateGlobalNextIndex()

void AIEObjectFifoStatefulTransformPass::updateGlobalNextIndex	(	OpBuilder &	builder,
		ObjectFifoReleaseOp	relOp,
		BufferOp	globalNextIndex,
		arith::ConstantOp	index,
		arith::ConstantOp	size
	)
