xilinx::aievec::ConvertVectorToAIEVecOptions Struct Reference

Options for the "convert-vector-to-aievec" pipeline. More...

#include "aie/Dialect/AIEVec/Pipelines/Passes.h"

Inheritance diagram for xilinx::aievec::ConvertVectorToAIEVecOptions:

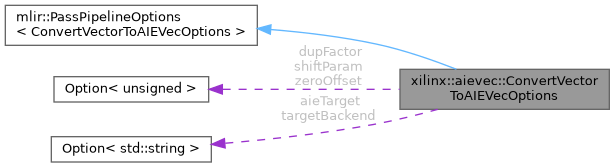

Collaboration diagram for xilinx::aievec::ConvertVectorToAIEVecOptions:

Public Member Functions
mlir::LogicalResult	parseFromString (mlir::StringRef options)
const LowerVectorToAIEVecOptions &	getLowerVectorToAIEVecOptions () const
const CanonicalizeVectorForAIEVecOptions &	getCanonicalizeVectorForAIEVecOptions () const
const OptimizeAIEVecOptions &	getOptimizeAIEVecOptions () const

Public Attributes
PassOptions::Option< unsigned >	shiftParam
PassOptions::Option< unsigned >	zeroOffset
PassOptions::Option< unsigned >	dupFactor
PassOptions::Option< std::string >	aieTarget
PassOptions::Option< std::string >	targetBackend
PassOptions::Option< bool >	enableBF16Emulation

Detailed Description

Options for the "convert-vector-to-aievec" pipeline.

Definition at line 99 of file Passes.h.

Member Function Documentation

getCanonicalizeVectorForAIEVecOptions()

const CanonicalizeVectorForAIEVecOptions & xilinx::aievec::ConvertVectorToAIEVecOptions::getCanonicalizeVectorForAIEVecOptions ( ) const

inline

Definition at line 156 of file Passes.h.

getLowerVectorToAIEVecOptions()

const LowerVectorToAIEVecOptions & xilinx::aievec::ConvertVectorToAIEVecOptions::getLowerVectorToAIEVecOptions ( ) const

inline

Definition at line 151 of file Passes.h.

getOptimizeAIEVecOptions()

const OptimizeAIEVecOptions & xilinx::aievec::ConvertVectorToAIEVecOptions::getOptimizeAIEVecOptions ( ) const

inline

Definition at line 160 of file Passes.h.

parseFromString()

mlir::LogicalResult xilinx::aievec::ConvertVectorToAIEVecOptions::parseFromString ( mlir::StringRef  options )

inline

Definition at line 136 of file Passes.h.

References xilinx::aievec::CanonicalizeVectorForAIEVecOptions::aieTarget, xilinx::aievec::LowerVectorToAIEVecOptions::aieTarget, xilinx::aievec::OptimizeAIEVecOptions::aieTarget, aieTarget, xilinx::aievec::CanonicalizeVectorForAIEVecOptions::enableBF16Emulation, enableBF16Emulation, xilinx::aievec::OptimizeAIEVecOptions::shiftParam, shiftParam, xilinx::aievec::CanonicalizeVectorForAIEVecOptions::targetBackend, xilinx::aievec::LowerVectorToAIEVecOptions::targetBackend, xilinx::aievec::OptimizeAIEVecOptions::targetBackend, and targetBackend.

Member Data Documentation

aieTarget

PassOptions::Option<std::string> xilinx::aievec::ConvertVectorToAIEVecOptions::aieTarget

Initial value:

{
      *this, "aie-target",
      llvm::cl::desc("Select AIE version: \"aie\" or \"aie2\". This will "
                     "determine the vector size and available operations."),
      llvm::cl::init("aie")}

Definition at line 117 of file Passes.h.

Referenced by parseFromString().

dupFactor

PassOptions::Option<unsigned> xilinx::aievec::ConvertVectorToAIEVecOptions::dupFactor

Initial value:

{
      *this, "dup-actor",
      llvm::cl::desc("Duplication factor for each value in convolution filter "
                     "(useful in 8x8 scheme)"),
      llvm::cl::init(2)}

Definition at line 112 of file Passes.h.

enableBF16Emulation

PassOptions::Option<bool> xilinx::aievec::ConvertVectorToAIEVecOptions::enableBF16Emulation

Initial value:

{
      *this, "bf16-emulation",
      llvm::cl::desc(
          "Emulate f32 vector arithmetic using bf16 operations. Inserts "
          "arith.truncf/arith.extf around f32 vector ops to compute in bf16. "
          "Trades precision for performance."),
      llvm::cl::init(false)}

Definition at line 128 of file Passes.h.

Referenced by parseFromString().

shiftParam

PassOptions::Option<unsigned> xilinx::aievec::ConvertVectorToAIEVecOptions::shiftParam

Initial value:

{
      *this, "shift",
      llvm::cl::desc("Shift parameter for rounding and saturation"),
      llvm::cl::init(0)}

Definition at line 103 of file Passes.h.

Referenced by parseFromString().

targetBackend

PassOptions::Option<std::string> xilinx::aievec::ConvertVectorToAIEVecOptions::targetBackend

Initial value:

{
      *this, "target-backend",
      llvm::cl::desc("Select translation backend: \"cpp\" or \"llvmir\". This "
                     "will determine the aievec operations used to convert "
                     "from vector dialect."),
      llvm::cl::init("cpp")}

Definition at line 122 of file Passes.h.

Referenced by parseFromString().

zeroOffset

PassOptions::Option<unsigned> xilinx::aievec::ConvertVectorToAIEVecOptions::zeroOffset

Initial value:

{
      *this, "zero-offset",
      llvm::cl::desc("Zero offset for indicating the location of zeroes in "
                     "convolution filter (useful for 16x16 scheme)"),
      llvm::cl::init(0)}

Definition at line 107 of file Passes.h.

---

The documentation for this struct was generated from the following file:

• include/aie/Dialect/AIEVec/Pipelines/Passes.h
