AIEGenerateColumnControlOverlay.h File Reference

#include "aie/Dialect/AIE/IR/AIEDialect.h"

Include dependency graph for AIEGenerateColumnControlOverlay.h:

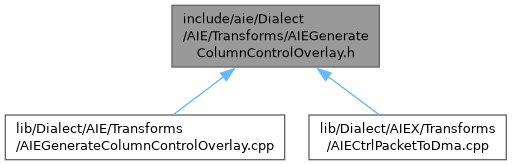

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	populateAIEColumnControlOverlay (DeviceOp &device)
DenseMap< int, int >	getRowToShimChanMap (const AIETargetModel &targetModel, WireBundle bundle)
DenseMap< TileID, int >	getTileToControllerIdMap (bool clColumnWiseUniqueIDs, const AIETargetModel &targetModel)

Function Documentation

getRowToShimChanMap()

DenseMap< int, int > getRowToShimChanMap	(	const AIETargetModel &	targetModel,
		WireBundle	bundle )

Definition at line 46 of file AIEGenerateColumnControlOverlay.cpp.

References xilinx::AIE::AIETargetModel::columns(), xilinx::AIE::AIETargetModel::getNumSourceShimMuxConnections(), xilinx::AIE::AIETargetModel::isShimNOCTile(), and xilinx::AIE::AIETargetModel::rows().

Referenced by AIECtrlPacketToDmaPass::runOnOperation().

getTileToControllerIdMap()

DenseMap< TileID, int > getTileToControllerIdMap	(	bool	clColumnWiseUniqueIDs,
		const AIETargetModel &	targetModel )

Definition at line 38 of file AIEGenerateColumnControlOverlay.cpp.

References xilinx::AIE::AIETargetModel::getTileToControllerIdMap().

Referenced by AIEAssignTileCtrlIDsPass::runOnOperation(), and AIECtrlPacketInferTilesPass::runOnOperation().

populateAIEColumnControlOverlay()

void populateAIEColumnControlOverlay

(

DeviceOp &

device

)

Definition at line 944 of file AIEGenerateColumnControlOverlay.cpp.
