xilinx::AIE::DynamicTileAnalysis Class Reference

#include "aie/Dialect/AIE/Transforms/AIEPathFinder.h"

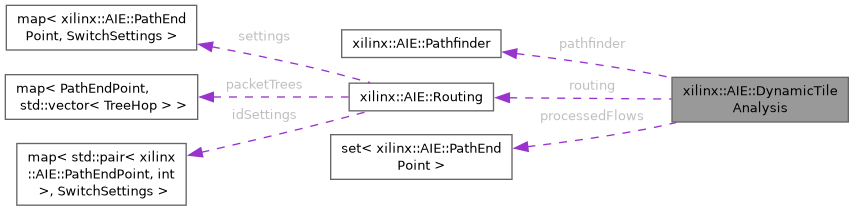

Collaboration diagram for xilinx::AIE::DynamicTileAnalysis:

Public Member Functions
llvm::Error	runAnalysis (DeviceOp &device)
int	getMaxCol () const
int	getMaxRow () const
TileOp	getTile (mlir::OpBuilder &builder, int col, int row)
TileOp	getTile (mlir::OpBuilder &builder, const TileID &tileId)
SwitchboxOp	getSwitchbox (mlir::OpBuilder &builder, int col, int row)
ShimMuxOp	getShimMux (mlir::OpBuilder &builder, int col)
TileOp	lookupTile (TileID tile) const
SwitchboxOp	lookupSwitchbox (TileID tile) const
ShimMuxOp	lookupShimMux (int col) const

Public Attributes
Pathfinder	pathfinder
Routing	routing
std::set< PathEndPoint >	processedFlows

Detailed Description

Definition at line 517 of file AIEPathFinder.h.

Member Function Documentation

getMaxCol()

int xilinx::AIE::DynamicTileAnalysis::getMaxCol ( ) const

inline

Definition at line 522 of file AIEPathFinder.h.

getMaxRow()

int xilinx::AIE::DynamicTileAnalysis::getMaxRow ( ) const

inline

Definition at line 523 of file AIEPathFinder.h.

getShimMux()

ShimMuxOp DynamicTileAnalysis::getShimMux	(	mlir::OpBuilder &	builder,
		int	col )

Definition at line 268 of file AIEPathFinder.cpp.

References getTile(), and lookupShimMux().

getSwitchbox()

SwitchboxOp DynamicTileAnalysis::getSwitchbox	(	mlir::OpBuilder &	builder,
		int	col,
		int	row )

Definition at line 254 of file AIEPathFinder.cpp.

References getTile(), and lookupSwitchbox().

getTile() [1/2]

TileOp xilinx::AIE::DynamicTileAnalysis::getTile	(	mlir::OpBuilder &	builder,
		const TileID &	tileId )

getTile() [2/2]

TileOp xilinx::AIE::DynamicTileAnalysis::getTile	(	mlir::OpBuilder &	builder,
		int	col,
		int	row )

Referenced by getShimMux(), and getSwitchbox().

lookupShimMux()

ShimMuxOp xilinx::AIE::DynamicTileAnalysis::lookupShimMux ( int col ) const

inline

Definition at line 535 of file AIEPathFinder.h.

Referenced by getShimMux().

lookupSwitchbox()

SwitchboxOp xilinx::AIE::DynamicTileAnalysis::lookupSwitchbox ( TileID tile ) const

inline

Definition at line 532 of file AIEPathFinder.h.

Referenced by getSwitchbox().

lookupTile()

TileOp xilinx::AIE::DynamicTileAnalysis::lookupTile ( TileID tile ) const

inline

Definition at line 531 of file AIEPathFinder.h.

runAnalysis()

llvm::Error DynamicTileAnalysis::runAnalysis

(

DeviceOp &

device

)

Definition at line 102 of file AIEPathFinder.cpp.

References pathfinder, and routing.

Member Data Documentation

pathfinder

Pathfinder xilinx::AIE::DynamicTileAnalysis::pathfinder

Definition at line 539 of file AIEPathFinder.h.

Referenced by runAnalysis().

processedFlows

std::set<PathEndPoint> xilinx::AIE::DynamicTileAnalysis::processedFlows

Definition at line 543 of file AIEPathFinder.h.

routing

Routing xilinx::AIE::DynamicTileAnalysis::routing

Definition at line 541 of file AIEPathFinder.h.

Referenced by runAnalysis().

---

The documentation for this class was generated from the following files:

• include/aie/Dialect/AIE/Transforms/AIEPathFinder.h
• lib/Dialect/AIE/Transforms/AIEPathFinder.cpp
