Lower incoming vector operations into their corresponding AIE vector intrinsics. More...

Inheritance diagram for LowerVectorToAIEVec:

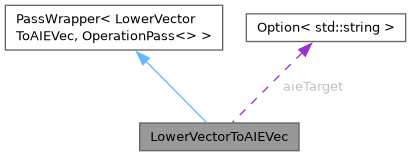

Collaboration diagram for LowerVectorToAIEVec:

Public Member Functions
	LowerVectorToAIEVec ()=default
	LowerVectorToAIEVec (const LowerVectorToAIEVec &pass)
	LowerVectorToAIEVec (const LowerVectorToAIEVecOptions &options)
StringRef	getArgument () const final
StringRef	getDescription () const final
void	getDependentDialects (DialectRegistry &registry) const override
void	runOnOperation () override

Public Attributes
Option< std::string >	aieTarget

Detailed Description

Lower incoming vector operations into their corresponding AIE vector intrinsics.

Definition at line 6876 of file VectorToAIEVecConversions.cpp.

Constructor & Destructor Documentation

◆ LowerVectorToAIEVec() [1/3]

LowerVectorToAIEVec::LowerVectorToAIEVec ( )

default

References LowerVectorToAIEVec().

Referenced by LowerVectorToAIEVec(), LowerVectorToAIEVec(), and LowerVectorToAIEVec().

◆ LowerVectorToAIEVec() [2/3]

LowerVectorToAIEVec::LowerVectorToAIEVec ( const LowerVectorToAIEVec & pass )

inline

Definition at line 6880 of file VectorToAIEVecConversions.cpp.

References LowerVectorToAIEVec().

◆ LowerVectorToAIEVec() [3/3]

LowerVectorToAIEVec::LowerVectorToAIEVec ( const LowerVectorToAIEVecOptions & options )

inline

Definition at line 6882 of file VectorToAIEVecConversions.cpp.

References aieTarget, xilinx::aievec::LowerVectorToAIEVecOptions::aieTarget, and LowerVectorToAIEVec().

Member Function Documentation

◆ getArgument()

StringRef LowerVectorToAIEVec::getArgument ( ) const

inlinefinal

Definition at line 6889 of file VectorToAIEVecConversions.cpp.

◆ getDependentDialects()

void LowerVectorToAIEVec::getDependentDialects ( DialectRegistry & registry ) const

inlineoverride

Definition at line 6893 of file VectorToAIEVecConversions.cpp.

◆ getDescription()

StringRef LowerVectorToAIEVec::getDescription ( ) const

inlinefinal

Definition at line 6890 of file VectorToAIEVecConversions.cpp.

◆ runOnOperation()

void LowerVectorToAIEVec::runOnOperation ( )

inlineoverride

Definition at line 6908 of file VectorToAIEVecConversions.cpp.

References xilinx::AIE, xilinx::AIE2, xilinx::AIE2P, aieTarget, and AIE2PElementwiseOps< arith::MulFOp, arith::DivFOp, arith::AddFOp, arith::SubFOp, arith::NegFOp, arith::TruncFOp, arith::ExtFOp, math::ExpOp, math::TanhOp, math::ErfOp, math::Exp2Op, arith::MaximumFOp, arith::MaxNumFOp, arith::MinimumFOp, arith::CmpFOp, arith::CmpIOp, arith::SelectOp, arith::AddIOp, arith::SubIOp, arith::MulIOp, arith::IndexCastOp >::markIllegal().

Member Data Documentation

◆ aieTarget

Option<std::string> LowerVectorToAIEVec::aieTarget

Initial value:

{
      *this, "aie-target",
      llvm::cl::desc(
          "Select AIE version: \"aie\", \"aie2\", or \"aie2p\". This will "
          "determine the vector size and available operations."),
      llvm::cl::init("aie")}

Definition at line 6901 of file VectorToAIEVecConversions.cpp.

Referenced by LowerVectorToAIEVec(), and runOnOperation().

The documentation for this struct was generated from the following file:

lib/Dialect/AIEVec/Transforms/VectorToAIEVecConversions.cpp
