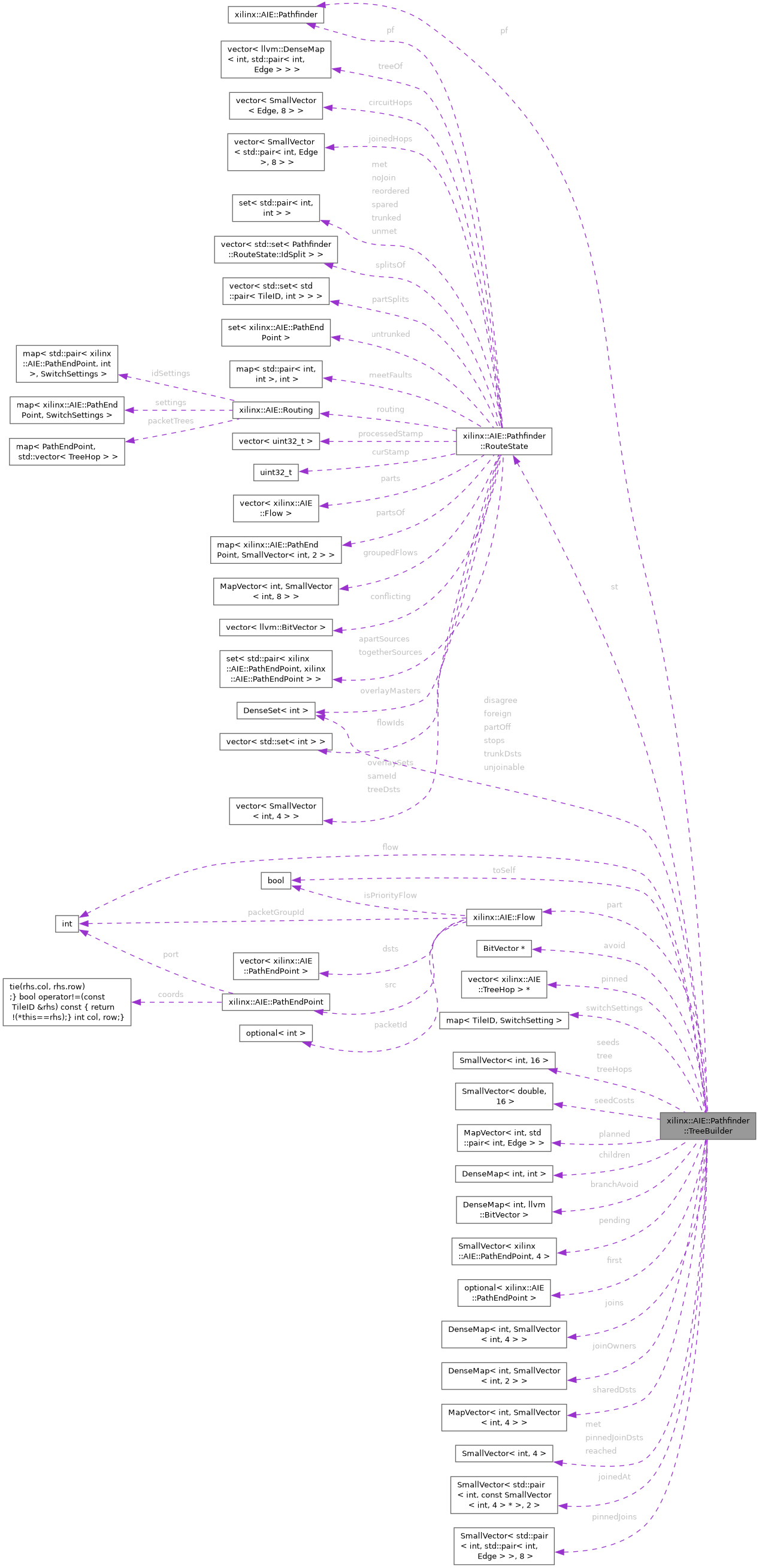

Collaboration diagram for xilinx::AIE::Pathfinder::TreeBuilder:

Public Member Functions
	TreeBuilder (Pathfinder &pf, RouteState &st, int flow)
int	dstState (const PathEndPoint &p) const
bool	isPending (int state) const
void	reach (ArrayRef< int > dsts)
bool	joinable (int at, ArrayRef< int > dsts) const
void	findJoins ()
void	meet ()
void	meet (int owner)
void	search (const llvm::DenseSet< int > &drop, ArrayRef< int > targets, const llvm::DenseSet< int > &off={})
bool	trace (int state)
llvm::DenseSet< int >	splitOff (int dst) const
llvm::DenseSet< int >	trunkOff (int dst) const
llvm::Error	placePinned ()
llvm::Error	grow ()
void	reroute ()
void	claim ()
bool	join (int state, int predId, const Edge &e)
void	joinTrees ()
void	record ()

Public Attributes
Pathfinder &	pf
RouteState &	st
int	flow
const Flow &	part
const llvm::BitVector *	avoid
const std::vector< TreeHop > *	pinned = nullptr
SwitchSettings	switchSettings
SmallVector< int, 16 >	tree
SmallVector< int, 16 >	treeHops
SmallVector< int, 16 >	seeds
SmallVector< double, 16 >	seedCosts
llvm::MapVector< int, std::pair< int, Edge > >	planned
llvm::DenseMap< int, int >	children
llvm::DenseMap< int, llvm::BitVector >	branchAvoid
SmallVector< PathEndPoint, 4 >	pending
bool	toSelf = false
std::optional< PathEndPoint >	first
llvm::DenseMap< int, SmallVector< int, 4 > >	joins
llvm::DenseMap< int, SmallVector< int, 2 > >	joinOwners
llvm::DenseSet< int >	stops
llvm::DenseSet< int >	unjoinable
llvm::MapVector< int, SmallVector< int, 4 > >	sharedDsts
llvm::DenseSet< int >	disagree
llvm::DenseSet< int >	foreign
SmallVector< int, 4 >	met
llvm::DenseSet< int >	partOff
llvm::DenseSet< int >	trunkDsts
SmallVector< int, 4 >	reached
SmallVector< std::pair< int, const SmallVector< int, 4 > * >, 2 >	joinedAt
SmallVector< std::pair< int, std::pair< int, Edge > >, 8 >	pinnedJoins
SmallVector< int, 4 >	pinnedJoinDsts

Detailed Description

Definition at line 1382 of file AIEPathFinder.cpp.

Constructor & Destructor Documentation

◆ TreeBuilder()

xilinx::AIE::Pathfinder::TreeBuilder::TreeBuilder	(	Pathfinder &	pf,
		RouteState &	st,
		int	flow )

Definition at line 1460 of file AIEPathFinder.cpp.

References avoid, flow, part, pending, pf, pinned, st, tree, and treeHops.

Member Function Documentation

◆ claim()

void xilinx::AIE::Pathfinder::TreeBuilder::claim ( )

◆ dstState()

int xilinx::AIE::Pathfinder::TreeBuilder::dstState ( const PathEndPoint & p ) const

inline

Definition at line 1387 of file AIEPathFinder.cpp.

References pf.

Referenced by findJoins(), grow(), isPending(), placePinned(), and reach().

◆ findJoins()

void xilinx::AIE::Pathfinder::TreeBuilder::findJoins ( )

Definition at line 1526 of file AIEPathFinder.cpp.

References disagree, xilinx::AIE::Flow::dsts, dstState(), flow, foreign, isPending(), joinOwners, joins, part, pf, sharedDsts, xilinx::AIE::Flow::src, st, stops, and unjoinable.

◆ grow()

llvm::Error xilinx::AIE::Pathfinder::TreeBuilder::grow ( )

Definition at line 1980 of file AIEPathFinder.cpp.

References children, xilinx::AIE::describeTilePort(), dstState(), first, joinable(), joinedAt, joins, meet(), part, pending, pf, reach(), reached, search(), splitOff(), trace(), and trunkOff().

◆ isPending()

bool xilinx::AIE::Pathfinder::TreeBuilder::isPending ( int state ) const

Definition at line 1506 of file AIEPathFinder.cpp.

References dstState(), part, pending, and toSelf.

Referenced by findJoins(), joinable(), and meet().

◆ join()

bool xilinx::AIE::Pathfinder::TreeBuilder::join	(	int	state,
		int	predId,
		const Edge &	e )

Definition at line 2185 of file AIEPathFinder.cpp.

References xilinx::AIE::SwitchboxConnect::addToUnit(), xilinx::AIE::PathEndPoint::coords, flow, part, pf, xilinx::AIE::PathEndPoint::port, st, and switchSettings.

Referenced by joinTrees().

◆ joinable()

bool xilinx::AIE::Pathfinder::TreeBuilder::joinable	(	int	at,
		ArrayRef< int >	dsts ) const

Definition at line 1521 of file AIEPathFinder.cpp.

References isPending(), and unjoinable.

Referenced by grow(), and meet().

◆ joinTrees()

void xilinx::AIE::Pathfinder::TreeBuilder::joinTrees ( )

Definition at line 2199 of file AIEPathFinder.cpp.

References flow, join(), joinedAt, joinOwners, pinnedJoinDsts, pinnedJoins, planned, and st.

◆ meet() [1/2]

void xilinx::AIE::Pathfinder::TreeBuilder::meet ( )

Definition at line 1613 of file AIEPathFinder.cpp.

References pf, and st.

Referenced by grow().

◆ meet() [2/2]

void xilinx::AIE::Pathfinder::TreeBuilder::meet ( int owner )

Definition at line 1640 of file AIEPathFinder.cpp.

References avoid, children, xilinx::AIE::SwitchboxConnect::circuitOnlyDst, xilinx::AIE::SwitchboxConnect::dstCoords, flow, foreign, isPending(), joinable(), joinedAt, joins, met, part, partOff, pf, planned, reach(), search(), sharedDsts, xilinx::AIE::Flow::src, xilinx::AIE::SwitchboxConnect::srcCoords, xilinx::AIE::SwitchboxConnect::srcPorts, st, stops, trace(), tree, and treeHops.

◆ placePinned()

llvm::Error xilinx::AIE::Pathfinder::TreeBuilder::placePinned ( )

Definition at line 1934 of file AIEPathFinder.cpp.

References xilinx::AIE::describeTilePort(), xilinx::AIE::SwitchboxConnect::dstCoords, dstState(), part, pending, pf, pinned, pinnedJoinDsts, pinnedJoins, planned, reached, xilinx::AIE::SwitchboxConnect::srcCoords, and toSelf.

◆ reach()

void xilinx::AIE::Pathfinder::TreeBuilder::reach ( ArrayRef< int > dsts )

Definition at line 1513 of file AIEPathFinder.cpp.

References dstState(), part, pending, and toSelf.

Referenced by grow(), and meet().

◆ record()

void xilinx::AIE::Pathfinder::TreeBuilder::record ( )

Definition at line 2226 of file AIEPathFinder.cpp.

References xilinx::AIE::SwitchSetting::dsts, flow, part, xilinx::AIE::SwitchSetting::srcs, st, and switchSettings.

◆ reroute()

void xilinx::AIE::Pathfinder::TreeBuilder::reroute ( )

Definition at line 2047 of file AIEPathFinder.cpp.

References avoid, branchAvoid, children, part, pf, planned, reached, search(), splitOff(), st, trace(), tree, treeHops, and trunkOff().

◆ search()

void xilinx::AIE::Pathfinder::TreeBuilder::search	(	const llvm::DenseSet< int > &	drop,
		ArrayRef< int >	targets,
		const llvm::DenseSet< int > &	off = {} )

Definition at line 1792 of file AIEPathFinder.cpp.

References avoid, branchAvoid, flow, part, pf, planned, seedCosts, seeds, st, stops, tree, and treeHops.

Referenced by grow(), meet(), and reroute().

◆ splitOff()

llvm::DenseSet< int > xilinx::AIE::Pathfinder::TreeBuilder::splitOff ( int dst ) const

Definition at line 1873 of file AIEPathFinder.cpp.

References flow, partOff, pf, planned, reached, and st.

Referenced by grow(), and reroute().

◆ trace()

bool xilinx::AIE::Pathfinder::TreeBuilder::trace ( int state )

Definition at line 1847 of file AIEPathFinder.cpp.

References children, pf, planned, st, tree, and treeHops.

Referenced by grow(), meet(), and reroute().

◆ trunkOff()

llvm::DenseSet< int > xilinx::AIE::Pathfinder::TreeBuilder::trunkOff ( int dst ) const

Definition at line 1910 of file AIEPathFinder.cpp.

References planned, reached, tree, and trunkDsts.

Referenced by grow(), and reroute().

Member Data Documentation

◆ avoid

const llvm::BitVector* xilinx::AIE::Pathfinder::TreeBuilder::avoid

Definition at line 1413 of file AIEPathFinder.cpp.

Referenced by meet(), reroute(), search(), and TreeBuilder().

◆ branchAvoid

llvm::DenseMap<int, llvm::BitVector> xilinx::AIE::Pathfinder::TreeBuilder::branchAvoid

Definition at line 1429 of file AIEPathFinder.cpp.

Referenced by reroute(), and search().

◆ children

llvm::DenseMap<int, int> xilinx::AIE::Pathfinder::TreeBuilder::children

Definition at line 1425 of file AIEPathFinder.cpp.

Referenced by grow(), meet(), reroute(), and trace().

◆ disagree

llvm::DenseSet<int> xilinx::AIE::Pathfinder::TreeBuilder::disagree

Definition at line 1445 of file AIEPathFinder.cpp.

Referenced by findJoins().

◆ first

std::optional<PathEndPoint> xilinx::AIE::Pathfinder::TreeBuilder::first

Definition at line 1433 of file AIEPathFinder.cpp.

Referenced by claim(), and grow().

◆ flow

int xilinx::AIE::Pathfinder::TreeBuilder::flow

Definition at line 1411 of file AIEPathFinder.cpp.

Referenced by claim(), findJoins(), join(), joinTrees(), meet(), record(), search(), splitOff(), and TreeBuilder().

◆ foreign

llvm::DenseSet<int> xilinx::AIE::Pathfinder::TreeBuilder::foreign

Definition at line 1445 of file AIEPathFinder.cpp.

Referenced by findJoins(), and meet().

◆ joinedAt

SmallVector<std::pair<int, const SmallVector<int, 4> *>, 2> xilinx::AIE::Pathfinder::TreeBuilder::joinedAt

Definition at line 1455 of file AIEPathFinder.cpp.

Referenced by grow(), joinTrees(), and meet().

◆ joinOwners

llvm::DenseMap<int, SmallVector<int, 2> > xilinx::AIE::Pathfinder::TreeBuilder::joinOwners

Definition at line 1440 of file AIEPathFinder.cpp.

Referenced by findJoins(), and joinTrees().

◆ joins

llvm::DenseMap<int, SmallVector<int, 4> > xilinx::AIE::Pathfinder::TreeBuilder::joins

Definition at line 1439 of file AIEPathFinder.cpp.

Referenced by findJoins(), grow(), and meet().

◆ met

SmallVector<int, 4> xilinx::AIE::Pathfinder::TreeBuilder::met

Definition at line 1447 of file AIEPathFinder.cpp.

Referenced by claim(), and meet().

◆ part

const Flow& xilinx::AIE::Pathfinder::TreeBuilder::part

Definition at line 1412 of file AIEPathFinder.cpp.

Referenced by claim(), findJoins(), grow(), isPending(), join(), meet(), placePinned(), reach(), record(), reroute(), search(), and TreeBuilder().

◆ partOff

llvm::DenseSet<int> xilinx::AIE::Pathfinder::TreeBuilder::partOff

Definition at line 1450 of file AIEPathFinder.cpp.

Referenced by meet(), and splitOff().

◆ pending

SmallVector<PathEndPoint, 4> xilinx::AIE::Pathfinder::TreeBuilder::pending

Definition at line 1430 of file AIEPathFinder.cpp.

Referenced by grow(), isPending(), placePinned(), reach(), and TreeBuilder().

◆ pf

Pathfinder& xilinx::AIE::Pathfinder::TreeBuilder::pf

Definition at line 1409 of file AIEPathFinder.cpp.

Referenced by claim(), dstState(), findJoins(), grow(), join(), meet(), meet(), placePinned(), reroute(), search(), splitOff(), trace(), and TreeBuilder().

◆ pinned

const std::vector<TreeHop>* xilinx::AIE::Pathfinder::TreeBuilder::pinned = nullptr

Definition at line 1415 of file AIEPathFinder.cpp.

Referenced by placePinned(), and TreeBuilder().

◆ pinnedJoinDsts

SmallVector<int, 4> xilinx::AIE::Pathfinder::TreeBuilder::pinnedJoinDsts

Definition at line 1457 of file AIEPathFinder.cpp.

Referenced by joinTrees(), and placePinned().

◆ pinnedJoins

SmallVector<std::pair<int, std::pair<int, Edge> >, 8> xilinx::AIE::Pathfinder::TreeBuilder::pinnedJoins

Definition at line 1456 of file AIEPathFinder.cpp.

Referenced by joinTrees(), and placePinned().

◆ planned

llvm::MapVector<int, std::pair<int, Edge> > xilinx::AIE::Pathfinder::TreeBuilder::planned

Definition at line 1424 of file AIEPathFinder.cpp.

Referenced by claim(), joinTrees(), meet(), placePinned(), reroute(), search(), splitOff(), trace(), and trunkOff().

◆ reached

SmallVector<int, 4> xilinx::AIE::Pathfinder::TreeBuilder::reached

Definition at line 1454 of file AIEPathFinder.cpp.

Referenced by claim(), grow(), placePinned(), reroute(), splitOff(), and trunkOff().

◆ seedCosts

SmallVector<double, 16> xilinx::AIE::Pathfinder::TreeBuilder::seedCosts

Definition at line 1420 of file AIEPathFinder.cpp.

Referenced by search().

◆ seeds

SmallVector<int, 16> xilinx::AIE::Pathfinder::TreeBuilder::seeds

Definition at line 1419 of file AIEPathFinder.cpp.

Referenced by search().

◆ sharedDsts

llvm::MapVector<int, SmallVector<int, 4> > xilinx::AIE::Pathfinder::TreeBuilder::sharedDsts

Definition at line 1444 of file AIEPathFinder.cpp.

Referenced by findJoins(), and meet().

◆ st

RouteState& xilinx::AIE::Pathfinder::TreeBuilder::st

Definition at line 1410 of file AIEPathFinder.cpp.

Referenced by claim(), findJoins(), join(), joinTrees(), meet(), meet(), record(), reroute(), search(), splitOff(), trace(), and TreeBuilder().

◆ stops

llvm::DenseSet<int> xilinx::AIE::Pathfinder::TreeBuilder::stops

Definition at line 1441 of file AIEPathFinder.cpp.

Referenced by findJoins(), meet(), and search().

◆ switchSettings

SwitchSettings xilinx::AIE::Pathfinder::TreeBuilder::switchSettings

Definition at line 1416 of file AIEPathFinder.cpp.

Referenced by claim(), join(), and record().

◆ toSelf

bool xilinx::AIE::Pathfinder::TreeBuilder::toSelf = false

Definition at line 1431 of file AIEPathFinder.cpp.

Referenced by claim(), isPending(), placePinned(), and reach().

◆ tree

SmallVector<int, 16> xilinx::AIE::Pathfinder::TreeBuilder::tree

Definition at line 1418 of file AIEPathFinder.cpp.

Referenced by meet(), reroute(), search(), trace(), TreeBuilder(), and trunkOff().

◆ treeHops

SmallVector<int, 16> xilinx::AIE::Pathfinder::TreeBuilder::treeHops
