xilinx::AIE::RegisterInfo Struct Reference

Register information. More...

#include "aie/Dialect/AIE/Util/AIERegisterDatabase.h"

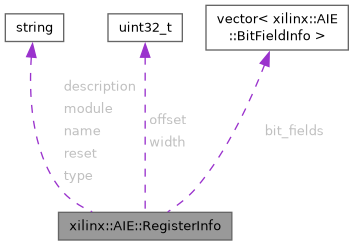

Collaboration diagram for xilinx::AIE::RegisterInfo:

Public Member Functions
const BitFieldInfo *	getField (llvm::StringRef fieldName) const

Public Attributes
std::string	name
uint32_t	offset
std::string	module
uint32_t	width
std::string	type
std::string	reset
std::string	description
std::vector< BitFieldInfo >	bit_fields

Detailed Description

Register information.

Definition at line 39 of file AIERegisterDatabase.h.

Member Function Documentation

getField()

const BitFieldInfo * RegisterInfo::getField

(

llvm::StringRef

fieldName

)

const

Definition at line 25 of file AIERegisterDatabase.cpp.

References bit_fields.

Referenced by AIEDMATasksToNPUPass::emitOutOfOrderChannelEnable(), CoreResetToMaskWrite32Pattern::matchAndRewrite(), and DmaChannelResetToMaskWrite32Pattern::matchAndRewrite().

Member Data Documentation

bit_fields

std::vector<BitFieldInfo> xilinx::AIE::RegisterInfo::bit_fields

Definition at line 47 of file AIERegisterDatabase.h.

Referenced by getField().

description

std::string xilinx::AIE::RegisterInfo::description

Definition at line 46 of file AIERegisterDatabase.h.

module

std::string xilinx::AIE::RegisterInfo::module

Definition at line 42 of file AIERegisterDatabase.h.

name

std::string xilinx::AIE::RegisterInfo::name

Definition at line 40 of file AIERegisterDatabase.h.

offset

uint32_t xilinx::AIE::RegisterInfo::offset

Definition at line 41 of file AIERegisterDatabase.h.

Referenced by CoreResetToMaskWrite32Pattern::matchAndRewrite().

reset

std::string xilinx::AIE::RegisterInfo::reset

Definition at line 45 of file AIERegisterDatabase.h.

type

std::string xilinx::AIE::RegisterInfo::type

Definition at line 44 of file AIERegisterDatabase.h.

width

uint32_t xilinx::AIE::RegisterInfo::width

Definition at line 43 of file AIERegisterDatabase.h.

---

The documentation for this struct was generated from the following files:

• include/aie/Dialect/AIE/Util/AIERegisterDatabase.h
• lib/Dialect/AIE/Util/AIERegisterDatabase.cpp
