xilinx::AIE::StreamHop Struct Reference

A switchbox a stream passes: the port it enters by and, where it is packet switched there, the arbiter it takes. More...

#include "aie/Dialect/AIE/Transforms/AIEStreamDependencyAnalysis.h"

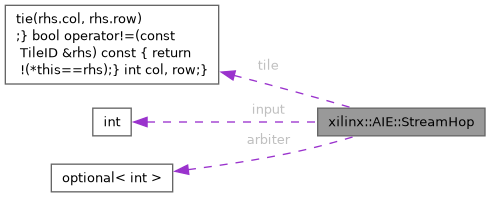

Collaboration diagram for xilinx::AIE::StreamHop:

Public Attributes
TileID	tile
Port	input
std::optional< int >	arbiter

Detailed Description

A switchbox a stream passes: the port it enters by and, where it is packet switched there, the arbiter it takes.

Definition at line 69 of file AIEStreamDependencyAnalysis.h.

Member Data Documentation

arbiter

std::optional<int> xilinx::AIE::StreamHop::arbiter

Definition at line 72 of file AIEStreamDependencyAnalysis.h.

input

Port xilinx::AIE::StreamHop::input

Definition at line 71 of file AIEStreamDependencyAnalysis.h.

tile

TileID xilinx::AIE::StreamHop::tile

Definition at line 70 of file AIEStreamDependencyAnalysis.h.

---

The documentation for this struct was generated from the following file:

• include/aie/Dialect/AIE/Transforms/AIEStreamDependencyAnalysis.h
