xilinx::AIE::StreamWaitGraph::Agent Struct Reference

A core, a DMA channel, or a tile's controller. More...

#include "aie/Dialect/AIE/Transforms/AIEStreamDependencyAnalysis.h"

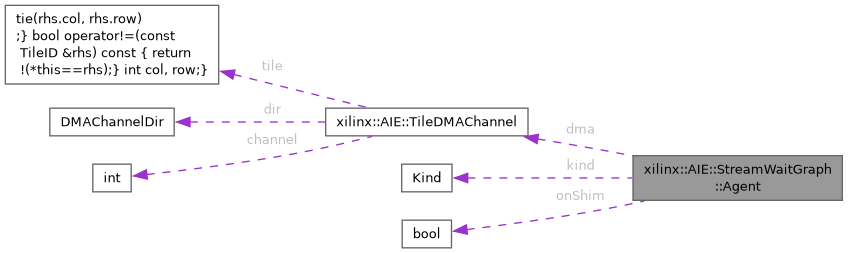

Collaboration diagram for xilinx::AIE::StreamWaitGraph::Agent:

Public Types
enum class	Kind { Channel , Core , Controller }

Static Public Member Functions
static Agent	core (TileID tile)
static Agent	controller (TileID tile)
static Agent	channel (const TileDMAChannel &dma)
static std::optional< Agent >	at (const StreamEndpoint &endpoint, bool sending)
	Each agent at a stream endpoint: the core, DMA channel or controller pushing data into (sending) or pulling data out of the fabric there.

Public Attributes
TileDMAChannel	dma
Kind	kind = Kind::Channel
bool	onShim = false

Detailed Description

A core, a DMA channel, or a tile's controller.

A core's or controller's dma names only its tile.

Definition at line 219 of file AIEStreamDependencyAnalysis.h.

Member Enumeration Documentation

Kind

enum class xilinx::AIE::StreamWaitGraph::Agent::Kind

strong

Enumerator
Channel
Core
Controller

Definition at line 220 of file AIEStreamDependencyAnalysis.h.

Member Function Documentation

at()

std::optional< StreamWaitGraph::Agent > StreamWaitGraph::Agent::at ( const StreamEndpoint & endpoint, bool sending )

static

Each agent at a stream endpoint: the core, DMA channel or controller pushing data into (sending) or pulling data out of the fabric there.

Definition at line 1078 of file AIEStreamDependencyAnalysis.cpp.

References channel(), controller(), core(), xilinx::AIE::StreamEndpoint::port, and xilinx::AIE::StreamEndpoint::tile.

Referenced by xilinx::AIE::StreamWaitGraph::agentAt(), and xilinx::AIE::StreamWaitGraph::StreamWaitGraph().

channel()

Agent xilinx::AIE::StreamWaitGraph::Agent::channel ( const TileDMAChannel & dma )

inlinestatic

Definition at line 231 of file AIEStreamDependencyAnalysis.h.

References dma.

Referenced by at(), and xilinx::AIE::StreamWaitGraph::StreamWaitGraph().

controller()

Agent xilinx::AIE::StreamWaitGraph::Agent::controller ( TileID tile )

inlinestatic

Definition at line 228 of file AIEStreamDependencyAnalysis.h.

References Controller.

Referenced by at().

core()

Agent xilinx::AIE::StreamWaitGraph::Agent::core ( TileID tile )

inlinestatic

Definition at line 225 of file AIEStreamDependencyAnalysis.h.

References Core.

Referenced by at(), and xilinx::AIE::StreamWaitGraph::StreamWaitGraph().

Member Data Documentation

dma

TileDMAChannel xilinx::AIE::StreamWaitGraph::Agent::dma

Definition at line 221 of file AIEStreamDependencyAnalysis.h.

Referenced by channel(), xilinx::AIE::StreamWaitGraph::describe(), and xilinx::AIE::StreamWaitGraph::StreamWaitGraph().

kind

Kind xilinx::AIE::StreamWaitGraph::Agent::kind = Kind::Channel

Definition at line 222 of file AIEStreamDependencyAnalysis.h.

Referenced by xilinx::AIE::StreamWaitGraph::describe(), and xilinx::AIE::StreamWaitGraph::StreamWaitGraph().

onShim

bool xilinx::AIE::StreamWaitGraph::Agent::onShim = false

Definition at line 223 of file AIEStreamDependencyAnalysis.h.

---
