AMR V80 - Base Logic (V80-Specific)¶

For common base design concepts, see Common Base Design Philosophy

This document contains V80-specific implementation details and deltas from the common baseline.

V80-Specific Overview¶

The V80 base logic implementation uses CPM5 hardened PCIe with minimal PL IP instantiation.

V80-Specific Characteristics:

✓ CPM5 provides hardened PCIe Gen5 x8 and QDMA
✓ Minimal PL usage - only test hierarchy (SmartConnect + GPIO)
✓ No PCIe IP in PL - all PCIe functionality is hardened in CPM5
✓ Device IDs: 0x50b4 (PF0), 0x50b5 (PF1)

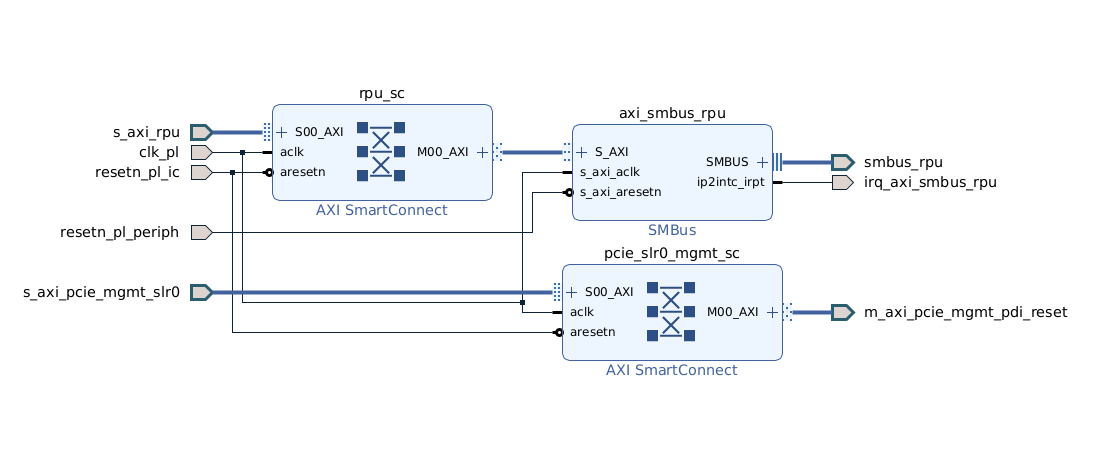

../../images/1107375471.png)

PF0 Configuration (V80-Specific)¶

CPM5 PF0 Settings¶

PF0 CPM5 Configuration:

Device ID: 0x50b4
Base Class: 12 (Processing Accelerators)
Sub Class: 00
Subsystem ID: 0x000e
Vendor ID: 0x10ee

PF0 BAR Configuration¶

BAR	Size	Type	Prefetchable	Status
BAR0	16 MB	64-bit, AXI_Bridge_Master	No	Enabled
BAR2	4 KB	32-bit, AXI_Bridge_Master	No	Disabled

Address Mapping:

PCIe BAR0 Address: 0x201_0000_0000
AXI Target Address: 0x0000020100000000
NoC Aperture: 16 MB (configured in axi_noc_cips M00_AXI)
NoC Remap: 0x201_0000_0000 → 0x1000_0000 (local address space)

PF0 Features¶

Feature	V80 Setting
MSI-X	Disabled
Function Level Reset	Disabled
Extended Config Interface	Disabled (CFG_EXT_IF = 0)
Extended Config Space	None
ARI Capability	Disabled
ACS Capability	Disabled

PF0 Current Usage¶

Base Design:

No hardware IP connected to PF0 address space
Address space reserved for future management IP
Management handled by firmware on RPU

Future Expansion Potential:

SMBus controller
Identification/UUID ROMs
Management register blocks
Custom control interfaces

PF1 Configuration (V80-Specific)¶

CPM5 PF1 Settings¶

PF1 CPM5 Configuration:

Device ID: 0x50b5
Base Class: 12 (Processing Accelerators)
Sub Class: 00
Subsystem ID: 0x000e
Subsystem Vendor ID: 0x10ee
Vendor ID: 0x10ee

PF1 BAR Configuration¶

BAR	Size	Type	Prefetchable	Status
BAR0	512 KB	64-bit, DMA	Yes	Enabled
BAR2	256 MB	64-bit, AXI_Bridge_Master	Yes	Enabled

Address Mapping (BAR2):

PCIe BAR2 Address: 0x202_0000_0000
AXI Target Address: 0x0000020200000000
NoC Aperture: 1 GB (configured in axi_noc_cips M01_AXI)
Routes to: PF1 hierarchical block

DMA (BAR0):

512 KB address space for QDMA registers and descriptors
CPM5 hardened QDMA engine

PF1 Features¶

Feature	V80 Setting
MSI-X	Enabled (8 vectors)
MSI-X Table Offset	0x50000
MSI-X Table Size	8 entries
Function Level Reset	Disabled
DMA Type	CPM5 QDMA (hardened)

PF1 Hierarchical Block¶

The PF1 hierarchy is common across boards but with V80-specific clock/address configuration:

Component	IP Type	Instance Name	V80 Configuration
SmartConnect	xilinx.com:ip:smartconnect	smartconnect_pf1	1 slave (S00_AXI), 1 master (M00_AXI)
AXI GPIO	xilinx.com:ip:axi_gpio	axi_gpio_test_pf1	Default: 0x000000F1, bidirectional
Processor System Reset	xilinx.com:ip:proc_sys_reset:5.0	proc_sys_reset_0	100 MHz clock domain

V80-Specific Configuration:

Clock: pl0_ref_clk (100 MHz) from CIPS
Reset: pl0_resetn from CIPS → proc_sys_reset_0
Connected to: axi_noc_cips M01_AXI
GPIO loopback: gpio_io_o → gpio_io_i

CPM5 Hardened PCIe (V80-Specific)¶

Key V80 Advantage: PCIe and QDMA are hardened silicon in CPM5.

CPM5 Benefits¶

✓ Zero PL resource usage for PCIe/QDMA
✓ Higher performance - Gen5 x8 (32 GT/s)
✓ Lower latency - hardened data path
✓ Hardened NoC connection - NMU_128 integrated
✓ Simpler timing closure - no PCIe in fabric

CPM5 Configuration Summary¶

Parameter	V80 Value
PCIe Controller	Controller 1 (bottom x8 lanes)
Link Speed	32.0 GT/s (Gen 5)
Lane Width	X8
Functional Mode	QDMA
Mode Selection	Advanced
Total PFs Enabled	2 (TL_PF_ENABLE_REG = 2)
MSI-X Options	MSI-X Internal

Reference: See V80 CIPS Configuration for complete CPM5 settings.

NoC Connection (V80-Specific)¶

CPM5 to NoC¶

V80 Hardened Connection:

CPM5 connects to NoC via hardened NMU_128 interfaces
No PL IP required for PCIe to NoC routing
Direct connection to axi_noc_cips

AXI NoC CIPS Master Interfaces (V80):

Interface	Aperture	Address	Remap	Target
M00_AXI	16 MB	0x201_0000_0000	→ 0x1000_0000	PF0 address space (empty)
M01_AXI	1 GB	0x202_0000_0000	(none)	PF1 hierarchy (GPIO test)

Reference: See V80 NoC Configuration for complete NoC topology.

PL Resource Usage (V80-Specific)¶

V80 Base Design PL IP:

1× smartconnect (PF1)
1× axi_gpio (PF1)
1× proc_sys_reset (PF1)

Estimated Resources:

LUTs: < 2K (minimal - no PCIe/DMA in PL)
BRAMs: < 5
No QDMA resources needed (hardened in CPM5)

SMBus IP (Available but Not Instantiated)¶

Status: SMBus v1.1 IP is in the IP repository but not instantiated in V80 base design.

SMBus IP Details:

Vendor: xilinx.com
Version: 1.1
Implementation: SystemVerilog (smbus_v1_1_vl_rfs.sv)
Interface: S_AXI (AXI4-Lite slave)
Location: ip/smbus_v1_1/
Licensing: Requires download from https://www.xilinx.com/member/v80.html

To Add SMBus:

Connect to M_AXI_LPD interface
Wire IRQ 1 interrupt to CIPS
Update address map
Required for designs needing SMBus board management

Note: The SMBus IP must be present in iprepo directory for Vivado build to succeed.
