xilinx::AIE::AIEPathfinderPass Struct Reference

Overall Flow: rewrite switchboxes to assign unassigned connections, ensure this can be done concurrently ( by different threads) More...

#include "aie/Dialect/AIE/Transforms/AIEPasses.h"

Inheritance diagram for xilinx::AIE::AIEPathfinderPass:

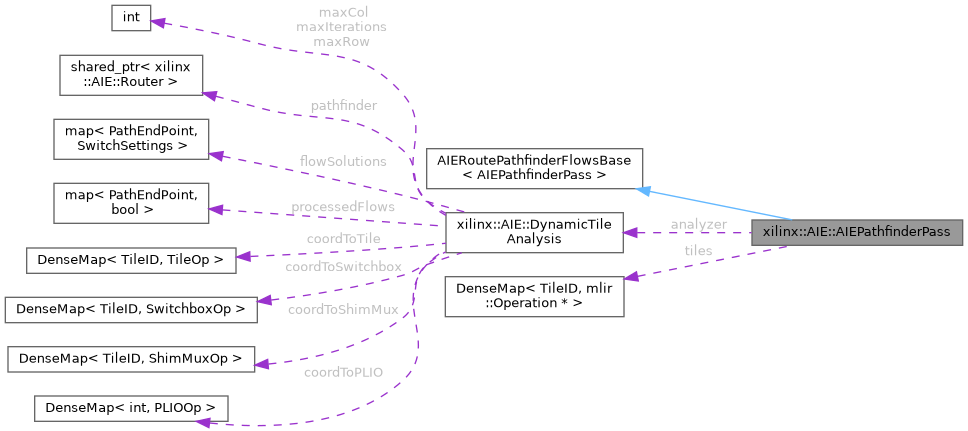

Collaboration diagram for xilinx::AIE::AIEPathfinderPass:

Public Types
typedef std::pair< mlir::Operation *, Port >	PhysPort

Public Member Functions
	AIEPathfinderPass ()=default
	AIEPathfinderPass (DynamicTileAnalysis analyzer)
void	runOnOperation () override
void	runOnFlow (DeviceOp d)
void	runOnPacketFlow (DeviceOp d, mlir::OpBuilder &builder)
bool	findPathToDest (SwitchSettings settings, TileID currTile, WireBundle currDestBundle, int currDestChannel, TileID finalTile, WireBundle finalDestBundle, int finalDestChannel)

Public Attributes
DynamicTileAnalysis	analyzer
mlir::DenseMap< TileID, mlir::Operation * >	tiles

Detailed Description

Overall Flow: rewrite switchboxes to assign unassigned connections, ensure this can be done concurrently ( by different threads)

1. Goal is to rewrite all flows in the device into switchboxes + shim-mux
2. multiple passes of the rewrite pattern rewriting streamswitch configurations to routes
3. rewrite flows to stream-switches using 'weights' from analysis pass.
4. check a region is legal
5. rewrite stream-switches (within a bounding box) back to flows

Definition at line 64 of file AIEPasses.h.

Member Typedef Documentation

PhysPort

typedef std::pair<mlir::Operation *, Port> xilinx::AIE::AIEPathfinderPass::PhysPort

Definition at line 77 of file AIEPasses.h.

Constructor & Destructor Documentation

AIEPathfinderPass() [1/2]

xilinx::AIE::AIEPathfinderPass::AIEPathfinderPass ( )

default

AIEPathfinderPass() [2/2]

xilinx::AIE::AIEPathfinderPass::AIEPathfinderPass ( DynamicTileAnalysis  analyzer )

inline

Definition at line 70 of file AIEPasses.h.

Member Function Documentation

findPathToDest()

bool xilinx::AIE::AIEPathfinderPass::findPathToDest	(	SwitchSettings	settings,
		TileID	currTile,
		WireBundle	currDestBundle,
		int	currDestChannel,
		TileID	finalTile,
		WireBundle	finalDestBundle,
		int	finalDestChannel
	)

Definition at line 211 of file AIECreatePathFindFlows.cpp.

References findPathToDest(), and xilinx::AIE::src.

Referenced by findPathToDest(), and runOnPacketFlow().

runOnFlow()

void xilinx::AIE::AIEPathfinderPass::runOnFlow

(

DeviceOp

d

)

Definition at line 177 of file AIECreatePathFindFlows.cpp.

References analyzer.

runOnOperation()

void xilinx::AIE::AIEPathfinderPass::runOnOperation ( )

override

Definition at line 938 of file AIECreatePathFindFlows.cpp.

References xilinx::AIE::col, and xilinx::AIE::row.

runOnPacketFlow()

void xilinx::AIE::AIEPathfinderPass::runOnPacketFlow	(	DeviceOp	d,
		mlir::OpBuilder &	builder
	)

Definition at line 262 of file AIECreatePathFindFlows.cpp.

References analyzer, xilinx::AIE::col, findPathToDest(), xilinx::AIE::DynamicTileAnalysis::flowSolutions, xilinx::AIE::DynamicTileAnalysis::getTile(), xilinx::AIE::DynamicTileAnalysis::processedFlows, xilinx::AIE::row, xilinx::AIE::src, xilinx::AIE::srcCoords, and tiles.

Member Data Documentation

analyzer

DynamicTileAnalysis xilinx::AIE::AIEPathfinderPass::analyzer

Definition at line 66 of file AIEPasses.h.

Referenced by runOnFlow(), and runOnPacketFlow().

tiles

mlir::DenseMap<TileID, mlir::Operation *> xilinx::AIE::AIEPathfinderPass::tiles

Definition at line 67 of file AIEPasses.h.

Referenced by runOnPacketFlow().

---

The documentation for this struct was generated from the following files:

• include/aie/Dialect/AIE/Transforms/AIEPasses.h
• lib/Dialect/AIE/Transforms/AIECreatePathFindFlows.cpp
