#include "mlir-c/IR.h"

Include dependency graph for TargetModel.h:

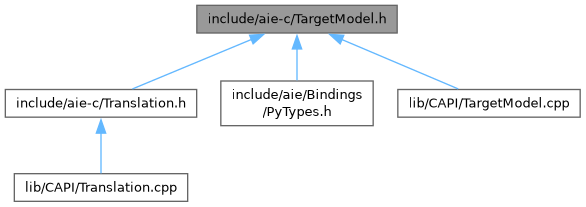

This graph shows which files directly or indirectly include this file:

Macros
#define	DEFINE_C_API_STRUCT(name, storage)

Functions
	DEFINE_C_API_STRUCT (AieTargetModel, uint64_t)
MLIR_CAPI_EXPORTED AieTargetModel	aieGetTargetModel (uint32_t device)
MLIR_CAPI_EXPORTED uint32_t	aieGetTargetModelAddressGenGranularity (AieTargetModel targetModel)
	Returns the data bus width for the target model.
MLIR_CAPI_EXPORTED int	aieTargetModelColumns (AieTargetModel targetModel)
	Returns the number of columns in the target model.
MLIR_CAPI_EXPORTED int	aieTargetModelRows (AieTargetModel targetModel)
	Returns the number of rows in the target model.
MLIR_CAPI_EXPORTED bool	aieTargetModelIsNPU (AieTargetModel targetModel)
	Returns true if this is an NPU target model.
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetTargetArch (AieTargetModel targetModel)
	Returns the AIE architecture (as the underlying value of xilinx::AIE::AIEArch: AIE1=1, AIE2=2, AIE2p=3).
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetTileType (AieTargetModel targetModel, int col, int row)
	Returns the tile type for the given coordinates.
MLIR_CAPI_EXPORTED bool	aieTargetModelIsCoreTile (AieTargetModel targetModel, int col, int row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsMemTile (AieTargetModel targetModel, int col, int row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsShimNOCTile (AieTargetModel targetModel, int col, int row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsShimPLTile (AieTargetModel targetModel, int col, int row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsShimNOCorPLTile (AieTargetModel targetModel, int col, int row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsInternal (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsWest (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsEast (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsNorth (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsSouth (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsMemWest (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsMemEast (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsMemNorth (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsMemSouth (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)
MLIR_CAPI_EXPORTED bool	aieTargetModelIsLegalMemAffinity (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMemSouthBaseAddress (AieTargetModel targetModel)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMemNorthBaseAddress (AieTargetModel targetModel)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMemEastBaseAddress (AieTargetModel targetModel)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMemWestBaseAddress (AieTargetModel targetModel)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetLocalMemorySize (AieTargetModel targetModel)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetDefaultCoreStackSize (AieTargetModel targetModel)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumLocks (AieTargetModel targetModel, int col, int row)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumBDs (AieTargetModel targetModel, int col, int row)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMaxLockValue (AieTargetModel targetModel)
	Largest value a lock register holds.
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMaxRepeatCount (AieTargetModel targetModel)
	Largest repeat count one DMA task queue push can carry (unsupported = 0).
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetDmaTaskQueueDepth (AieTargetModel targetModel)
	How many tasks one DMA channel's task queue holds (unsupported = 0).
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetDmaBdWrapBits (AieTargetModel targetModel, int col, int row)
	Field widths of a DMA buffer descriptor, which differ by tile type.
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetDmaBdStepBits (AieTargetModel targetModel, int col, int row)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetDmaBdIterBits (AieTargetModel targetModel, int col, int row)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumMemTileRows (AieTargetModel targetModel)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMemTileSize (AieTargetModel targetModel)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumBanks (AieTargetModel targetModel, int col, int row)
MLIR_CAPI_EXPORTED bool	aieDmaBdFits (uint32_t device, int col, int row, MlirType elementType, int64_t offset, const int64_t sizes, const int64_t strides, int64_t len)
	Whether one DMA buffer descriptor of tile (col, row) on device holds the pattern, as aie-normalize-dma-bd-dims and the DMA lowerings take it.
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMaxChannelNumForAdjacentTile (AieTargetModel targetModel, int col, int row)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumDestSwitchboxConnections (AieTargetModel targetModel, int col, int row, uint32_t bundle)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumSourceSwitchboxConnections (AieTargetModel targetModel, int col, int row, uint32_t bundle)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumDestShimMuxConnections (AieTargetModel targetModel, int col, int row, uint32_t bundle)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumSourceShimMuxConnections (AieTargetModel targetModel, int col, int row, uint32_t bundle)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetColumnShift (AieTargetModel targetModel)
MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetRowShift (AieTargetModel targetModel)

Macro Definition Documentation

◆ DEFINE_C_API_STRUCT

#define DEFINE_C_API_STRUCT	(		name,
			storage )

Value:

  struct name {                                                                \
    storage d;                                                                 \
  };                                                                           \
  typedef struct name name

Definition at line 30 of file TargetModel.h.

Function Documentation

◆ aieDmaBdFits()

MLIR_CAPI_EXPORTED bool aieDmaBdFits	(	uint32_t	device,
		int	col,
		int	row,
		MlirType	elementType,
		int64_t	offset,
		const int64_t *	sizes,
		const int64_t *	strides,
		int64_t	len )

Whether one DMA buffer descriptor of tile (col, row) on device holds the pattern, as aie-normalize-dma-bd-dims and the DMA lowerings take it.

sizes and strides are four dimensions, outermost first, and len the descriptor's length, all in elements of elementType.

Definition at line 199 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getAddressGenGranularity(), xilinx::AIE::AIETargetModel::getDmaBdMaxLen(), xilinx::AIEX::isLinearModeTransfer(), xilinx::AIE::normalizedBDDims(), xilinx::AIEX::NdDmaPattern::offsets, xilinx::AIEX::patternPassesVerification(), xilinx::AIEX::NdDmaPattern::sizes, and xilinx::AIEX::NdDmaPattern::strides.

◆ aieGetTargetModel()

MLIR_CAPI_EXPORTED AieTargetModel aieGetTargetModel ( uint32_t device )

Definition at line 32 of file TargetModel.cpp.

References xilinx::AIE::getTargetModel().

◆ aieGetTargetModelAddressGenGranularity()

MLIR_CAPI_EXPORTED uint32_t aieGetTargetModelAddressGenGranularity ( AieTargetModel targetModel )

Returns the data bus width for the target model.

Definition at line 37 of file TargetModel.cpp.

◆ aieTargetModelColumns()

MLIR_CAPI_EXPORTED int aieTargetModelColumns ( AieTargetModel targetModel )

Returns the number of columns in the target model.

Definition at line 41 of file TargetModel.cpp.

◆ aieTargetModelGetColumnShift()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetColumnShift ( AieTargetModel targetModel )

Definition at line 303 of file TargetModel.cpp.

◆ aieTargetModelGetDefaultCoreStackSize()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetDefaultCoreStackSize ( AieTargetModel targetModel )

Definition at line 146 of file TargetModel.cpp.

◆ aieTargetModelGetDmaBdIterBits()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetDmaBdIterBits	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Definition at line 181 of file TargetModel.cpp.

◆ aieTargetModelGetDmaBdStepBits()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetDmaBdStepBits	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Definition at line 176 of file TargetModel.cpp.

◆ aieTargetModelGetDmaBdWrapBits()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetDmaBdWrapBits	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Field widths of a DMA buffer descriptor, which differ by tile type.

The step field counts address granules, not elements – see aieGetTargetModelAddressGenGranularity.

Definition at line 171 of file TargetModel.cpp.

◆ aieTargetModelGetDmaTaskQueueDepth()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetDmaTaskQueueDepth ( AieTargetModel targetModel )

How many tasks one DMA channel's task queue holds (unsupported = 0).

Definition at line 167 of file TargetModel.cpp.

◆ aieTargetModelGetLocalMemorySize()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetLocalMemorySize ( AieTargetModel targetModel )

Definition at line 142 of file TargetModel.cpp.

◆ aieTargetModelGetMaxChannelNumForAdjacentTile()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMaxChannelNumForAdjacentTile	(	AieTargetModel	targetModel,
		int	col,
		int	row )

◆ aieTargetModelGetMaxLockValue()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMaxLockValue ( AieTargetModel targetModel )

Largest value a lock register holds.

Definition at line 159 of file TargetModel.cpp.

◆ aieTargetModelGetMaxRepeatCount()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMaxRepeatCount ( AieTargetModel targetModel )

Largest repeat count one DMA task queue push can carry (unsupported = 0).

Definition at line 163 of file TargetModel.cpp.

◆ aieTargetModelGetMemEastBaseAddress()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMemEastBaseAddress ( AieTargetModel targetModel )

Definition at line 134 of file TargetModel.cpp.

◆ aieTargetModelGetMemNorthBaseAddress()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMemNorthBaseAddress ( AieTargetModel targetModel )

Definition at line 130 of file TargetModel.cpp.

◆ aieTargetModelGetMemSouthBaseAddress()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMemSouthBaseAddress ( AieTargetModel targetModel )

Definition at line 126 of file TargetModel.cpp.

◆ aieTargetModelGetMemTileSize()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMemTileSize ( AieTargetModel targetModel )

Definition at line 190 of file TargetModel.cpp.

◆ aieTargetModelGetMemWestBaseAddress()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMemWestBaseAddress ( AieTargetModel targetModel )

Definition at line 138 of file TargetModel.cpp.

◆ aieTargetModelGetNumBanks()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumBanks	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Definition at line 194 of file TargetModel.cpp.

◆ aieTargetModelGetNumBDs()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumBDs	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Definition at line 155 of file TargetModel.cpp.

◆ aieTargetModelGetNumDestShimMuxConnections()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumDestShimMuxConnections	(	AieTargetModel	targetModel,
		int	col,
		int	row,
		uint32_t	bundle )

Definition at line 279 of file TargetModel.cpp.

◆ aieTargetModelGetNumDestSwitchboxConnections()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumDestSwitchboxConnections	(	AieTargetModel	targetModel,
		int	col,
		int	row,
		uint32_t	bundle )

Definition at line 263 of file TargetModel.cpp.

◆ aieTargetModelGetNumLocks()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumLocks	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Definition at line 150 of file TargetModel.cpp.

◆ aieTargetModelGetNumMemTileRows()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumMemTileRows ( AieTargetModel targetModel )

Definition at line 186 of file TargetModel.cpp.

◆ aieTargetModelGetNumSourceShimMuxConnections()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumSourceShimMuxConnections	(	AieTargetModel	targetModel,
		int	col,
		int	row,
		uint32_t	bundle )

Definition at line 287 of file TargetModel.cpp.

◆ aieTargetModelGetNumSourceSwitchboxConnections()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumSourceSwitchboxConnections	(	AieTargetModel	targetModel,
		int	col,
		int	row,
		uint32_t	bundle )

Definition at line 271 of file TargetModel.cpp.

◆ aieTargetModelGetRowShift()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetRowShift ( AieTargetModel targetModel )

Definition at line 307 of file TargetModel.cpp.

◆ aieTargetModelGetTargetArch()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetTargetArch ( AieTargetModel targetModel )

Returns the AIE architecture (as the underlying value of xilinx::AIE::AIEArch: AIE1=1, AIE2=2, AIE2p=3).

Definition at line 299 of file TargetModel.cpp.

◆ aieTargetModelGetTileType()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetTileType	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Returns the tile type for the given coordinates.

Definition at line 49 of file TargetModel.cpp.

◆ aieTargetModelIsCoreTile()

MLIR_CAPI_EXPORTED bool aieTargetModelIsCoreTile	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Definition at line 54 of file TargetModel.cpp.

◆ aieTargetModelIsEast()

MLIR_CAPI_EXPORTED bool aieTargetModelIsEast	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row )

Definition at line 85 of file TargetModel.cpp.

◆ aieTargetModelIsInternal()

MLIR_CAPI_EXPORTED bool aieTargetModelIsInternal	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row )

Definition at line 75 of file TargetModel.cpp.

◆ aieTargetModelIsLegalMemAffinity()

MLIR_CAPI_EXPORTED bool aieTargetModelIsLegalMemAffinity	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row )

Definition at line 120 of file TargetModel.cpp.

◆ aieTargetModelIsMemEast()

MLIR_CAPI_EXPORTED bool aieTargetModelIsMemEast	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row )

Definition at line 105 of file TargetModel.cpp.

◆ aieTargetModelIsMemNorth()

MLIR_CAPI_EXPORTED bool aieTargetModelIsMemNorth	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row )

Definition at line 110 of file TargetModel.cpp.

◆ aieTargetModelIsMemSouth()

MLIR_CAPI_EXPORTED bool aieTargetModelIsMemSouth	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row )

Definition at line 115 of file TargetModel.cpp.

◆ aieTargetModelIsMemTile()

MLIR_CAPI_EXPORTED bool aieTargetModelIsMemTile	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Definition at line 58 of file TargetModel.cpp.

◆ aieTargetModelIsMemWest()

MLIR_CAPI_EXPORTED bool aieTargetModelIsMemWest	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row )

Definition at line 100 of file TargetModel.cpp.

◆ aieTargetModelIsNorth()

MLIR_CAPI_EXPORTED bool aieTargetModelIsNorth	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row )

Definition at line 90 of file TargetModel.cpp.

◆ aieTargetModelIsNPU()

MLIR_CAPI_EXPORTED bool aieTargetModelIsNPU ( AieTargetModel targetModel )

Returns true if this is an NPU target model.

Definition at line 295 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::IsNPU.

◆ aieTargetModelIsShimNOCorPLTile()

MLIR_CAPI_EXPORTED bool aieTargetModelIsShimNOCorPLTile	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Definition at line 70 of file TargetModel.cpp.

◆ aieTargetModelIsShimNOCTile()

MLIR_CAPI_EXPORTED bool aieTargetModelIsShimNOCTile	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Definition at line 62 of file TargetModel.cpp.

◆ aieTargetModelIsShimPLTile()

MLIR_CAPI_EXPORTED bool aieTargetModelIsShimPLTile	(	AieTargetModel	targetModel,
		int	col,
		int	row )

Definition at line 66 of file TargetModel.cpp.

◆ aieTargetModelIsSouth()

MLIR_CAPI_EXPORTED bool aieTargetModelIsSouth	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row )

Definition at line 95 of file TargetModel.cpp.

◆ aieTargetModelIsWest()

MLIR_CAPI_EXPORTED bool aieTargetModelIsWest	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row )

Definition at line 80 of file TargetModel.cpp.

◆ aieTargetModelRows()

MLIR_CAPI_EXPORTED int aieTargetModelRows ( AieTargetModel targetModel )

Returns the number of rows in the target model.

Definition at line 45 of file TargetModel.cpp.

◆ DEFINE_C_API_STRUCT()

DEFINE_C_API_STRUCT	(	AieTargetModel	,
		uint64_t	)

Macros

Functions
