dmesg Log¶

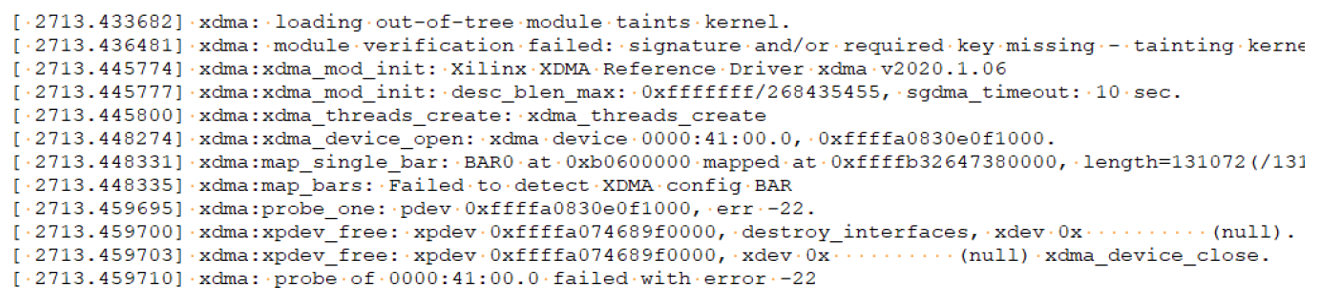

The screenshost below from an XDMA dmesg log shows driver load error. Look out for any similar issue with the QDMA driver load.

docs/QDMA_Subsystem_for_PCIExpress_IP_Driver/qdma_debug_flow/src/images/driver_load_error.png

The screenshot below shows data transfer error

docs/QDMA_Subsystem_for_PCIExpress_IP_Driver/qdma_debug_flow/src/images/transfer_error.png
