#include "mlir-c/IR.h"

Include dependency graph for TargetModel.h:

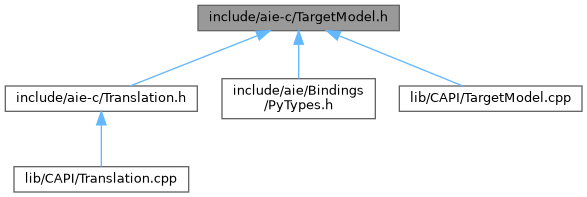

This graph shows which files directly or indirectly include this file:

Macros
#define	DEFINE_C_API_STRUCT(name, storage)

Functions
	DEFINE_C_API_STRUCT (AieTargetModel, uint64_t)

MLIR_CAPI_EXPORTED AieTargetModel	aieGetTargetModel (uint32_t device)

MLIR_CAPI_EXPORTED uint32_t	aieGetTargetModelAddressGenGranularity (AieTargetModel targetModel)
	Returns the data bus width for the target model.

MLIR_CAPI_EXPORTED int	aieTargetModelColumns (AieTargetModel targetModel)
	Returns the number of columns in the target model.

MLIR_CAPI_EXPORTED int	aieTargetModelRows (AieTargetModel targetModel)
	Returns the number of rows in the target model.

MLIR_CAPI_EXPORTED bool	aieTargetModelIsNPU (AieTargetModel targetModel)
	Returns true if this is an NPU target model.

MLIR_CAPI_EXPORTED bool	aieTargetModelIsCoreTile (AieTargetModel targetModel, int col, int row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsMemTile (AieTargetModel targetModel, int col, int row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsShimNOCTile (AieTargetModel targetModel, int col, int row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsShimPLTile (AieTargetModel targetModel, int col, int row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsShimNOCorPLTile (AieTargetModel targetModel, int col, int row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsInternal (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsWest (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsEast (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsNorth (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsSouth (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsMemWest (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsMemEast (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsMemNorth (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsMemSouth (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)

MLIR_CAPI_EXPORTED bool	aieTargetModelIsLegalMemAffinity (AieTargetModel targetModel, int src_col, int src_row, int dst_col, int dst_row)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMemSouthBaseAddress (AieTargetModel targetModel)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMemNorthBaseAddress (AieTargetModel targetModel)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMemEastBaseAddress (AieTargetModel targetModel)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMemWestBaseAddress (AieTargetModel targetModel)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetLocalMemorySize (AieTargetModel targetModel)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumLocks (AieTargetModel targetModel, int col, int row)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumBDs (AieTargetModel targetModel, int col, int row)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumMemTileRows (AieTargetModel targetModel)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMemTileSize (AieTargetModel targetModel)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumBanks (AieTargetModel targetModel, int col, int row)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetMaxChannelNumForAdjacentTile (AieTargetModel targetModel, int col, int row)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumDestSwitchboxConnections (AieTargetModel targetModel, int col, int row, uint32_t bundle)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumSourceSwitchboxConnections (AieTargetModel targetModel, int col, int row, uint32_t bundle)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumDestShimMuxConnections (AieTargetModel targetModel, int col, int row, uint32_t bundle)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetNumSourceShimMuxConnections (AieTargetModel targetModel, int col, int row, uint32_t bundle)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetColumnShift (AieTargetModel targetModel)

MLIR_CAPI_EXPORTED uint32_t	aieTargetModelGetRowShift (AieTargetModel targetModel)

Macro Definition Documentation

◆ DEFINE_C_API_STRUCT

#define DEFINE_C_API_STRUCT	(	name,
		storage
	)

Value:

  struct name {                                                                \
    storage d;                                                                 \
  };                                                                           \
  typedef struct name name

Definition at line 33 of file TargetModel.h.

Function Documentation

◆ aieGetTargetModel()

MLIR_CAPI_EXPORTED AieTargetModel aieGetTargetModel ( uint32_t device )

Definition at line 26 of file TargetModel.cpp.

References xilinx::AIE::getTargetModel().

◆ aieGetTargetModelAddressGenGranularity()

MLIR_CAPI_EXPORTED uint32_t aieGetTargetModelAddressGenGranularity ( AieTargetModel targetModel )

Returns the data bus width for the target model.

Definition at line 31 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getAddressGenGranularity().

◆ aieTargetModelColumns()

MLIR_CAPI_EXPORTED int aieTargetModelColumns ( AieTargetModel targetModel )

Returns the number of columns in the target model.

Definition at line 35 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::columns().

◆ aieTargetModelGetColumnShift()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetColumnShift ( AieTargetModel targetModel )

Definition at line 199 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getColumnShift().

◆ aieTargetModelGetLocalMemorySize()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetLocalMemorySize ( AieTargetModel targetModel )

Definition at line 131 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getLocalMemorySize().

◆ aieTargetModelGetMaxChannelNumForAdjacentTile()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMaxChannelNumForAdjacentTile	(	AieTargetModel	targetModel,
		int	col,
		int	row
	)

◆ aieTargetModelGetMemEastBaseAddress()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMemEastBaseAddress ( AieTargetModel targetModel )

Definition at line 123 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getMemEastBaseAddress().

◆ aieTargetModelGetMemNorthBaseAddress()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMemNorthBaseAddress ( AieTargetModel targetModel )

Definition at line 119 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getMemNorthBaseAddress().

◆ aieTargetModelGetMemSouthBaseAddress()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMemSouthBaseAddress ( AieTargetModel targetModel )

Definition at line 115 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getMemSouthBaseAddress().

◆ aieTargetModelGetMemTileSize()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMemTileSize ( AieTargetModel targetModel )

Definition at line 148 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getMemTileSize().

◆ aieTargetModelGetMemWestBaseAddress()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetMemWestBaseAddress ( AieTargetModel targetModel )

Definition at line 127 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getMemWestBaseAddress().

◆ aieTargetModelGetNumBanks()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumBanks	(	AieTargetModel	targetModel,
		int	col,
		int	row
	)

Definition at line 152 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getNumBanks().

◆ aieTargetModelGetNumBDs()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumBDs	(	AieTargetModel	targetModel,
		int	col,
		int	row
	)

Definition at line 140 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getNumBDs().

◆ aieTargetModelGetNumDestShimMuxConnections()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumDestShimMuxConnections	(	AieTargetModel	targetModel,
		int	col,
		int	row,
		uint32_t	bundle
	)

Definition at line 179 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getNumDestShimMuxConnections().

◆ aieTargetModelGetNumDestSwitchboxConnections()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumDestSwitchboxConnections	(	AieTargetModel	targetModel,
		int	col,
		int	row,
		uint32_t	bundle
	)

Definition at line 163 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getNumDestSwitchboxConnections().

◆ aieTargetModelGetNumLocks()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumLocks	(	AieTargetModel	targetModel,
		int	col,
		int	row
	)

Definition at line 135 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getNumLocks().

◆ aieTargetModelGetNumMemTileRows()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumMemTileRows ( AieTargetModel targetModel )

Definition at line 144 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getNumMemTileRows().

◆ aieTargetModelGetNumSourceShimMuxConnections()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumSourceShimMuxConnections	(	AieTargetModel	targetModel,
		int	col,
		int	row,
		uint32_t	bundle
	)

Definition at line 187 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getNumSourceShimMuxConnections().

◆ aieTargetModelGetNumSourceSwitchboxConnections()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetNumSourceSwitchboxConnections	(	AieTargetModel	targetModel,
		int	col,
		int	row,
		uint32_t	bundle
	)

Definition at line 171 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getNumSourceSwitchboxConnections().

◆ aieTargetModelGetRowShift()

MLIR_CAPI_EXPORTED uint32_t aieTargetModelGetRowShift ( AieTargetModel targetModel )

Definition at line 203 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::getRowShift().

◆ aieTargetModelIsCoreTile()

MLIR_CAPI_EXPORTED bool aieTargetModelIsCoreTile	(	AieTargetModel	targetModel,
		int	col,
		int	row
	)

Definition at line 43 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isCoreTile().

◆ aieTargetModelIsEast()

MLIR_CAPI_EXPORTED bool aieTargetModelIsEast	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row
	)

Definition at line 74 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isEast().

◆ aieTargetModelIsInternal()

MLIR_CAPI_EXPORTED bool aieTargetModelIsInternal	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row
	)

Definition at line 64 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isInternal().

◆ aieTargetModelIsLegalMemAffinity()

MLIR_CAPI_EXPORTED bool aieTargetModelIsLegalMemAffinity	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row
	)

Definition at line 109 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isLegalMemAffinity().

◆ aieTargetModelIsMemEast()

MLIR_CAPI_EXPORTED bool aieTargetModelIsMemEast	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row
	)

Definition at line 94 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isMemEast().

◆ aieTargetModelIsMemNorth()

MLIR_CAPI_EXPORTED bool aieTargetModelIsMemNorth	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row
	)

Definition at line 99 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isMemNorth().

◆ aieTargetModelIsMemSouth()

MLIR_CAPI_EXPORTED bool aieTargetModelIsMemSouth	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row
	)

Definition at line 104 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isMemSouth().

◆ aieTargetModelIsMemTile()

MLIR_CAPI_EXPORTED bool aieTargetModelIsMemTile	(	AieTargetModel	targetModel,
		int	col,
		int	row
	)

Definition at line 47 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isMemTile().

◆ aieTargetModelIsMemWest()

MLIR_CAPI_EXPORTED bool aieTargetModelIsMemWest	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row
	)

Definition at line 89 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isMemWest().

◆ aieTargetModelIsNorth()

MLIR_CAPI_EXPORTED bool aieTargetModelIsNorth	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row
	)

Definition at line 79 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isNorth().

◆ aieTargetModelIsNPU()

MLIR_CAPI_EXPORTED bool aieTargetModelIsNPU ( AieTargetModel targetModel )

Returns true if this is an NPU target model.

Definition at line 195 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::hasProperty(), and xilinx::AIE::AIETargetModel::IsNPU.

◆ aieTargetModelIsShimNOCorPLTile()

MLIR_CAPI_EXPORTED bool aieTargetModelIsShimNOCorPLTile	(	AieTargetModel	targetModel,
		int	col,
		int	row
	)

Definition at line 59 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isShimNOCorPLTile().

◆ aieTargetModelIsShimNOCTile()

MLIR_CAPI_EXPORTED bool aieTargetModelIsShimNOCTile	(	AieTargetModel	targetModel,
		int	col,
		int	row
	)

Definition at line 51 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isShimNOCTile().

◆ aieTargetModelIsShimPLTile()

MLIR_CAPI_EXPORTED bool aieTargetModelIsShimPLTile	(	AieTargetModel	targetModel,
		int	col,
		int	row
	)

Definition at line 55 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isShimPLTile().

◆ aieTargetModelIsSouth()

MLIR_CAPI_EXPORTED bool aieTargetModelIsSouth	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row
	)

Definition at line 84 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isSouth().

◆ aieTargetModelIsWest()

MLIR_CAPI_EXPORTED bool aieTargetModelIsWest	(	AieTargetModel	targetModel,
		int	src_col,
		int	src_row,
		int	dst_col,
		int	dst_row
	)

Definition at line 69 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::isWest().

◆ aieTargetModelRows()

MLIR_CAPI_EXPORTED int aieTargetModelRows ( AieTargetModel targetModel )

Returns the number of rows in the target model.

Definition at line 39 of file TargetModel.cpp.

References xilinx::AIE::AIETargetModel::rows().

◆ DEFINE_C_API_STRUCT()

DEFINE_C_API_STRUCT	(	AieTargetModel	,
		uint64_t
	)

Macros

Functions
