Kria™ KR260 Robotics Starter Kit

Machine Vision Camera Tutorial

10GigE Machine Vision Defect Detect Application Deployment

Introduction to the Test Environment

This document shows how to set up the board and run the MV-Defect Detect and 10GigE applications.

Hardware Requirements

  1. KR260 Robotics Starter Kit

  2. KR260 Power Supply & Adapter (Included with KR260 Robotics Starter Kit)

  3. Cat 5e Ethernet Cable (Included with KR260 Robotics Starter Kit)

  4. USB-A to micro-B Cable (Included with KR260 Robotics Starter Kit)

  5. 16GB MicroSD Cards (Included with KR260 Robotics Starter Kit)

  6. 1080p Monitor and Power Supply

  7. Display Port Cable

  8. 1-Windows PC, for capturing the UART/console logs from KR260 board, and to act as host PC

  9. Fiber Optic Cable

  10. Sony IMX547 Monochrome Camera sensor Module OR Sony IMX547 Color Camera sensor Module

  11. 10G NIC Card

  12. Two 10G SFP+ Transceivers

Setting Up the Live Source for Defect-Detect

When setting up the SOM Board for the live camera source capturing mango image displayed on a monitor, adhere to the following guidelines:

  • Keep the IMX547 Camera module firmly held in a static position, preferably on a tripod and at a height of ~17 cm from the base.

  • IMX547 Camera module should be facing straight directly to the monitor(not at an angle) at an appropriate distance of ~35 cm from the screen.

  • According to the model of the monitor(Dell U2718Q Ultra Sharp 27 used here), set brightness and contrast to 94 and 85, respectively. Optimal values may be different for different make/model.

  • The setup should be covered completely so that no outside light is captured by the sensor.

  • To avoid over exposure of light, do NOT place the monitor opposite to an open door or window.

  • Ensure that the live source is able to capture the mango completely.

  • The camera should be focused ONLY on the mango image that was displayed.

  • The setup should be as follows:

    IMX547 Sensor Camera

    Note: The above setup should be covered completely so that no outisde light is captured by the sensor. In the setup above, a black cloth is used to cover the setup entirely. If the preview image is not satisfactory, adjust the above mentioned parameters. Adjust the camera aperture using the adjustment ring on the sensor lens. For Monochrome and Color sensor set it to 1.6 and 0.8 respectively.

Setting Up the Test Environment

Note: Ensure that the Gstreamer packages are installed on Linux PC. If Linux distribution is on Ubuntu, make sure its version is at least 16.04.

Download all the sample mango images from the Cofilab site to the Linux PC.

Note: If the file fails to download, copy the link and open in a new browser tab to download the file.

As the downloaded images are in a JPG format, convert them into the GRAY8 (Y8) or RGB (RGB) format using the following steps:

  1. Unzip the downloaded rar file.

  2. In the Linux PC, go to DB_mango.

  3. Clone the repo and navigate to scripts directory:

    git clone https://github.com/Xilinx/mv-defect-detect
    cd mv-defect-detect/scripts

  4. Copy the scripts to DB_Mango directory

  5. Run the scripts as follows:

    ./convert_jpeg_y8.sh >& file.txt     For GRAY8 format

    ./convert_jpeg_rgb.sh >& file.txt    For RGB format


    Once the above command is completed, the script produces input_video.y8 | input_video.rgb as input to the MV-Defect-Detect application.

  6. Copy the video from the Linux PC to the SOM board. If copied to an SD card, it can be found in /boot/firmware/<input_video.y8/rgb>. For containers to access the file, copy it to /tmp/ and containers can then also access it from its /tmp/ folder. Then copy it to /home/ directory in the container.

    Note: Delete all files except input_video.y8 or input_video.rgb.

The MV-Defect-Detect application’s design takes, processes, and displays images on to the monitor.

See Known Issues and Limitations with the MV-Defect-Detect application.

SOM Board setup

Refer to the following KR260 Board and Interface layout for connector reference numbers:

board interfaces

usb slot

  1. Go through the Booting Kria Starter Kit Linux to complete minimum setup required to boot Linux before continuing with the instructions in this page.

  2. Ensure that the board is powered off. Connect IMX547 Monochrome sensor module to J22 in KR260 using flex cable.

  3. Keep the KR260 board and sensor module firmly held in a static position.

  4. Connect the Ethernet cable from PS ethernet ‘J10C’ to local network with DHCP enabled to install packages.

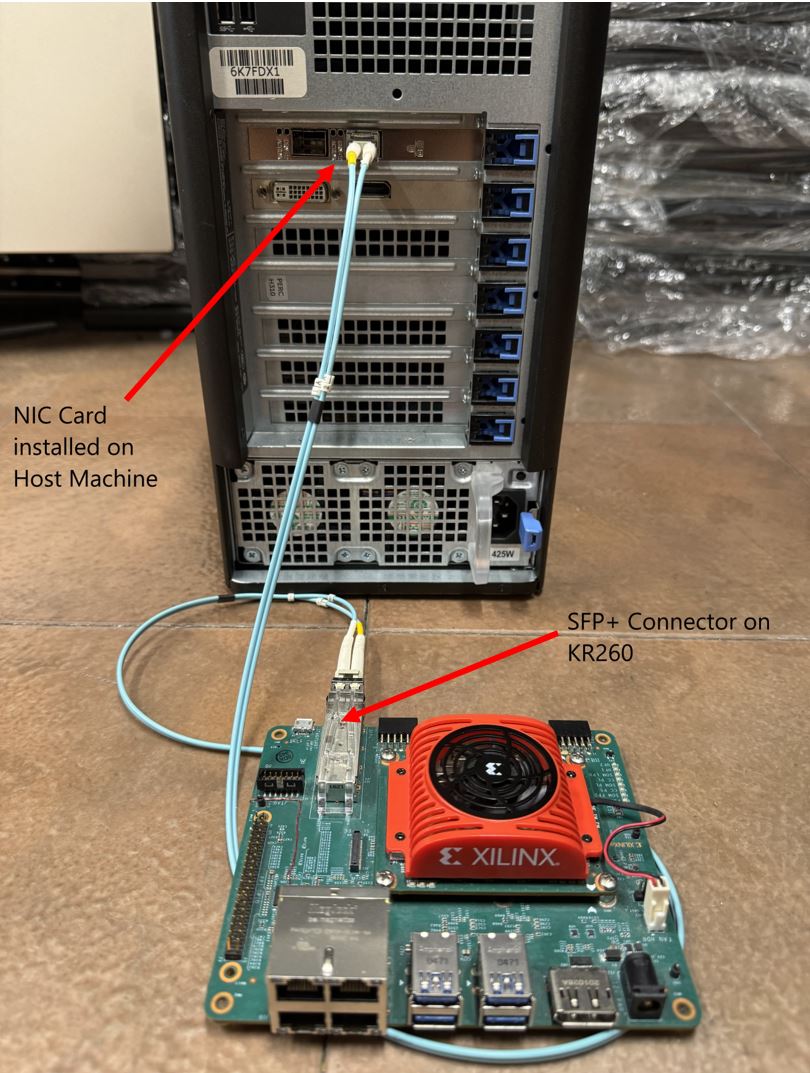

  5. Connect the fiber optic cable to SFP+ connector in the KR260 board, other end to host machine (Windows/Ubuntu) NIC card as follows:

    KR260 SFP+

Tested Artifacts

Testing was performed with the following artifacts:

Component Version
Boot Firmware K26-BootFW-01.01
Linux Kernel 5.15.0-1030
xlnx-firmware-kr260-mv-camera-mono 0.12-0xlnx2
xlnx-firmware-kr260-mv-camera-color 0.12-0xlnx2

Host Machine Setup

  • Check the available network interfaces before inserting the 10G NIC card using:

    • ifconfig -a for ubuntu host

    • ipconfig /all for windows host

  • Install the 10Gb PCIe NIC Network Card in the PCIe slot of host machine.

  • Connect the fiber optic cable one end to the NIC card in host machine and the other end to the KR260 board SFP+ connector.

  • The newly inserted NIC card shows the new interface in the host machine. You can run the same command to verify that:

    • ifconfig -a for ubuntu host

    • ipconfig /all for windows host

Note: On windows host, ensure that the network related drivers are installed from the link, before running the Host Sphinx application.

Note: Ensure that the 10GigE interface is enabled on the Host PC before loading MV-Camera application firmware.

Installing the Application packages

Make sure that you had gone through Booting Kria Starter Kit Linux as indicated in the previous step to complete the minimum setup required to boot Linux before continuing with instructions in this page.

Install the latest application packages.

  1. Get the list of available packages in the feed:

      sudo xmutil getpkgs

  2. Install either mono/color application firmware package based on the image sensor that you want to use.

      sudo apt install xlnx-firmware-kr260-mv-camera-mono     //For Monochrome Sensor
      sudo apt install xlnx-firmware-kr260-mv-camera-color    //For Color Sensor

  3. Install qv4l2, GUI like test bench application for video4linux devices, which can be used to tune the sensor/ISP parameters as an alternative to standard v4l2-ctl commands

      sudo apt install qv4l2


    Note: The default sensor/ISP parameters are set to defect-detection mode, which uses a completely covered setup and blocks sensor from capturing any natural light. Please tune the sensor/ISP settings, via v4l2 commands or GUI, to optimal values based on your lighting conditions for 10Gige or defect-detect in bypass mode. The process to tune the settings are outlined in the “Sensor Calibration for the Live Source” further below.

Docker based application preparation

  • Pull the latest docker image for mv-defect-detect using the following command.

      sudo docker pull xilinx/mv-defect-detect:2022.2

  • Find the images installed with the following command:

      sudo docker images


Firmware Loading

The MV-Camera application firmware consists of bitstream (bit.bin) and device tree overlay (dtbo). The MV-Camera firmware is loaded dynamically on the user request once the ubuntu system is fully booted. Use the xmutil utility to list and load the firmware.

Note: xmutil utility runs only in Ubuntu.

Dynamically load the application firmware:

  • Disable the desktop environment:

       sudo xmutil desktop_disable


    Note: Executing “xmutil desktop_disable” causes the desktop on the monitor to be disabled. Use any serial terminal to continue issuing Linux commands via port J4 and do not rely completely on the desktop environment.

    After running the application, the desktop environment can be enabled again with:

       sudo xmutil desktop_enable

  • After installing the FW, execute xmutil listapps to verify that it is captured under the listapps function, and to have dfx-mgrd re-scan and register all accelerators in the FW directory tree.

      sudo xmutil listapps

  • To list the available accelerator applications, run:

      sudo xmutil listapps


Note: The Active_Slot column shows the application firmware that is currently loaded in the system. The value ‘-1’ indicates that the firmware is not loaded, while the value of ‘0’ indicates that the firmware is loaded. By default, only the k26-starter-kits firmware is loaded.

  • To load the MV-Camera application firmware, unload the existing firmware and then load either mono/color MV-Camera application firmware based on the sensor connected:

      sudo xmutil unloadapp
      sudo xmutil loadapp kr260-mv-camera-mono      //For Monochrome Sensor
      sudo xmutil loadapp kr260-mv-camera-color     //For Color Sensor


Launching the Docker

  • Launch the docker using the below command. The firmware must be loaded before launching the docker container.

        sudo docker run \
          --env="DISPLAY" \
          --env="XDG_SESSION_TYPE" \
          --net=host \
          --privileged \
          --volume /tmp:/tmp \
          --volume="$HOME/.Xauthority:/root/.Xauthority:rw" \
          -v /dev:/dev \
          -v /sys:/sys \
          -v /etc/vart.conf:/etc/vart.conf \
          -v /lib/firmware/xilinx:/lib/firmware/xilinx \
          -v /run:/run \
          -h "xlnx-docker" \
          -it xilinx/mv-defect-detect:2022.2 bash

  • It launches the mv-defect-detect docker image container.

    root@xlnx-docker/#

Running the 10GigE Application on Target

The only way to invoke the application is by command line.

Note: Docker starts with the root user access. Only one instance of the application can run at a time. Only 2472 x 2128 @122fps – 10bpp configuration is validated.

To run the application, follow the steps mentioned below:

  1. Run the configure script to configure the media nodes and the IPs in the capture path.

      configure -f mono -r 60         //For Monochrome Sensor at 60fps
      configure -f color -r 60        //For Color Sensor at 60fps


    *NOTE: Valid values for -r are 60 and 120. If user does not specify the rate, default value is set to 60 fps.

  2. Set Static IP address on the SFP eth interface on the KR260. It should be under same subnet as Host Machines SFP IP

      #Example
      busybox ifconfig eth2 down
      busybox ifconfig eth2 192.168.0.19

  3. Run the eeprom wrapper script.

      update_eeprom_wrapper


    It asks the user to give a few inputs and gets the following logs (the size of the following xml file might vary):

    Update eeprom

    file: xgvrd-kr260.xml
    size: 113757


    Note: Always select 1 in the Network configuration below.

    1: 0xFEC00000 (MVDK + ZX5/XU1 / ZC702 / ZC706 / ZCU102)
    2: 0xFFA10000


    Then, you can select the type of network:

      1: dhcp
      2: static ip


    Note: Select 1 or 2 based on the user network configuration (static or dynamic). If you opt for the static option, enter the following details as well. Below are the example values for the reference.

    Input ip address (xxx.xxx.xxx.xxx): 192.168.0.19

    Input netmask (xxx.xxx.xxx.xxx): 255.255.255.0

    Input gateway (xxx.xxx.xxx.xxx):192.168.0.20

  4. Run the following command and get the interface name, which has memory address like memory 0xa0060000-a006ffff.

    a. ifconfig -a

        eth2: flags=3<UP,BROADCAST>  mtu 1500
        inet 192.168.0.19  netmask 255.255.255.0  broadcast 192.168.0.255
        ether 00:0a:35:00:22:02  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 8  bytes 1156 (1.1 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
        device interrupt 66  memory 0xa0060000-a006ffff


    Keyword memory 0xa0060000-a006ffff belongs to eth2 port. This interface information is required to feed while running gvrd application on target.

  5. Run the gst-launch command in the background to trigger the pipeline.

    For 60 fps, run either the following gst launch command or mv-defect-detect application.

      #For Monochrome Sensor
      gst-launch-1.0 v4l2src device=/dev/video0 io-mode=4 ! video/x-raw, width=1920, height=1080, format=GRAY8, framerate=60/1 !  queue ! fakevideosink -v &

      #For Color Sensor
      gst-launch-1.0 v4l2src device=/dev/video0 io-mode=4 ! video/x-raw, width=1920, height=1080, format=RGB, framerate=60/1 !  queue ! fakevideosink -v &


    For 120 fps, run the following commands:

    Note: MV-Defect-Detect application does not support 120 fps.

      #For Monochrome Sensor
      gst-launch-1.0 v4l2src device=/dev/video0 io-mode=4 ! video/x-raw, width=1920, height=1080, format=GRAY8, framerate=120/1 !  queue ! fakevideosink -v &

      #For Color Sensor
      gst-launch-1.0 v4l2src device=/dev/video0 io-mode=4 ! video/x-raw, width=1920, height=1080, format=RGB, framerate=120/1 !  queue ! fakevideosink -v &


    Note: Make sure to terminate the gst-launch process before unloading xlnx-app-kr260-mv-camera.

  6. Run the following command to run the gvrd application.

    gvrd <10gige port detail> <mono|color>


    For example, gvrd eth2 mono, gvrd eth2 color.

    Note: Once done with the 10GigE application, to switch to another accelerator application, unload the currently loaded accelerator application firmware by running:

    sudo xmutil unloadapp

  7. On Host PC to run the Sphinx application:

    Sphinx GEV Viewer can be downloaded from here along with Sphinx GEV Viewer user guide link to run the Sphinx application.

    Prerequisites:

    a). If you are setting the IP statically, make sure that both KR260 and host machine should be on the same network class address.

    • On ubuntu : sudo ifconfig <10G network interface> up

      For Example: sudo ifconfig enp23s0 192.168.0.10 up

    • On Windows : Set from network settings – IPv4 IP

    b). To change the MTU Size, follow the procedure as mentioned below:

    • For ubuntu : sudo ifconfig <10G network interface> mtu 9014 up

      For Example: sudo ifconfig enp23s0 mtu 9014 up

    • For Windows :

      • Go to settings, navigate to control panel, and select Network and Sharing Centre,

      • Select Change adapter settings,

      • Right click on the NIC interface on which the place to enable Jumbo Frames and select Properties,

      • From the NIC properties, select Configure,

      • Click on Advanced tab,

      • In Advanced section, select Jumbo Frame,

      • In the Value field Value – select 9KB MTU s.

    c). Sphinx GEV Viewer GUI start-up window should look something like below image. If all the control elements are not visible, you can reduce the size of text, apps and other items in the Display settings.

    GUI-Window

    d). On the Sphinx GUI click on Discovery to establish a connection from KR260 over SFP. Then click on Discovery –> Open

    Sphinx_Discovert

    e). To get the maximum fps in the Sphinx GUI, you can change the draw value in Sphinx –> Options based on the host type (windows or ubuntu)

    • On ubuntu host,

      For 60 fps, set the draw value to 10.

      For 120 fps, set the draw value to 50.

    • On windows host,

      For 60/120 fps, set the draw value to 10.

      Sphinx GE Viewer

    f). Download xgvrd-kr260.xml into the host machine. In sphinx GEV viewer application, set the downloaded xml file path in the GUI.

    g). In Sphinx host application, select Use filter Driver checkbox, and Grab checkbox to capture the frames from KR260 10GigE network.

Sphinx GEV Viewer Observations

  • For 60 fps on a Monochrome Sensor

    60fps_mono

  • For 120 fps on a Monochrome Sensor

    120fps_mono

NOTE: You will record ~40-50 fps for a 60 fps pipeline and ~90-100 fps for a 120 fps pipeline.

  • For 60 fps on a Color Sensor

    60fps_color

  • For 120 fps on a Color Sensor

    120fps_color

NOTE: You will record ~25-35 fps for a 60 fps pipeline and ~75-95 fps for a 120 fps pipeline. Since we are transmitting Raw Bayer Format from Kria to X86 Host, that needs to be debayered by X86 Host and converted to RGB for displaying which consumes additional compute time, hence the fps drop.

Running the MV-Defect-Detect Application

Follow the procedure mentioned below to invoke the MV-Defect-Detect application.

Command Line

Use the command line to set the resolution, configuration file path, and more, using the mv-defect-detect application.

More combinations could be made based on the options provided by the mv-defect-detect application.

Note: ‘demomode’ application option is not supported for File sink. It is only supported for live out.

MV-Defect-Detect Application Usage

mv-defect-detect --help

Usage:

mv-defect-detect [OPTION?] - Application to detect the defect of Mango on the AMD board.

Help Options:

  -?, --help                        Show help options

  --help-all                        Show all help options

  --help-gst                        Show GStreamer Options

Application Options:

-i, --infile=file path                                                   Location of input file
-f, --outfile=file path                                                  Location of output file
-s, --sensor-fmt                                                         Sensor format i.e mono or color
-w, --width=1920                                                         Resolution width of the input
-h, --height=1080                                                        Resolution height of the input
-o, --output=0                                                           Display/dump stage on DP/File
-r, --framerate=60                                                       Framerate of the input source
-d, --demomode=0                                                         For Demo mode value must be 1
-c, --cfgpath=/opt/xilinx/xlnx-app-kr260-mv-defect-detect/share/vvas/    JSON config file path

The application is targeted to run an input source that supports GRAY8 (Y8) or RGB (RGB) format with a resolution of 1920x1080.

Once done with the MV-Defect-Detect application, To switch to another accelerator application after mv-defect-detect application, first exit the docker container using exit, then unload the firmware by running the below command:

sudo xmutil unloadapp

Command Examples for Monochrome sensor

Examples: Follow the below examples for different use cases of the above mentioned command options.

Note: Only one instance of the application can run at a time.

  • For File-In and File-Out mode, run the following command.

Command Description
mv-defect-detect -i input.y8 -o 0 -f out_raw.y8 -s mono Raw output dumps into file.
mv-defect-detect -i input.y8 -o 1 -f out_preproc.y8 -s mono Pre-process output dumps into file.
mv-defect-detect -i input.y8 -o 2 -f out_final.y8 -s mono Final output dumps into file.

Note: File-In and File-Out demo mode is not supported. To playback the generated output video files run any of the below example commands:

  mv-defect-detect -i out_raw.y8 -o 0 -d 1 -s mono       //Input file path should change as per the requirement
  mv-defect-detect -i out_preproc.y8 -o 0 -d 1 -s mono   //Input file path should change as per the requirement
  mv-defect-detect -i out_final.y8 -o 0 -d 1 -s mono     //Input file path should change as per the requirement
  • For File-In and Display-Out, run the following command.

Command Description
mv-defect-detect -i input.y8 -o 0 -d 1 -s mono Raw output displays on DP.Input file path should change as per the requirement.
mv-defect-detect -i input.y8 -o 1 -d 1 -s mono Preprocess output displays on DP. Input file path should change as per the requirement.
mv-defect-detect -i input.y8 -o 2 -d 1 -s mono Final output displays on DP. Input file path should change as per the requirement.
  • For Live-In and File-Out mode, run the following command.

Command Description
mv-defect-detect -o 0 -f out_raw.y8 -s mono Raw output dumps into file.
mv-defect-detect -o 1 -f out_preproc.y8 -s mono Preprocess output dumps into file.
mv-defect-detect -o 2 -f out_final.y8 -s mono Final output dumps into file.

Note: Live-In and File-Out demo mode is not supported. To playback the generated output video files run any of the below example commands:

  mv-defect-detect -i out_raw.y8 -o 0 -s mono       //Input file path should change as per the requirement
  mv-defect-detect -i out_preproc.y8 -o 0 -s mono   //Input file path should change as per the requirement
  mv-defect-detect -i out_final.y8 -o 0 -s mono     //Input file path should change as per the requirement
  • For Live-In and Display-Out mode, run the following command.

Command Description
mv-defect-detect -o 0 -s mono Raw output displays on DP.
mv-defect-detect -o 1 -s mono Preprocess output displays on DP.
mv-defect-detect -o 2 -s mono Final output displays on DP.

Command Examples for Color Sensor

Examples: Follow the below examples for different use cases of the above mentioned command options.

Note: Only one instance of the application can run at a time.

  • For File-In and File-Out mode, run the following command.

Command Description
mv-defect-detect -i input.rgb -o 0 -f out_raw.rgb -s color Raw output dumps into file.
mv-defect-detect -i input.rgb -o 1 -f out_preproc.y8 -s color Pre-process output dumps into file.
mv-defect-detect -i input.rgb -o 2 -f out_final.y8 -s color Final output dumps into file.

Note: File-In and File-Out demo mode is not supported. To playback the generated output video files run any of the below commands:

mv-defect-detect -i out_raw.y8 -o 0 -d 1 -s color       //Input file path should change as per the requirement
mv-defect-detect -i out_preproc.y8 -o 0 -d 1 -s mono    //Input file path should change as per the requirement
mv-defect-detect -i out_final.y8 -o 0 -d 1 -s mono      //Input file path should change as per the requirement
  • For File-In and Display-Out, run the following command.

Command Description
mv-defect-detect -i input.rgb -o 0 -d 1 -s color Raw output displays on DP. Input file path should change as per the requirement.
mv-defect-detect -i input.rgb -o 1 -d 1 -s color Preprocess output displays on DP. Input file path should change as per the requirement.
mv-defect-detect -i input.rgb -o 2 -d 1 -s color Final output displays on DP. Input file path should change as per the requirement.
  • For Live-In and File-Out mode, run the following command.

Command Description
mv-defect-detect -o 0 -f out_raw.rgb -s color Raw output dumps into file.
mv-defect-detect -o 1 -f out_preproc.y8 -s color Preprocess output dumps into file.
mv-defect-detect -o 2 -f out_final.y8 -s color Final output dumps into file.

Note: Live-In and File-Out demo mode is not supported. To playback the generated output video files run any of the below commands:

  mv-defect-detect -i out_raw.y8 -o 0 -s color       //Input file path should change as per the requirement
  mv-defect-detect -i out_preproc.y8 -o 0 -s mono    //Input file path should change as per the requirement
  mv-defect-detect -i out_final.y8 -o 0 -s mono      //Input file path should change as per the requirement
  • For Live-In and Display-Out mode, run the following command.

Command Description
mv-defect-detect -o 0 -s color Raw output displays on DP.
mv-defect-detect -o 1 -s color Preprocess output displays on DP.
mv-defect-detect -o 2 -s color Final output displays on DP.

Sensor Calibration for the Live Source

  • You can use v4l2 utilities to tune various sensor parameters. For example:

    v4l2-ctl -d /dev/video0 -L                      List all available parameters to tune

    v4l2-ctl -d /dev/video0 -c exposure=10000       Tune and set the exposure to some value

    v4l2-ctl -d /dev/video0 -c black_level=150      Tune and set the black_level to some value

    v4l2-ctl -d /dev/video0 -c gain=250             Tune and set the gain to some value

    v4l2-ctl -d /dev/video0 -c red_gain=250         Tune and set the red_gain to some value

  • Alternatively, you can also use qv4l2 to tune the sensor parameters through a GUI.

  • To use qv4l2, the command should run over an SSH connection with X-forwarding enabled.

  • On Host, run:

    ssh -X ubuntu@<Kria Starter Kit IP address>


    NOTE: If all ethernet cables are plugged in, feel free to use any IP.

  • On Windows, download Mobaxterm, which automatically enables X-forwarding when creating a new ssh connection.

  • Verify if the SSH terminal is using the correct authority file.

    • The output should look something like this.

    ubuntu@kria:~$ xauth -v list
    Using authority file /home/ubuntu/.Xauthority
    kria/unix:10  MIT-MAGIC-COOKIE-1  f5212118305f75678a69daa4a6eda703

    • If incorrect or no authority file is present, do the following steps:

    ubuntu@kria:~$ rm -rf ~/.Xaut*

    • Reboot the target board.

    ubuntu@kria:~$ sudo reboot

    • Check the xauth -v list after reboot(in SSH terminal), it should display the correct authority file on the output console.

  • You can now run the following command on SSH side to open up the qv4l2 GUI.

    ubuntu@kria:~$ qv4l2 -d /dev/video0
    Using mplane plugin for capture

  • Use the GUI to tune the sensor/ISP params:

    QV4l2

File Structure of the MV-Defect-Detect Application

The application is comprised of the following files:

Below files are present in the app directory:

/opt/xilinx/xlnx-app-kr260-mv-defect-detect/

File name Description
bin/ Contains the binaries for MV-Defect-Detect application
lib/ Contains the shared libraries for MV-Defect-Detect application
share/vvas/ Contains the configuration files for vvas accelerators
README_MV_DEFECT_DETECT Contains the application information

Below files are present in bin directory:

/opt/xilinx/xlnx-app-kr260-mv-defect-detect/bin/

File name Description
update_atable Application to create config file atable
update_eeprom Application to create config file eeprom
alloc_table.bin Data file used by update_atable application
zcip Zero configure network interface to configure IPv4
zcip.script Used for ZeroConf IPv4 link-local address (the "auto ip aliasing" feature)
xgvrd-kr260.xml xml containing the GenICam register description
gvrd Application executable
eeprom.bin Data file used by update_eeprom application
configure Script to configure media nodes and IPs in capture path
update_eeprom_wrapper Wrapper file to configure 10GigE pipeline
mv-defect-detect Binary for mv-defect-detect application

Below files are present in lib directory:

/opt/xilinx/xlnx-app-kr260-mv-defect-detect/lib/

File name Description
libgigev.so.2.0.1 Contains the GigE Vision core firmware
libgigev.so.2.0 Contains the symbolic link to libgigev.so.2.0.1
libgigev.so Contains the Symbolic link to libgigev.so.2.0
libvvas_preprocess.so vvas pre-process accelarator library
libvvas_otsu.so vvas OTSU accelerator library
libvvas_cca.so vvas CCA accelerator library
libvvas_text2overlay.so vvas text2overlay library

There are two sets of json files present, one set for mono and other for color. Below are the paths and the files present:

/opt/xilinx/xlnx-app-kr260-mv-defect-detect/share/vvas/mono and /opt/xilinx/xlnx-app-kr260-mv-defect-detect/share/vvas/color

File name Description
cca-accelerator.json Configuration of CCA accelerator
cca-accelerator-stride.json Configuration of CCA accelerator with stride
otsu-accelarator.json Configuration of OTSU accelerator
preprocess-accelarator.json Configuration of pre-process accelarator
preprocess-accelarator-stride.json Configuration of pre-process accelarator with stride
text2overlay.json Configuration of text2overlay
